kaidi KD UTD series Intelligent Float Liquid (boundary) Level Transmitter IP66 Accuracy 0.5 level
UTD type intelligent float liquid (boundary) level transmitter
Application:
measure liquid level, interface level or density
Measuring Range:
300mm~2500mm (can be produced beyond the range)
Protection Grade:
IP66
Accuracy:
0.5level
Process Temperature:
-70℃~+400℃
Explosion proof certification:
flameproof type ExdⅡCT6, intrinsically safe type ExiaⅡCT6
MOQ
1 SET
Payments:
TT, Paypal, Credit card, Western union
Shipping ways:
Express(DHL,Fedex,TNT,EMS,UPS)/Air/Sea
Ambient Temperature:
-40℃~+80℃ (when ≤-30℃, the liquid crystal has no display)
参数暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

UTD intelligent float liquid (interface) level transmitter can be used to measure liquid level, interface level or density, and output 4-20mA+HART signal. Through the HART communicator compatible with the DLC3000 series of intelligent liquid level controllers, the intelligent liquid level controller can be inquired, configured, calibrated or tested. It can also accept the information of a single control loop and download the information from the scene to the control. In the system. Working principle: UTD intelligent buoy liquid (boundary) level transmitter is composed of imported original DLC3000 series intelligent liquid level controller and measuring chamber, measuring mechanism, buoy, torque tube assembly, etc. Tested media

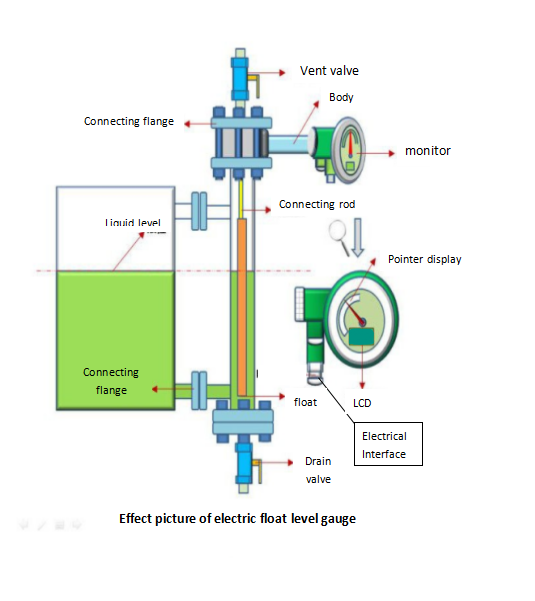

UTD type intelligent float liquid (boundary) level transmitter is composed of imported original DLC3000 series intelligent liquid level controller and measuring chamber, measuring mechanism, float, torque tube assembly and so on. The change in the liquid level of the measured medium causes a change in the force position of the pontoon, which is transmitted to the torsion tube assembly, so that the torsion tube and the mandrel rotate synchronously. At the same time, the magnetic steel component fixed on the torsion tube core shaft undergoes rotational displacement, which changes the magnetic field detected by the Hall effect sensor. The sensor converts the magnetic field signal into an electrical signal. The DLC3000 series of intelligent liquid level controllers use the controller and related electronic circuits to measure process variables, provide current output, drive liquid crystal displays (LCD) and provide HART communication capabilities. The controller receives the environmental temperature compensated and linearized electrical signal, and can also compensate for the change in liquid density caused by the process temperature change, and output and provide a 4-20mA current output signal. LCD can display analog output, process variables, process temperature (if RTD is installed), torque tube rotation angle and variable percentage range, etc.


Power supply voltage: 1230V DC; there is reverse polarity protection in the controller (controller voltage 17.75 V DC during HART protocol communication)



Output signal: 420mA DC (positive action-increase the level, interface or density to increase the output; or negative action-increase the level, interface or density to decrease the output)



Measuring range: 300mm2500mm (can be produced beyond the range)



Nominal pressure: 42.0Mpa



Nominal diameter: DN40 or according to customer requirements.



Ambient temperature: -40℃~+80(when -30, the liquid crystal has no display)



Working temperature: -70℃~+400



Measurement accuracy: 0.5 level



Power supply influence: When the power supply changes between the minimum and maximum values of the specified voltage, the output change <±0.2% of full scale



Liquid crystal display: output current signal, process variable, process temperature, percentage range, torque tube rotation angle

Medium density difference: 0.08g/cm3



Torque tube material: Standard configuration Inconel600, optional Monel, HasetlloyC-276



Material of measurement chamber: carbon steel, 304, 316L or according to user requirements



Float material: 304, 316L or according to user requirements



Flange standard: HG/T20592-2009, HG/T20615-2009 or according to user requirements



Power inlet: 2 NPT1/2 (internal thread) or according to user requirements



Explosion-proof type: flameproof type ExdCT6, intrinsically safe type ExiaCT6



Protection level: IP66



Alarm jumper: self-diagnosis for faults with inaccurate measurement of process variables (such as electronic module faults). The high and low alarms of the process variable can be configured.


Modelillustrate
UTKYafeng float level controller
Installation formCSide loadingDTop loading
Pressure rating (MPa)1PN1.0MPa16PN16.0MPa
1.6PN1.6MPa2CL150LB
2.5PN2.5MPa5CL300LB
4PN4.0MPa11CL600LB
6.3PN6.3MPa15CL900LB
10PN10.0MPa26CL1500LB
Range-densityRange mm- Density g/cm 3
Top flange materialP304
PL316L
P1321
Float materialP304
PL316L
Tititanium
Explosion-proof typeOmitNo
bExplosion-proof
aIntrinsically safe
AccessoriesOmitNo
WOuter pontoon
DGuide tube
Outer float materialCCarbon steel
P304
PL316L
P1321
Outer float side flange material20DN20
25DN25
32DN32
40DN40
50DN50
65DN65
80DN80
100DN100
Outer float side flange sealing surfaceOmitRaised face
FConvex
FMConcave
FFFull plane
RJRing connection surface



Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch





Our technical team will check your specifications and make a best solution for you.
