By-Pass Level Indicator with High accuracy 4-20mA Transmitter SUS316

Outer Covering：:

5-10 days

Process temperature:

1 SET

MOQ:

1 SET

Shipping ways:

Express(DHL,Fedex,TNT,EMS,UPS)/Air/Sea

Inquiry

Write a Review

PRODUCT INTRODUCTION

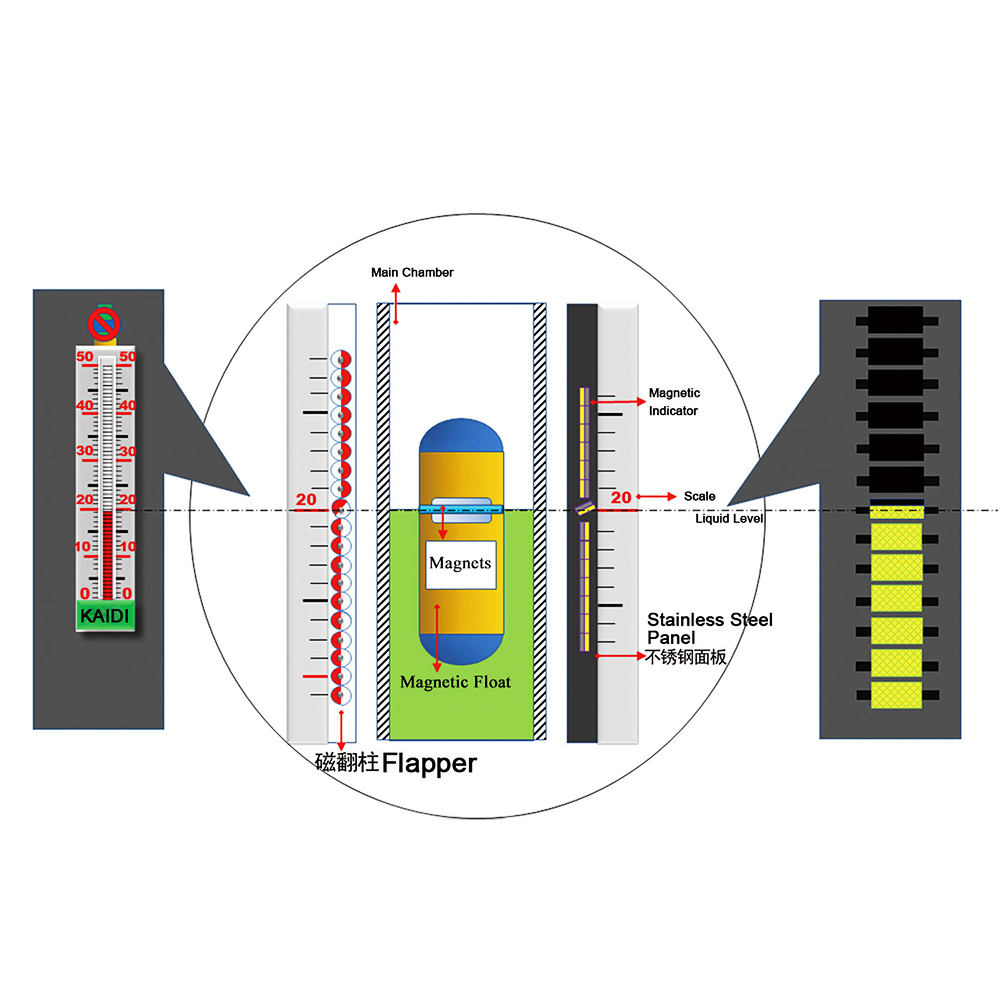

The magnetic flap level gauge is digested and improved according to similar products at home and abroad, and is developed and produced according to the magnetic level gauge standard HG/T21584-95 issued by the original Ministry of Chemical Industry. The instrument can be used for medium liquid level detection of various towers, tanks, tanks, spherical vessels and boilers.

Features

1. Wide application range, various installation forms, suitable for measurement of liquid level and interface of any medium.
2. The measured medium is completely isolated from the indicator structure, with good sealing performance, leak-proof, and suitable for liquid level measurement under high pressure, high temperature, and corrosion conditions, with high reliability.
3. It integrates on-site indication, remote transmission and transmission, and alarm control switch, and can be adjusted freely. It has complete functions. 　Two-color indication with luminous, continuous and intuitive, eye-catching, large measurement range, and observation direction can be changed at will.
4. Good vibration resistance, can work under the situation of large liquid level fluctuations 　Simple structure, easy installation and low maintenance cost.
5. With exquisite magnetic steel corrector, the technical parameters can be adjusted at will on site

By-Pass Level Indicator with High accuracy 4-20mA Transmitter SUS316 6

WIRING DIAGRAM & DRAWING

By-Pass Level Indicator with High accuracy 4-20mA Transmitter SUS316 7

By-Pass Level Indicator with High accuracy 4-20mA Transmitter SUS316 8

PRODUCT INSTALLATION

By-Pass Level Indicator with High accuracy 4-20mA Transmitter SUS316 9

Fitting Bolts

The level gauge must be installed vertically to ensure that the float assembly can move up and down in the main tube.

By-Pass Level Indicator with High accuracy 4-20mA Transmitter SUS316 10

Mounting Base

It is not allowed to have a magnet close to the main body of the liquid level gauge, otherwise it will directly affect the correct operation of the liquid level gauge.

By-Pass Level Indicator with High accuracy 4-20mA Transmitter SUS316 11

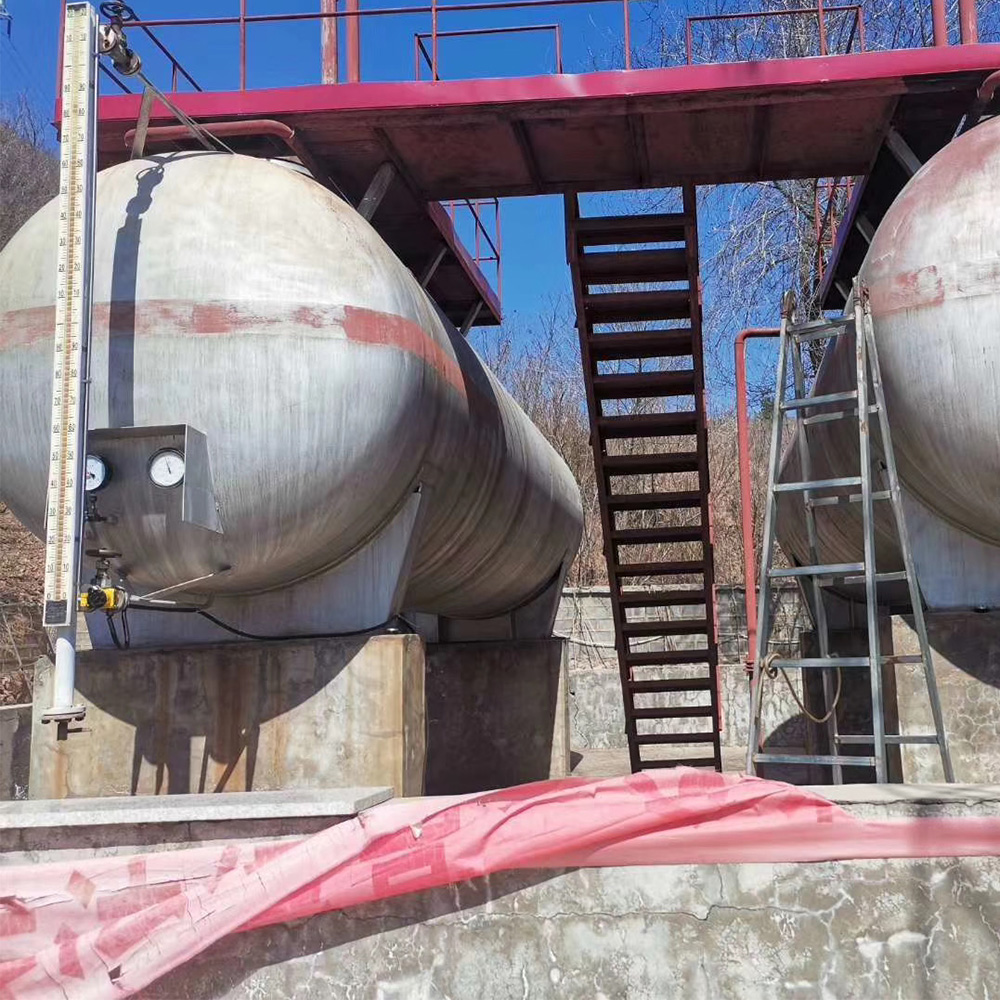

Installation

After the liquid level gauge is installed, it needs to be calibrated with magnetic steel to guide the turning column once so that the display below the zero position is red and the display above the zero position is white.

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.

More Model available for all appication, different termperture and pressure!

Get in touch with us

just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs.
