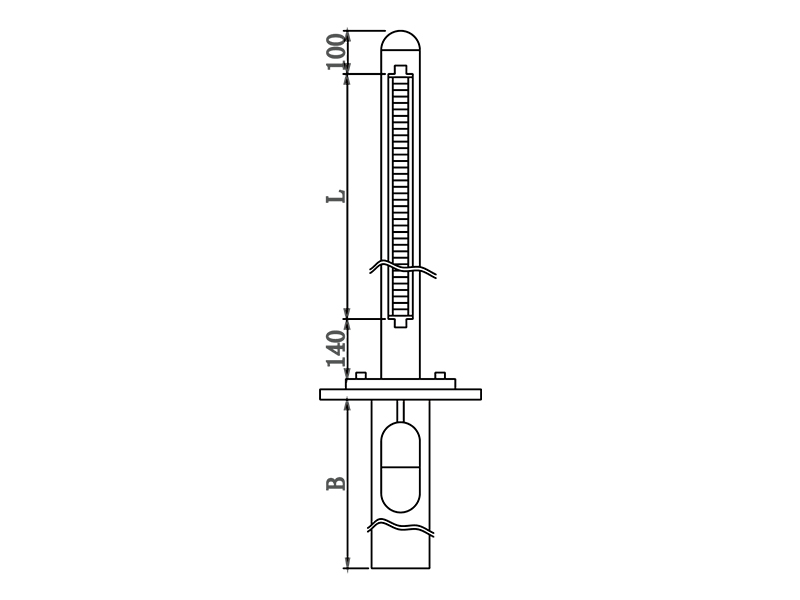

Magnetic level indicator installed at the top2

PRODUCT MEASUREMENT PRINCIPIE

A change of level in the process tank corresponds to a similar change within the KDMLI chamber. In response to the level movement, the KDMLI float moves accordingly, actuating the flags or shuttle for visual indication.

Features

Numerous chamber styles (or configurations) for each design. Custom designs available.

Complete range of level switches and level transmitters, including Eclipse Guided Wave Radar

Fabricated, non-magnetic chamber assembly produced in a wide range of metal and plastic materials

ANSI and EN 1092 process connections available

Precision manufactured float with internal magnets and magnetic flux ring

Flag or shuttle type indicator with stainless steel scale to measure height, volume, or percentage of level

Standard float stop springs at top and bottom of chamber

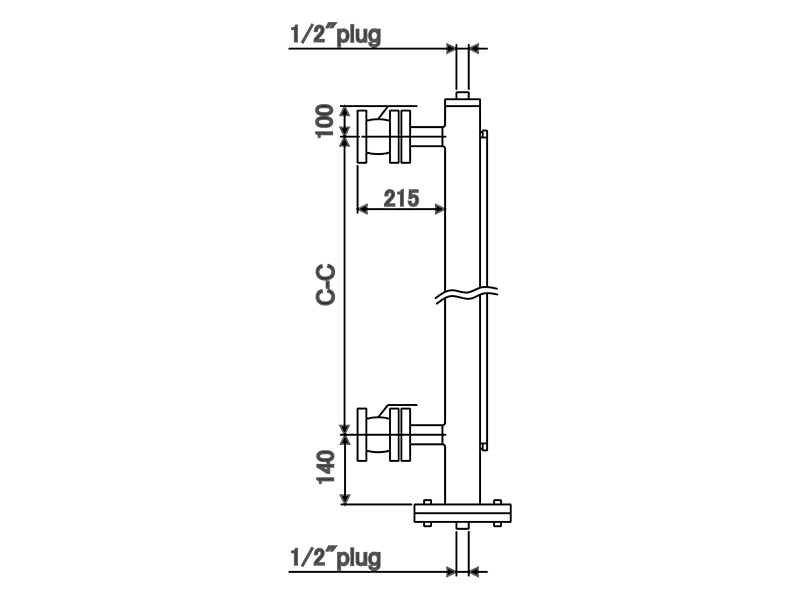

WIRING DIAGRAM & DRAWING

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.

More Model available for all appication, different termperture and pressure!
