Magnetic Level indicator with 2-4 sections Big size Storage Tank Long Range

PRODUCT INTRODUCTION

Based on the principle of magnetic coupling and buoyancy, the magnetic level gauge provides real-time measurement for level and interface.
HAWK’s Magnetic Level Gauge (MLG) is connected to a process vessel. Within the chamber is a float containing a 360° magnetic ring. Outside of the chamber is an indicator equipped with a vacuum glass tube, which contains a bicoloured two-face magnetic bargraph. In response to the level movement, the float moves accordingly, forcing the magnetic bargraph to turn and change color. True liquid level is indicated or “read” from the corresponding point on the measuring scale.

Features

Numerous chamber styles (or configurations) for each design. Custom designs available.
Complete range of level switches and level transmitters, including Eclipse Guided Wave Radar
Fabricated, non-magnetic chamber assembly produced in a wide range of metal and plastic materials
ANSI and EN 1092 process connections available
Precision manufactured float with internal magnets and magnetic flux ring
Flag or shuttle type indicator with stainless steel scale to measure height, volume, or percentage of level
Standard float stop springs at top and bottom of chamber

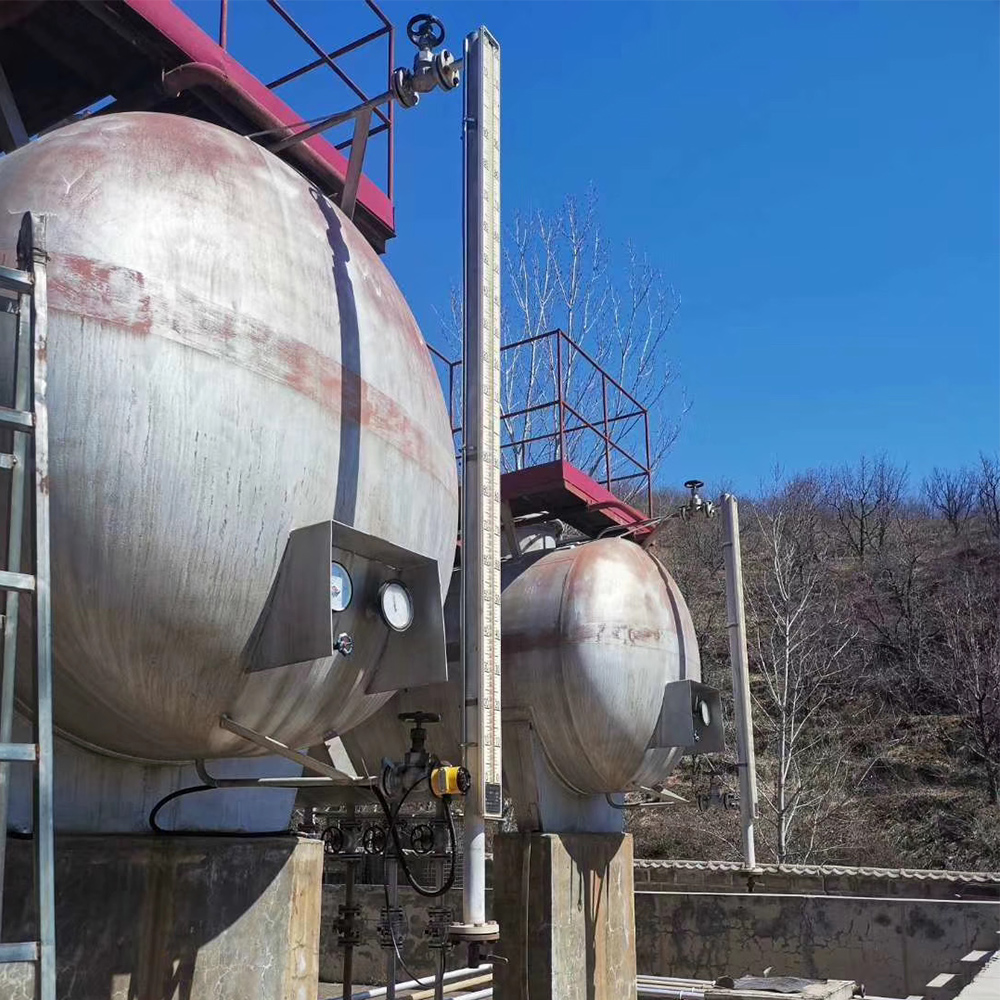

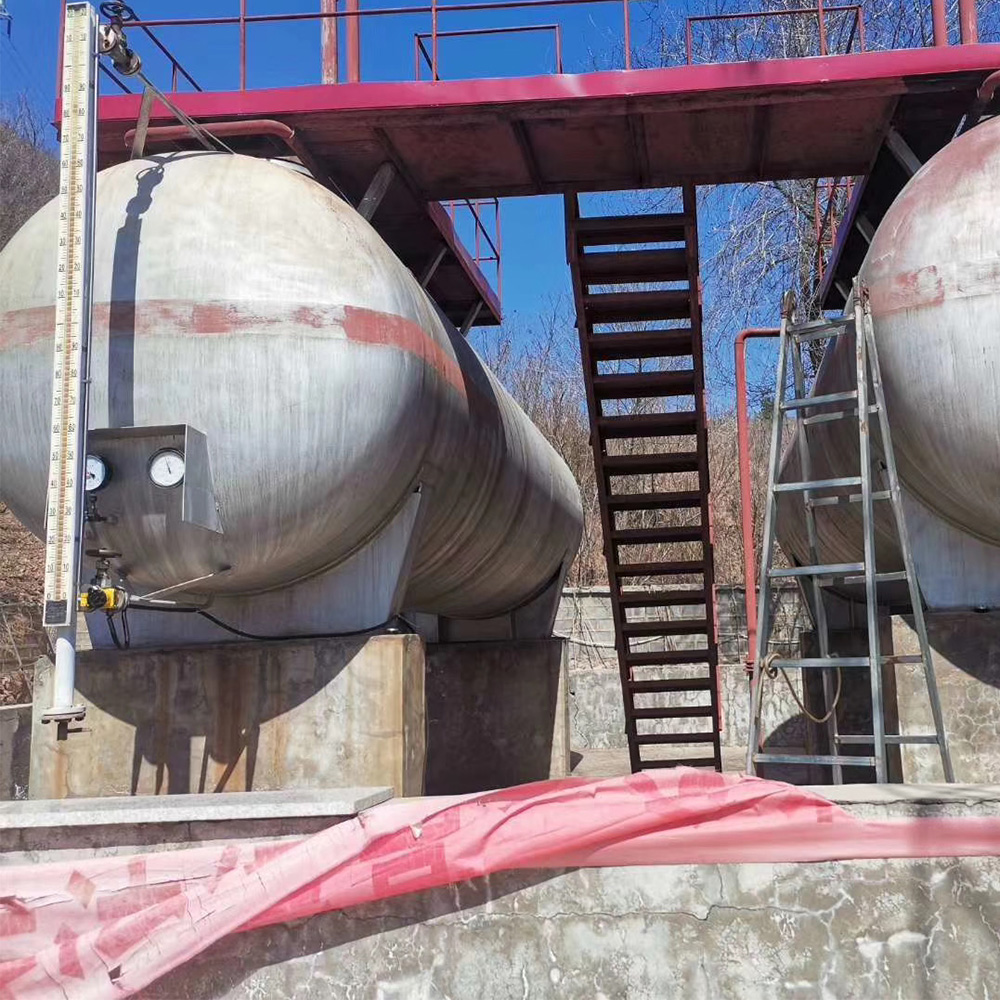

APPLICATION PHOTO

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.

More Model available for all appication, different termperture and pressure!
