Two-way Pull Cord Switch Emergency Stop Control Device

这里可以自定义设置

Two-Way Pull Cord Stop Switch Emergency Stop Control Device Automatic Reset and Manual Reset

B站不支持收货地址

B站不支持库存规格

Protection Grade：: IP67

Outer Covering：: 5-10 days

Process temperature:: 1 SET

Cable specifications: Φ6~12mm

Action reset: 5kgf

Contact type: 2C(2a2b)

reset mode: Automatic reset and manual reset

Allowable temperature: -25℃~+80℃

Quality of heavy hammer: About 1.8kg(DA Series)；About 5.4kg(DA Series)

MOQ: 1 SET

Shipping ways:: Express(DHL,Fedex,TNT,EMS,UPS)/Air/Sea

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

PRODUCT INTRODUCTION

KPC25-KD

Conveyor Pull Cord Safety Switch

Emergency pull cord switch is a protection switch used for emergency stop pull cord switch. When an emergency occurs on the belt conveyor, the staff can start the pull cord stop switch at any position along the conveyor and stop the belt immediately to prevent the expansion of the accident. This product is easy to install, reliable performance, It is widely used in the field of belt conveyor.

The conveyor pull cord switches are actuated by a plastic coated steel wire, which are placed along-side the conveyor.When you pull on the cable at any point, it will trip and automatically lock the conveyor safety switches, deenergizing the conveyor starter contactor.

Each conveyor safety switch is bi-directional in operation and has two cable fitted to it from opposite directions terminated with a spring at the anchor points,
After tripping the mechanical latch can be released only on the switch itself by the reset lever.

Pull Cord Switch is a switch for emergency stop when an accident occurs around belt conveyors and transportation machinery. Mainly used for belt conveyors that transport raw materials at production sites. Since 1975, it has been a favorite in the field for many years.

PRODUCT CHARACTERISTIC

1.Adopt high-strength A-alloy precise die-casting shell, with strong impact resistant capability.

2.High protective degree of shell, good sealing property.

3.Double switching output, large contact capacity, sensitive action and reliable performance.

4.Plastic coated steel wire rope moisture proof, acid and alkali resistant, flame retardant

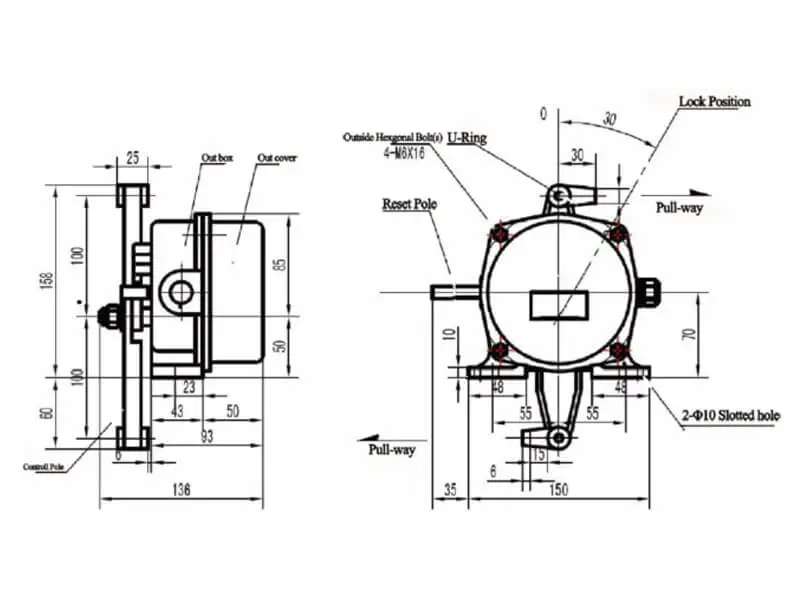

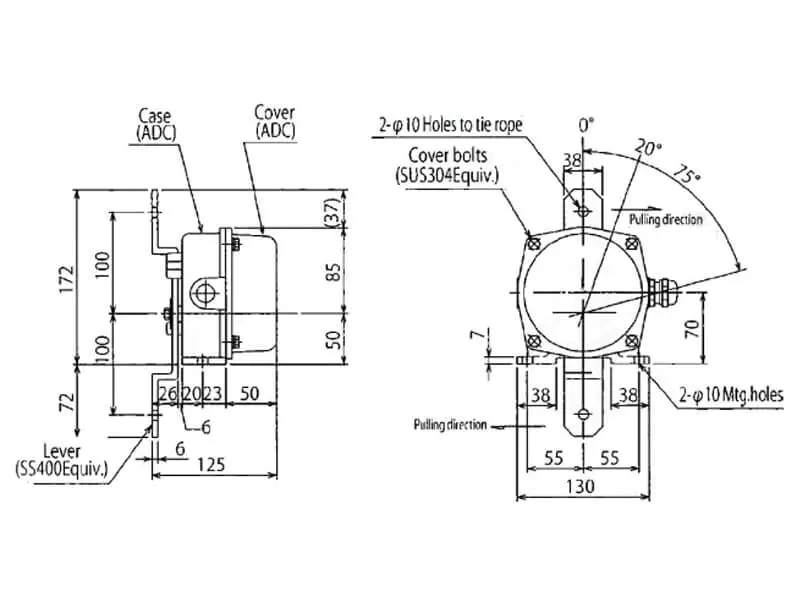

CONVEYOR PULL CORD SWITCH WIRING DIAGRAM&DRAWING

Wiring Diagram

Auto-Reset

Manual Reset

这里可以自定义设置

PRODUCT MAINTENANCE

Periodic Inspection

(1) Cleaning

Always clean when an excessive amount of dust accumulates on the touch roller.

(2) Wear of Touch Roller

Check wear of the touch roller . When 2 millimeters are worn off the roller, replace as explained in 6.3.

(3) Confirmation of Action

Check to see if the Belt Sway Switch is working normally by testing the touch roller.

Lubrication

The emergency pull cord switch has no need to lubricate.

Replacement of Touch Roller

By loosening the 12 millimeters-sized nut, the touch roller can be taken off easily from the lever.

Secure the nut when the touch roller is replaced, or the conveyor pull cord switch may cause trouble if the nut comes loose.

Tightening of Cover

When taking off the conveyor pull cord switchfor the sake of writing, adjusting and checking, secure the screws of the cover after working, or conveyor pull cord switch may cause trouble due to water and dust entering from between the cover and casing.

PULL CORD SWITCH INSTALLATION & APPLICATION

When it comes to emergency stop pull cord switch installation, attention to detail is key. Begin by selecting a suitable location for the switch, ensuring it is easily accessible and within reach. Next, carefully mark out the position of the mounting holes before securely attaching the conveyor protection switches to the wall or ceiling using appropriate screws. Take care to connect the wiring correctly, following manufacturer instructions and guidelines for safe installation. Once everything is in place, test the functionality of the pull cord switch to ensure it operates smoothly and effectively. Remember that proper installation is crucial for reliable performance and long-term durability of your electrical system. Trust in your skills and expertise to complete this task with precision and professionalism.

conveyor pull cord safety switch for below facilities.

Conveyor pull cord switch

Shuttle Conveyors

Bucket Elevators

Packaging Lines

Stockpile/Reclaim systems, Cranes, Shovels,

Draglines

Ship Loading / Unloading System

Horizontal Feed Systems
