SUS 316 stainless steel Belt Sway Switch conveyor safety device

这里可以自定义设置
SUS 316  stainless steel Belt Sway Switch conveyor safety device

SUS 316  stainless steel Belt Sway Switch conveyor safety device
  • SUS 316  stainless steel Belt Sway Switch conveyor safety device
SUS 316 stainless steel Belt Sway Switch conveyor safety device
B站不支持收货地址
B站不支持库存规格
Outer Covering:
5-10 days
Process connection:
TT, Paypal, Credit card, Western union
Process temperature:
1 SET
Payments:
TT, Paypal, Credit card, Western union
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
这里可以自定义设置

PRODUCT INTRODUCTION



Belt sway switch is a protective switch for detecting the meandering (sway or deviation) of belt conveyors, and sends out an alarm signal and an emergency stop signal.

It’s suited to be used for belt breakage prevention and orefalling prevention due to the belt sway. Widely used in iron and steel, cement and chemical plants, thermal power plants, etc., since it is essential for safety operation of belt conveyors.

The belt sway switch functions in two ways: Detecting any deviation or sway in the conveyor belt and providing an alarm and sending out signal to stop the conveyor.

Use of this switch in material transport system can prevent damage to the conveyor belt and/or drive system and avoid consequential confusion on transport lines in the event of an accident.



Features

The belt sway switch is constructed with high reliability micro switches, lubricate less ball bearings, a touch pulley which is tilted to 750, and other parts; its functions are designed with a large margin for sure action and long life. The switch has the difference of 20 between ON and OFF, to switch certainly at an action point. Therefore, this switch can prevent belt conveyor troubles by a simple circuit.

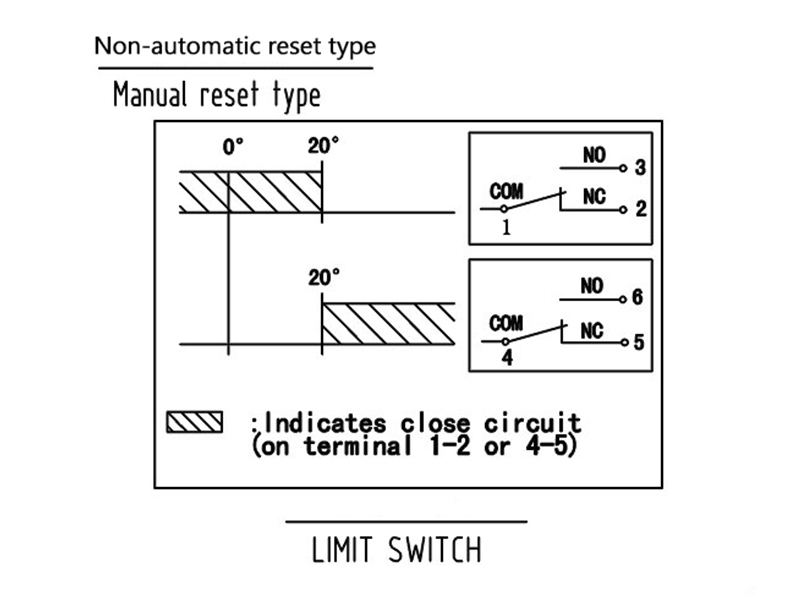

WIRING DIAGRAM & DRAWING

ENVIRONMENTAL CONDITIONS

The belt sway switch should be used in the following environmental conditions; especially made products should be used at the allowable conditions noted in the approved drawing or the final drawing.

● Temperature: -10°C ~ +50°C

Do not use the belt sway switch in the place where there is danger of freezing.

● Humidity less than 80%

● Dust

If much dust adheres to the touch roller and it solidifies the belt sway switch will not move normally. To prevent dust from adhering to the touch roller, it should be cleaned at regular intervals.

PRODUCT INSTALLATION

这里可以自定义设置

PRODUCT MAINTENANCE



Periodic Inspection

(1) Cleaning

Always clean when an excessive amount of dust accumulates on the touch roller.

(2) Wear of Touch Roller

Check wear of the touch roller . When 2 millimeters are worn off the roller, replace as explained in 6.3.

(3) Confirmation of Action

Check to see if the Belt Sway Switch is working normally by testing the touch roller.

Lubrication

The Belt Sway Switch has no need to lubricate.

Replacement of Touch Roller

By loosening the 12 millimeters-sized nut, the touch roller can be taken off easily from the lever.

Secure the nut when the touch roller is replaced, or the Belt Sway Switch may cause trouble if the nut comes loose.

Tightening of Cover

When taking off the cover of belt sway switch for the sake of writing, adjusting and checking, secure the screws of the cover after working, or the belt sway switch may cause trouble due to water and dust entering from between the cover and casing.

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.

社媒暂无评论

More  Model available for all appication, different termperture and pressure!
