PRODUCT INTRODUCTION

High-quality stainless steel casting, high strength, never rust, IP67 protection rating, and good sealing.

Pull Cord Switch is an emergency switch to stop the belt conveyor instantly when an accident happens.

Since the Pull Cord Switch is so designed that it should be installed at the side of belt conveyor and the pull cord should be mounted along conveyor, the switch can be actuated at any position.

Features

Weatherproof type: IP67. The internal contact is the high performance micro switch from Japan, with high contact capacity. It can directly control high capacity contactor, with 2 normally open and 2 normally closed output. Additionally, we also produce pull cord switch with the internal contact close to the sensor.

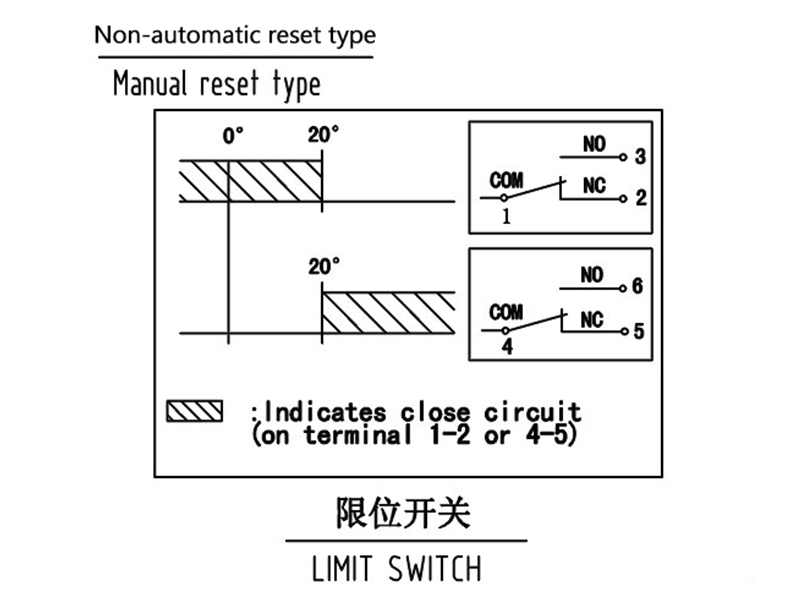

WIRING DIAGRAM & DRAWING

ENVIRONMENTAL CONDITIONS

The Pull Cord Switch should be used in the following environmental conditions; especially made products should be used at the allowable conditions noted in the approved drawing or the final drawing.

● Temperature: -10°C ~ +50°C

Do not use the conveyor pull rope switch in the place where icing occurs.

● Humidity less than 80%

● Dust

If much dust adheres to the touch roller and it solidifies the Pull Cord Switch will not move normally，To prevent dust from adhering to the touch roller, it should be cleaned at regular intervals.

PRODUCT INSTALLATION

PRODUCT MAINTENANCE

Periodic Inspection

(1) Cleaning

Always clean when an excessive amount of dust accumulates on the touch roller.

(2) Action check

Check to see if the Pull Cord Switch is working normally by Pull the cord.

Lubrication

The Pull Cord Switch has no need to lubricate.

Tightening of Cover

When taking off the cover of Pull Cord Switch for the sake of writing, adjusting and checking, secure the screws of the cover after working, or the Pull Cord Switch may cause trouble due to water and dust entering from between the cover and casing.
