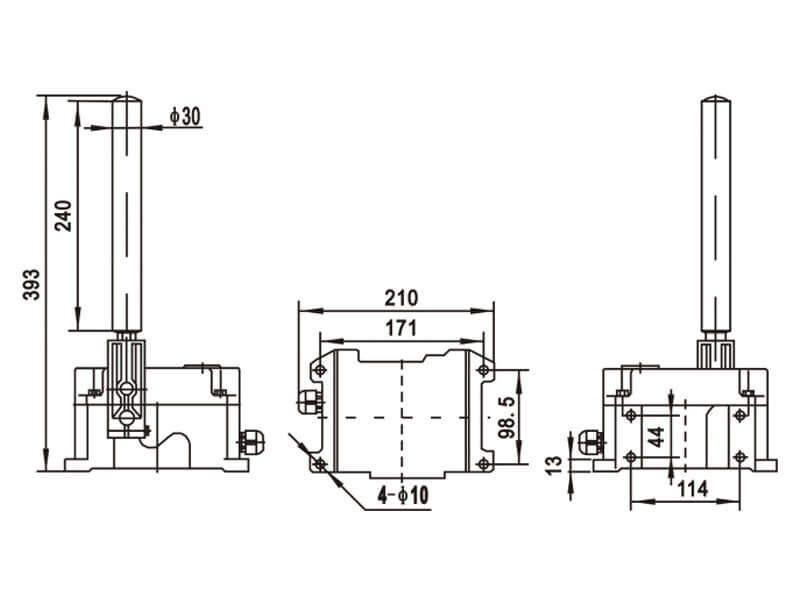

Two-Way Pull Cord Switch KDSP-2D
PRODUCT INTRODUCTION

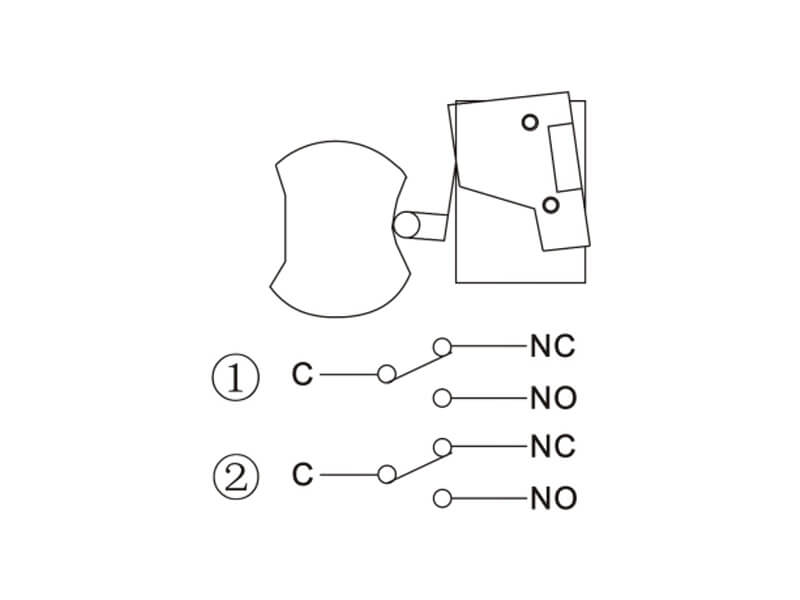

Number of contacts | 2A2B |
Contact capacity | 2xSPDT, 10A/500V |
Reset mode | Manual |
Ambient temperature | -25°C ~ +60°C |
Relative humidity | less than 85% |
Weather protection | IP66, NEMA4 |
Life cycle | 105 |
INSTALLATION SAMPLE

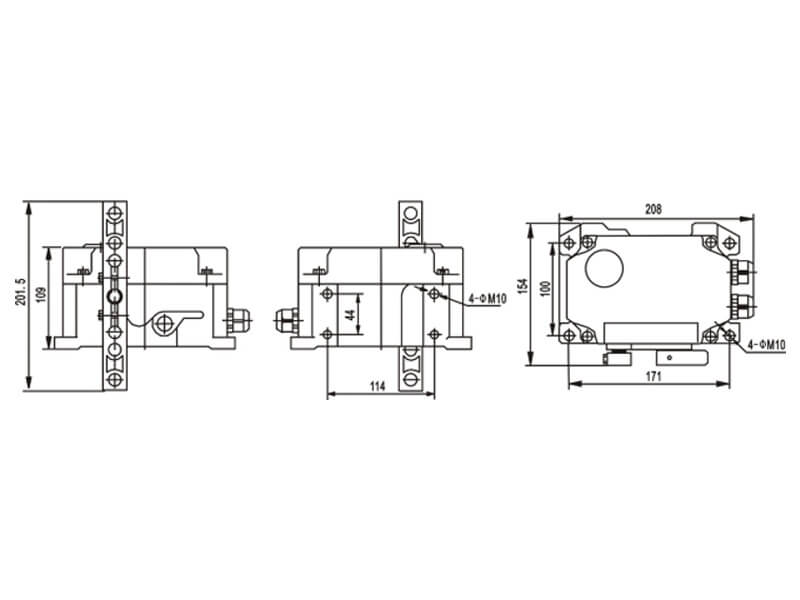

Belt-Sway Switch KDLAM-20
Number of contacts | 2A2B |
Contact capacity | 2xSPDT, 10A/400V |
Force | 5-8KG |
ambient temperature | -25°C ~ +80°C |
Action angle | 10°C, 30°C |
Weather protection | IP66, NEMA4 |
Life Cycle | 105 |

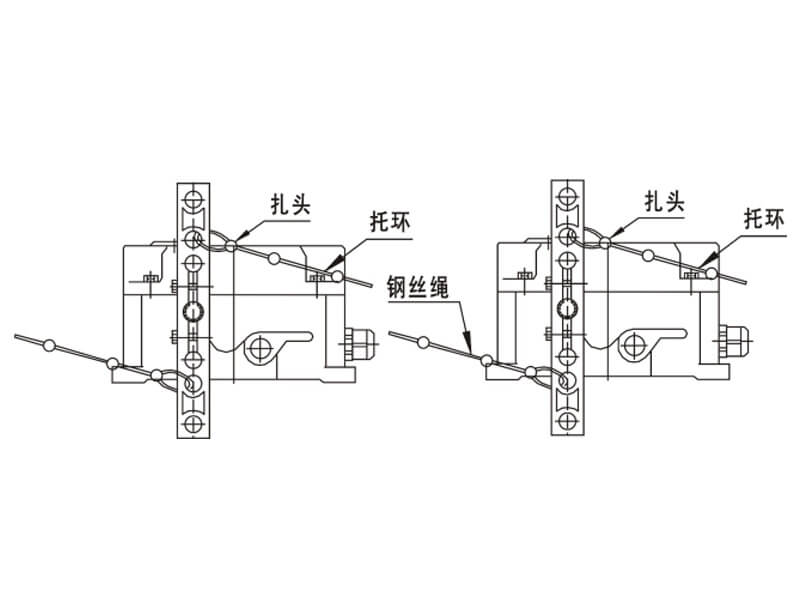

INSTALLATION SAMPLE
Please Send Us your Application details
Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch
Our technical team will check your specifications and make a best solution for you.
More Model available for all appication, different termperture and pressure!
