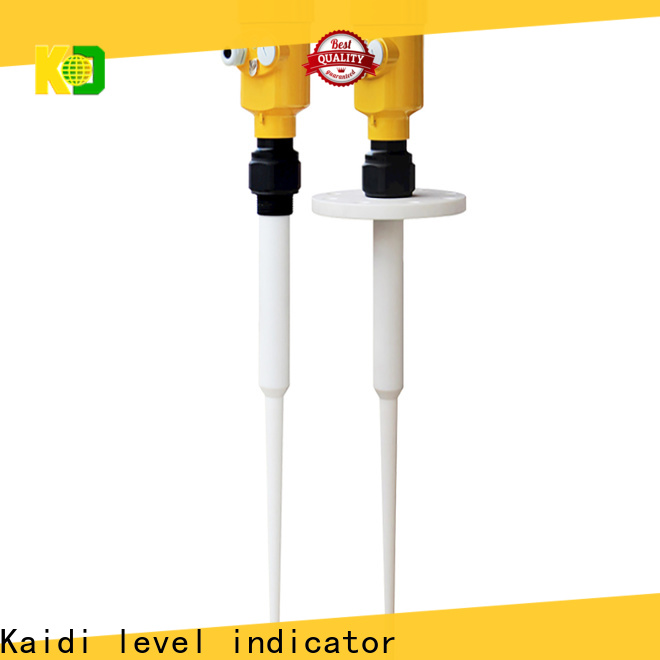

Kaidi Sensors radar level meter suppliers for industrial

Company Advantages
1. The company has many years of production and manufacturing experience, not only has professional production and quality inspection equipment, but also masters advanced manufacturing technology and technology, has established a rigorous and scientific quality management system, and produces radar level meter with reliable performance and excellent quality , far exceeding peer products.
2. [企业简称] not only has a group of experienced design, production and quality inspection teams, but also has established a sound and scientific quality management system and a rigorous cost control system. Moderate, very competitive in the market.
3. radar level meter Well-selected materials, high quality, strong and durable, long service life, wide range of applications, can be applied to watering gardens, cleaning cars, washing windows, washing floors, etc.
4. radar level meter It is finely processed by special processing technology, and has good weather resistance, water resistance, light transmission, antifouling and flame retardancy, and has more market competitive advantages than other similar products.

Application :

6GHz radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.

The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

1.   Dimensions  of  Instruments



2. The  Electrical  Connection

l  The power supply voltage:

 l  Explosion Proof Connection

The intrinsic safety version sensors (Exia IIc T6) use Alu-die casting housing and filling Silicone rubber sealants internal structure aimed to prevent sparks resulted from circuit failure from leaking out. It is applicable for the continuous level measurement of flammable medium under Exia IIc T6.

A safety barrier FBS-2 must be used together with the intrinsic safety instrument. It is an associated device to this product for the power supply of this product. The main specification is intrinsic safety: Exia IIC, voltage of power supply: 24V DC±5%, short-circuit current: 135mA, operating current: 4...20mA.

All cables must be shielded. The max length is 500m for the cable from the barrier to the sensor. Stray capacitor≤0.1μF/Km, stray inductance 1mH/Km. Instrument must be connected to the ground potential. Any unapproved associated device is not allowed to be used.



3.  Protection Grade :

 This instrument meets the protection class IP66/67 requirements, please ensure the waterproof cable sealing head. The following diagram:



 How to install to meet the requirements of IP67:

Please make sure that the sealing head is not damaged.

Please make sure that the cable is not damaged.

Please make sure that the cable for use with electrical connection specification.

Cable into the electrical interface before its curved downward, ensure that the water will not flow into the shell, see the①

Tighten the cable seal head, see the②

Please electrical interface will not use blind plug tight, see the③



4.  Technival Parameters:

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. is a great company that integrates the design, development, manufacture and sales of radar level meter .
2. All our technician in Guangdong Kaidi Energy Technology Co., Ltd. are well trained to help customers solve problems for guided wave radar level transmitter principle of operation .
3. We take our responsibility for the environment seriously. With streamlined manufacturing processes, efficient on-demand options, state-of-the-art machinery, and fulfillment services, we will bring green solutions to customers every day. Inquire now!
