Company Advantages
1. Guangdong Kaidi Energy Technology Co., Ltd. is more technically advanced in manufacturing radar type level transmitter . Its shape can be customized according to needs
2. Being trusted by long-term partners, KAIDI is encouraged to produce higher-quality radar type level transmitter . This product features very low no-load losses
3. The product features the desired durability. It is constructed by using a welded and heavy-duty 16 gauge (minimum) steel frame which is sturdy enough. This product is notable for its strong overload capacity
4. It will not consume extra energy. The certification provided by the Environmental Protection Agency is considered the most authentic in this regard, and the Energy Star label is the mark of this certification. This product is mainly used for the automation process

Introduction

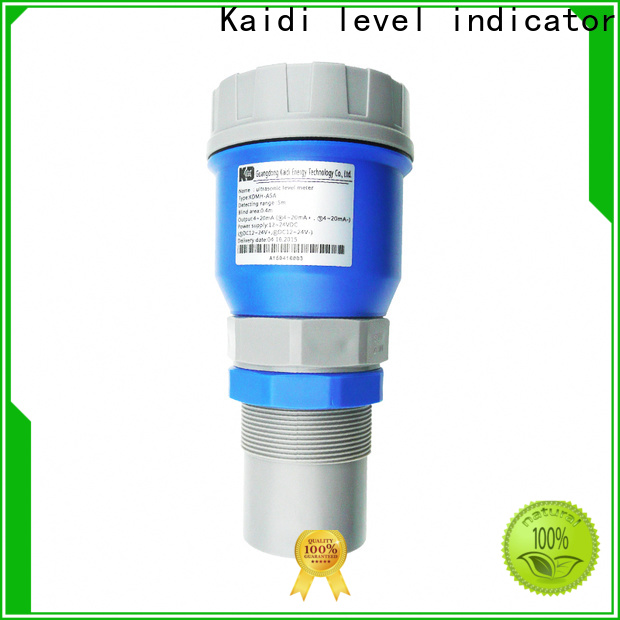

It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

Characteristics

• DC12-24V wide work voltage

• Backup and recovery parameter set

• Free adjustment of the range of analog output

• Set a filter value to remove

• Custom serial port data format

• Optional increment/difference distance measurement to measure air space or liquid level

• 1-15 transmitted pulse intensity depending on working conditions

• More choices depend on your requirement, as bellowing:

1. 3 NPN output

2. 2 relay output

3. Voltage output

4. RS485output connect with PC

5. Explosion-proof



III. Specifications

Range: 5. 8. 10. 12. 15m

Blind zone: ＜0.4-0.5m（different for range）

Measure error:  0.3%F.S

Display:  OLED

Display resolution: 1mm

Frequency:: 20～350KHz

Power: 12-24VDC

Power consumption: <1.5W

Output (optional):

4～20mA RL>600Ω（standard）

              1～5V\1～10V

              RS485

2 NPN

              2 relays (AC: 5A 250V DC: 10A 24V)

Material: ABS

Dimension: Φ92mm×198mm×M60

Electrical interface: M20X1.5

Installation: M60X2 or ￠61MM

Operating surroundings: normal temperature, normal pressure

Protection degree: IP65 (others optional)

Company Features
1. Our quality check team is crucial to our company. They utilize their years of QC experience to ensure the highest standards of product quality and safety.
2. We will endeavor to shoulder the glorious mission of radar type level transmitter and make unremitting efforts to be a professional magnetrol level transmitter manufacturer. Get an offer!
