Application :

6GHz radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.

The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

Suitable for Medium:	Liquid, slightly corrosive liquid
Explosion-proof Grade:	Exia IIC T6 Ga/ Exd IIC T6 Gb
Measuring Range:	20m
Aerials:	The Rod Antenna ( PP /PTFE )
Frequency:	6 GHz
Temperature:	(-40 ~ 130) ℃
Measurement Precision:	±10mm
Process Pressure:	(-0.1 ~ 0.3) Mpa
The signal Output:	(4 ~ 20) mA/HART
The Scene Display:	Four LCD /Can be programmed
Power Source:	Two-wire (DC24V) 、Four-wire (DC24V/AC220V)
Repeatability:	± 1mm
Outer Covering :	Aluminum /Plastic / Stainless steel
Connection:	Flange (optional) / Thread

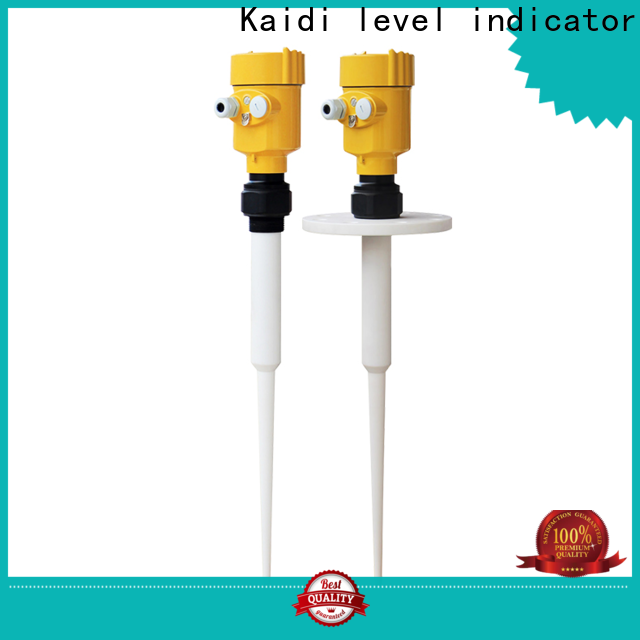

KAIDI radar type level transmitter for business for industrial-1

KAIDI radar type level transmitter for business for industrial-2

1. Dimensions of Instruments

KAIDI radar type level transmitter for business for industrial-3

2. The Electrical Connection

l The power supply voltage:

(4~20)mA/HART (Two wire system)	The power supply and the output current signal sharing a two core shield cable. The supply voltage range see technical data. For intrinsically safe type must be a safety barrier between the power supply and the instrument.


(4~20)mA/HART(Four wire system)	Separate power supply and the current signal, respectively using a two-core shielded cable. The supply voltage range see technical data.


RS485 / Modbus	Power supply and Modbus signal line are separated, respectively using a two-core shielded cable, the power supply voltage range see technical data.

KAIDI radar type level transmitter for business for industrial-4

l Explosion Proof Connection

The intrinsic safety version sensors (Exia IIc T6) use Alu-die casting housing and filling Silicone rubber sealants internal structure aimed to prevent sparks resulted from circuit failure from leaking out. It is applicable for the continuous level measurement of flammable medium under Exia IIc T6.

A safety barrier FBS-2 must be used together with the intrinsic safety instrument. It is an associated device to this product for the power supply of this product. The main specification is intrinsic safety: Exia IIC, voltage of power supply: 24V DC±5%, short-circuit current: 135mA, operating current: 4...20mA.

All cables must be shielded. The max length is 500m for the cable from the barrier to the sensor. Stray capacitor≤0.1μF/Km, stray inductance 1mH/Km. Instrument must be connected to the ground potential. Any unapproved associated device is not allowed to be used.

KAIDI radar type level transmitter for business for industrial-5

3. Protection Grade :

This instrument meets the protection class IP66/67 requirements, please ensure the waterproof cable sealing head. The following diagram:

KAIDI radar type level transmitter for business for industrial-6

How to install to meet the requirements of IP67:

Please make sure that the sealing head is not damaged.

Please make sure that the cable is not damaged.

Please make sure that the cable for use with electrical connection specification.

Cable into the electrical interface before its curved downward, ensure that the water will not flow into the shell, see the①

Tighten the cable seal head, see the②

Please electrical interface will not use blind plug tight, see the③

4. Technival Parameters:

1) General data
The outer shell / Materials
Antenna	PTFE, PP
Outer Covering	Aluminum, Plastic, Anti-static PP, Stainless steel 316
The seal housing and the housing	Silicone Rubber
Shell window	Polycarbonate
Ground terminal	Stainless steel
Process connection
801	G1½″A Thread & 1½″NPT Thread / Flange (optional)
802	With PTFE plate flange
Supply voltage
Two-wire
Standard	(16～26)V DC
Intrinsically Safe	(21.6～26.4)V DC
Power Consumption	Max.22.5mA
Allowable ripple
<100HzH47	Uss < lV
- (100～100K)Hz	Uss < l0mV
Flameproof
(22.8 ~ 26.4) V DC 2-wire system
(198 ~242)V AC 4-wire system / 110V AC 4-wire system
Power Consumption Max. 1VA，1W

2) Cable parameters
Cable entry / plug	1 M20xl.5 cable entry (cable diameter 5 ~ 9mm)
Cable entry / plug	1 blind blocking M20xl.5
Spring terminals	For wire cross-section 2.5mm²

3) Output parameters
The output signal	(4～20)mA / HART
Resolution	1.6μA
Fault signal	Current output unchanged；20.5mA；22mA；3.9mA
Two-wire load resistor	See below
Four-wire resistive load	The maximum 500Ω
Integration time	(0 ~ 36) s, adjustable

KAIDI radar type level transmitter for business for industrial-7
