Company Advantages
1. KAIDI meets various requirements stipulated in compulsory certifications. They are mainly domestic standards CCC and overseas standards such as BSI, PSE, SAA, UL, and CE. There is little variation between its measuring values
2. Striving to improve and enhance the quality of radar level meter helps KAIDI win more clients. Due to its corrosive coatings, this product is highly rust-proof
3. radar level meter is one of the most promising new developments of field , due to . This product is mainly used for the automation process

●Principle

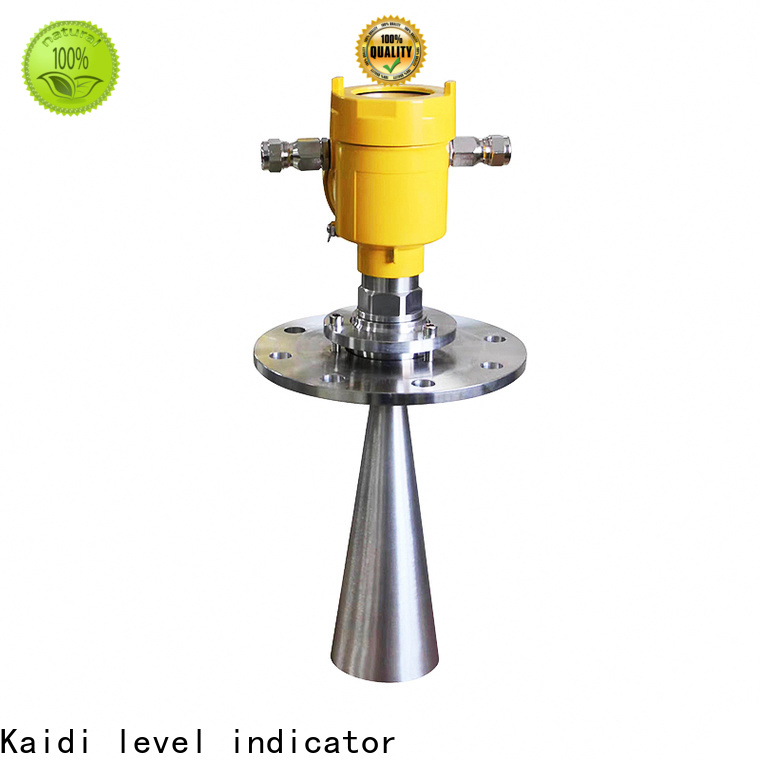

KAIDI radar level meter supply for transportation-1 The extremely narrow microwave pulse emitted by the antenna on radar level instrument can travel at the speed of light and part of its energy．which is reflected off the surface of target medium, is received by the very same antenna．The time lapse between pulse emission and reception by the antenna is proportional to the distance between the surface of target medium and the reference point on antenna．However。due to the fact that the electromagnetic wave is Transmitted at extremely high speed．which leads to the tiny time lapse (nanosecond level) and makes it difficult to be identified．GDRD5×series of radar level instrument have adopted a special demodulation technology．enabling itself to detect the time lapse between pulse emission and reception correctly, and eventually generate accurate measurement result．

●Features

The guided wave radar level instrument, adopted 26GHz as transmitting frequency, which make this series have specialties as below：Small beam angle, which centralize energy, make GDRD5X high ability of anti—jamming, hence high accuracy and reliable．Small antenna size, easy to mount and easy to equip extra dust protection Small blind zone, good accuracy even for small vessels．Shorter wave—length, suitable for small power．

Equipped with advanced microprocessor and unique Echo Discovery echo processing technology, the radar level instrument can be used under various hazardous process conditions.

The guided wave radar level instrument, with pulses as its working tool and extremely low emission power, can be mounted on various metal or nonmetal vessels, harmless towards the environment and human beings．

Model	KDZA55	KDZA56	KDZA88
Application	Liquid	Anti-temperature and anti-pressure, mildly erosive liquid	For solid and powder 5.6KGS DN100
Application	Adapt to highly erosive liquids	30m	50-70m
Range	10mm：30m(Horn 80mm)	+ 3mm	+ 3mm
Accuracy	+ 5mm	(-40 - 80) °C	(-40 - 80) °C
Process Temperature	(-40 - 130) °C	(-40 - 130) °C	(-40 - 130) °C
		(-60 - 250) °C	(-60 - 250) °C
		(-60 - 400) °C	(-60 - 400) °C
		Normal	Normal
Process Pressure	(-0.1 - 0.3)MPa	(-0.1 - 4)MPa	(-0.1 - 4)MPa
		(-0.1 - 40)MPa	(-0.1 - 40)MPa
		26GHZ	26GHZ
Frequency Range	26GHZ(4 - 20)mA／HART	(4 - 20)mA／HART	(4 - 20)mA／HART
Signal Output	Two-wire system (DC24V)	Two-wire system (DC24V)	Two-wire system (DC24V)
Power	4 wire system (DC24V/AC220V)	Four-wire system (DC24V/AC220V)	Four-wire system (DC24V/AC220V)
Power	Optional	Optional	Optional
Field Displaying	A／B／C／D (view page 4)	K/B/C/D1	K/B/C/D1
Process Connection	F	C／N／I／J／K2	C／N／I／J／K2
Flange Accessories	L	L／M／N／P3	L／M／N／P3
Antenna	R	S／T／V3	S／T／V3
Frequency Range	Liquid	Anti-temperature and anti- pressure, mildly erosive liquid	Anti-temperature and anti- pressure, mildly erosive liquid

Model	KDZA57	KDZA58	KDZA59
Application	liquid	solid	solid
Application	High corrosive, sanitary	Storage vessel, process vessel, Strong dust, easy to crystallize, condensation	Normal temperature, normal pressure
Max. Range	20m	70m	l 5m
Accuracy	+3mm	+1 5mm	+1 0mm
Temperature	(-40 - 150)°C	(-40 - 80)°C	(-40 - 80)°C
		(-40 - 1 20)°C	(-40 - 1 20)°C
		(-60 - 250)°C	(-60 - 250)°C
		(-60 - 400)°C
Process Pressure	(-0.1 - 0.5)MPa	normal pressure	normal pressure
		(-0.1 - 4)MPa	(-0.1 - 4)MPa
		(-0.1 - 40)MPa
Frequency Range	26GHZ	26GHZ	26GHZ
Signal Output：	(4 - 20)mA／HART	(4 - 20)mA／HART	(4 - 20)mA／HART
Power	2 Wires (DC24V)	2 Wires (DC24V)	2 Wires (DC24V)
Power	4 Wires (DC24V/AC220V)	4 Wires (DC24V/AC220V)	4 Wires (DC24V/AC220V)
Field Displaying	optional	optional	optional
Process Connection	A/B/C/D1	A/B/C/D1	A/B/C/D1(Page 4)
Flange Accessories		G/H/I/J/K3	G/H/I/J/K3
Antenna	U	L/M/N/P3	L/M/N/P3
Frequency Range		S/T/V/W3	S/T/V/W3

Company Features
1. Since inception, Guangdong Kaidi Energy Technology Co., Ltd. has endeavored to manufacture high-quality . We provide products with an outstanding performance both domestically and internationally. KAIDI's technical support team is composed of a group of dedicated technical engineers.
2. Guangdong Kaidi Energy Technology Co., Ltd. has always set high demand on quality from material selection to package.
3. Guangdong Kaidi Energy Technology Co., Ltd. has formed a relatively complete personal system and has a highly skilled and well-structured technology team. The KAIDI branded radar level meter is manufactured in strict accordance with international standards.

k******m

Guangdong Kaidi Energy Technology Co., Ltd. Always put product quality first, not only select high-quality raw materials and use advanced production technology to manufacture radar level meter, but also set up a professional quality inspection team to strictly monitor each production link and each production process, To ensure that the radar level meter produced are of high quality.

w******n

We insist on using high-quality materials and using advanced technology to produce radar level meter, and strictly control each production process, so that all radar level meter produced meet strict quality standards.

l******n

The radar level meter we produce is fine in workmanship, reasonable in design, excellent in performance and stable in quality, and is a trustworthy high-quality product.

y******a

Guangdong Kaidi Energy Technology Co., Ltd. Continuously absorb advanced management experience at home and abroad, introduce professional manufacturing and quality inspection equipment, actively learn industry-leading production technology and manufacturing process, and strive to improve the inherent quality of products to ensure that radar level meter produced are of high quality Qualified product.

p******u

Guangdong Kaidi Energy Technology Co., Ltd. Have a professional team, concentrate on the quality management of materials, and strictly control the quality of radar level meter from the source, not only that, radar level meter After the production is completed, the quality inspection team specially established by the company will conduct inspections , to ensure its high quality and excellent quality.

m******y

The product has reliable and consistent quality thanks to the detailed quality inspection throughout the whole production.
