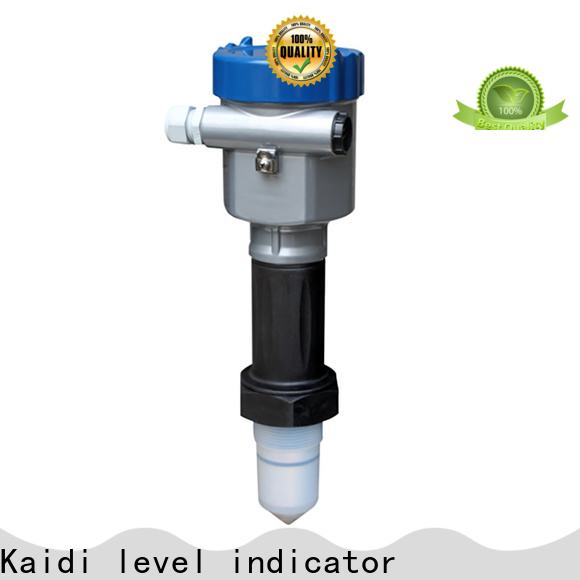

KAIDI radar level gauge company for industrial

Feature: 　 Fully sealed PTFE antenna is corrosion-resistant and protected against slight condensation.

Should be used: 　 widely used in various corrosive occasions such as various acid and alkali storage tanks. When installed on a small tank, the wave is smaller than 6G

　　　　　　 The beam angle determines that by installing appropriate short tubes, a smaller actual measurement dead zone can be obtained.

Maximum range: 　10m

Measurement accuracy: 　±5mm

Antenna structure: 　 fully sealed PTFE material

Process temperature: 　(-40～130) ℃

Process pressure: 　(-0.1～0.3)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　Two-wire system/four-wire system

Detailed introduction:

GDRD55

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Ex ia IIC T1～T6)

Antenna type/material/process temperature

B (R type) sealed horn/PTFE/(-40～130)℃

Process connection/material

GP (F) thread G1½A

NP (F) thread 1½ NPT

FA (L) flange DN50/PTFE

FB (L) flange D80/PTFE

FX special customization

Guide tube matching

A Not optional

B Special customization

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½ NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Exia IIC T1～T6) can only use "B" electronic components and "A" "G" type shell

  The standard flange size refers to GB/T9119-2000 PN1.6MPa size, and the thickness is 15.
