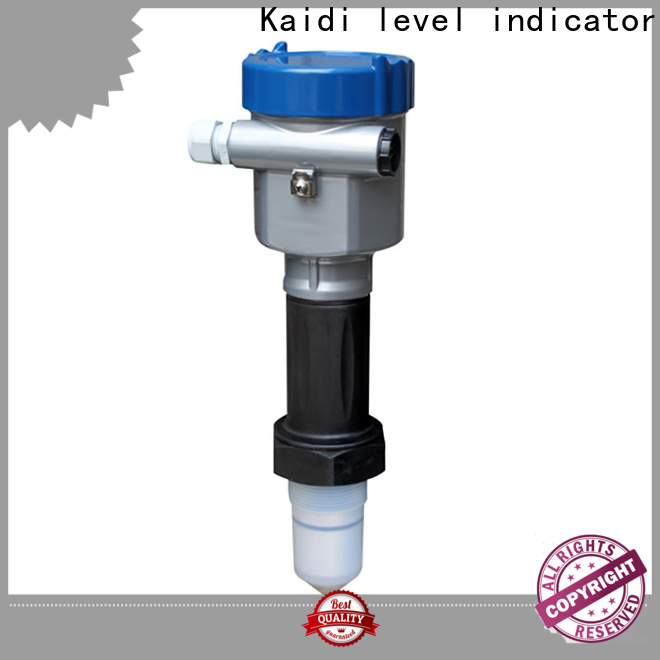

KAIDI new radar type level transmitter company for work

Company Advantages
1. Right material is extremely critical for the production of radar type level transmitter . This product can be used in many different industries such as food & beverage, water, energy, pharmaceutical, etc
2. After decades of puzzling efforts, Guangdong Kaidi Energy Technology Co., Ltd. has begun to take shape. It works stably under strong impact and vibration conditions
3. The product is free of toxic chemicals. All of the materials elements have been completely cured and inert by the time the product is completed, which means it will not generate any harmful substances. Since it is maintenance-free, this product significantly helps save operation costs
4. The product is resistant to fading. Its materials have been tested under normal washing, dry cleaning, perspiration, and chlorinated water to check colorfastness. This product features very low no-load losses

Feature: 　 Fully sealed PTFE antenna is corrosion-resistant and protected against slight condensation.

Should be used: 　 widely used in various corrosive occasions such as various acid and alkali storage tanks. When installed on a small tank, the wave is smaller than 6G

　　　　　　 The beam angle determines that by installing appropriate short tubes, a smaller actual measurement dead zone can be obtained.

Maximum range: 　10m

Measurement accuracy: 　±5mm

Antenna structure: 　 fully sealed PTFE material

Process temperature: 　(-40～130) ℃

Process pressure: 　(-0.1～0.3)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　Two-wire system/four-wire system







Detailed introduction:

GDRD55

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Ex ia IIC T1～T6)

Antenna type/material/process temperature

B (R type) sealed horn/PTFE/(-40～130)℃

Process connection/material

GP (F) thread G1½A

NP (F) thread 1½ NPT

FA (L) flange DN50/PTFE

FB (L) flange D80/PTFE

FX special customization

Guide tube matching

A Not optional

B Special customization

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½ NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Exia IIC T1～T6) can only use "B" electronic components and "A" "G" type shell

  The standard flange size refers to GB/T9119-2000 PN1.6MPa size, and the thickness is 15.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. has been paying attention to the radar type level transmitter business for many years.
2. rosemount level transmitter is manufactured by experienced workers and advanced machines.
3. We adhere to the commitment to sustainable development. We are planning to introduce advanced technological production facilities to reduce the environmental negative influence throughout the whole production.
