high-quality radar level gauge factory for transportation

Company Advantages
1. During the design of KAIDI radar level gauge , many factors have been considered. They are fabric quality, color mix, style, stitching workmanship, comfort, and convenience. This product is not susceptible to cracks
2. The product not only effectively remove all harmful substances out, but also it can retain the mineral trace elements which is healthy for people. This product is characterized by excellent temperature stability
3. At the same time, it also guarantees the upgrade and maintaince of radar level gauge . This product features a frequency response property
4. It is proved by practice that radar level gauge has the virtues of . This product has a high level of IP
5. radar level gauge based on materials has the characteristic of . This product is notable for its strong overload capacity

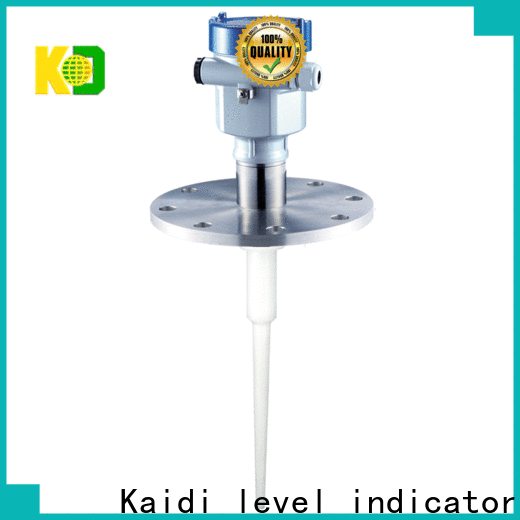

Special 　　 sign: 　All PTFE antenna, strong corrosion resistance, no sanitary corners.

Should be used: 　 Suitable for highly corrosive environment and sanitary environment, simple process liquid measurement.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　PTFE flange flange

Antenna material: 　PTFE

Process temperature: 　-40…150°C

Process pressure: 　-1.0…16bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART



Detailed introduction:

GDRD52

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material/process temperature

B Plastic rod/PTFE/-40～+150℃

Container takeover length

A 50mm

B 100mm

C 150mm

D 200mm

E 250mm

F 300mm

X Special customization

Process connection

FC PTFE flange flange DN50 PN1.6 stainless steel 316L (GB/T9119-2000)

FD PTFE flange flange DN80 PN1.6 stainless steel 316L (GB/T9119-2000)

FE PTFE flange flange DN100 PN1.6 stainless steel 316L (GB/T9119-2000)

FK PTFE flange flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. has a huge advantage with large factories and takes a leading position in industry. In the past years, Guangdong Kaidi Energy Technology Co., Ltd. has cultivated its own product R&D capabilities.
2. Guangdong Kaidi Energy Technology Co., Ltd. insists on the quality management principle of 'satisfy customers'.
3. The high output of radar level gauge proves that Guangdong Kaidi Energy Technology Co., Ltd. has solid technology ability. Our mission is simple - to bring product development and creative manufacturing solutions and to help them achieve their business success.
