Introduction

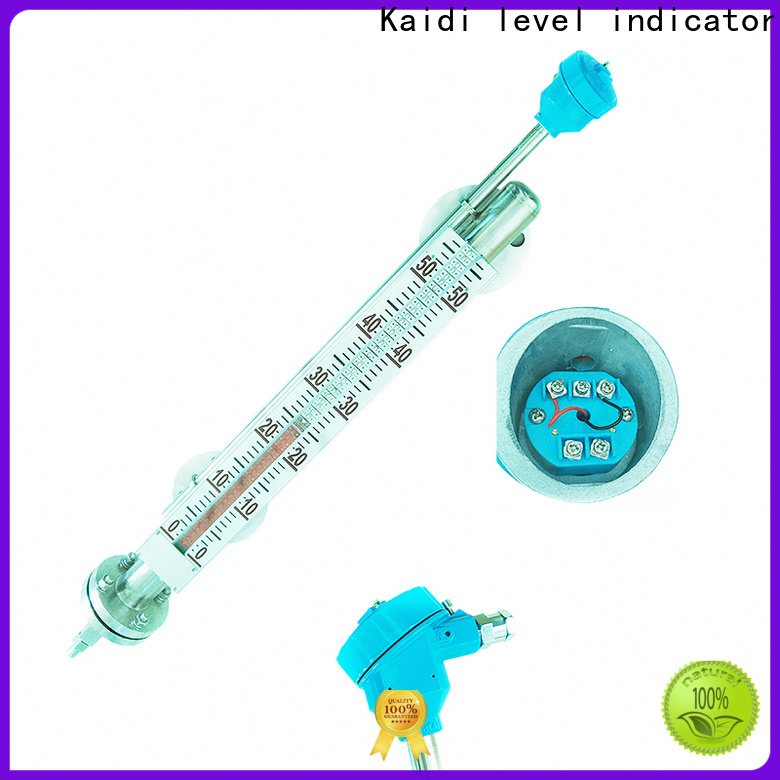

KDMLI is KAIDI’s standard, high performance magnetic level indicator. KDMLI is a single chamber design with either 2", 2.5", or 3" chamber diameter, as required by the application. There are twelve basic configuration styles, including top mount models. KDMLI magnetic level indicators are produced in a wide range of materials of construction, including plastics. KAIDI also offers one of the most complete selections of process connection types and sizes in the industry. KDMLI may be equipped with a variety of level transmitters and switches, as well as, flag and shuttle indicators with or without stainless steel scales. This enables the KDMLI to be a complete level and monitoring control.

Specifications

Medium Density	≥ 0.5Kg / L
Medium pressure	≤ 5.0Mpa
Medium temperature	-40 ~ 130 °C / 200 °C
Measuring range	300-6000mm
Accuracy	± 8mm
Measuring tube material	SUS304/SUS316L/PP/PVDF
Float material	SUS304/SUS316L
Connection	Flange connection (Customizable)
Top Connection	Dome + race header (Customizable)
Limit switch	Customizable
Whether the remote	Customizable
Whether the explosion	Customizable

k******q

Quality inspections for Kaidi Sensors magnetic level gauge with switch are implemented at critical points in the production process to ensure quality: after finishing the innerspring, before the closing, and before packing. This product features a frequency response property

t******c

In Kaidi Sensors magnetic level gauge with switch manufacturing, we use mechanical joining and connection technology. We also use injection molding with fully and partially automated processes, as well as manual processes. This product has a high level of IP

k******y

Kaidi Sensors magnetic level gauge with switch will be tested adopting a series of standards. Its mechanical parts, materials, and the whole structure will be tested to check their mechanical properties and defections. This product can repeat the same measurement many times

e******h

The design of Kaidi Sensors magnetic level gauge with switch is in line with the minimalist market trend. It is designed taking the consideration of beauty appreciation, bathroom space, style collocation, and color matching. Due to its corrosive coatings, this product is highly rust-proof

n******r

Kaidi Sensors magnetic level gauge undergoes a number of evaluation tests, including the aspects of energy efficiency, energy consumption, insulation performance, electric leakage, etc. It is able to quickly and effectively detect and respond to some types of input

t******x

The product is excellent in heat dissipation. Usually constructed from copper or aluminum which has a very high thermal conductivity, the product also features a high rate of heat transfer. This product has the advantage of chemical resistance
