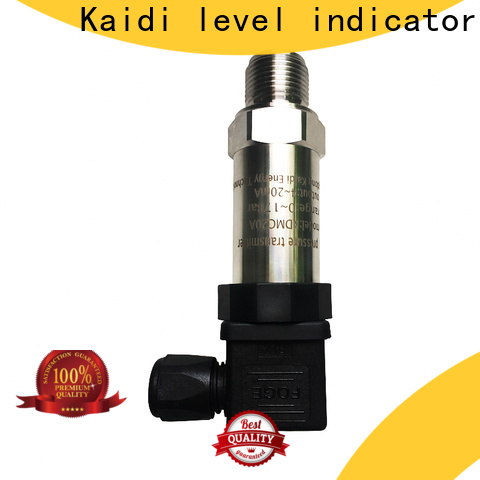

high-quality low pressure transducer supply for transportation

Brief introduction

A pressure transducer, often called a pressure transmitter, is a transducer that converts pressure into an analog electrical signal. Although there are various types of pressure transducers, one of the most common is the strain-gage base transducer.

The conversion of pressure into an electrical signal is achieved by the physical deformation of strain gages which are bonded into the diaphragm of the pressure transducer and wired into a wheatstone bridge configuration. Pressure applied to the pressure transducer produces a deflection of the diaphragm which introduces strain to the gages. The strain will produce an electrical resistance change proportional to the pressure.

Typical Specifications

Medium	Gas, liquid, oil
Measuring range	Gauge pressure(G)---Max(0 ~ 60)MPa, Min(0 ~ 0.5)KPa
	Absolute Pressure(A)---Max(0 ~ 60)MPa, min (0 ~ 5)KPa
	Negative pressure(B)--- Max (-100KPa ~ 60)MPa, Min(-0.2 ~ 0.2 )KPa
Accuracy	0.25, 0.5
Overload capability	2-3 times of Measuring range
Long-term stability	<0.2%FS/yr, <0.5%FS/yr
Power supply	15 ~ 36 VDC(rated 24VDC)
Output	(4 ~ 20)mA (2/3/4 line), (0 ~ 10/20)mA, (0 ~ 5)V, (1 ~ 5)V, (0 ~ 10)V
Working temperature	-40 ~ 80°C Temperature Compensation：-20 ~ 70 °C
Process connection	M20×1.5or customized
Weather proof	IP65
Optional radiator	Up to 300°C

r******e

The design of Kaidi Sensors low pressure transducer is diverse in style. Being one of the trusted names in this field, Gewinn manufactures an exclusive range of CNC cutting machine which has been tested for its high-end functionality

x******s

Kaidi Sensors low pressure transducer is developed by using modern machinery and technology. Our offered range encompasses solid wood machine, panel machine, small simple machine, customized solution as well as tools and accessories

n******o

In manufacturing Kaidi Sensors low pressure transducer, methodologies that promote cost savings are applied. Gewinn united is a well-known supplier and exporter of the technically superior Gewinn wood cutting machine which has been designed to perform the heavy duty

z******f

The whole production of Kaidi Sensors low pressure transducer is completed by the combination of sophisticated equipment and professional staff. We have high-end expertise in manufacturing the best CNC tenoning machines that have been tested for its quality and consistent performance

x******q

Kaidi Sensors low pressure transducer only adopts the finest materials from top-grade suppliers. We manufacture and offer a wide range of CNC tenoning machine that has the capability to perform with high levels of consistency

f******o

The product has good wear resistance. Yarn surface winding irregular fiber, not easy to decompose. Also, the yarn has enough friction. The offered woodwork machine of Gewinn United is highly acclaimed for its long service life
