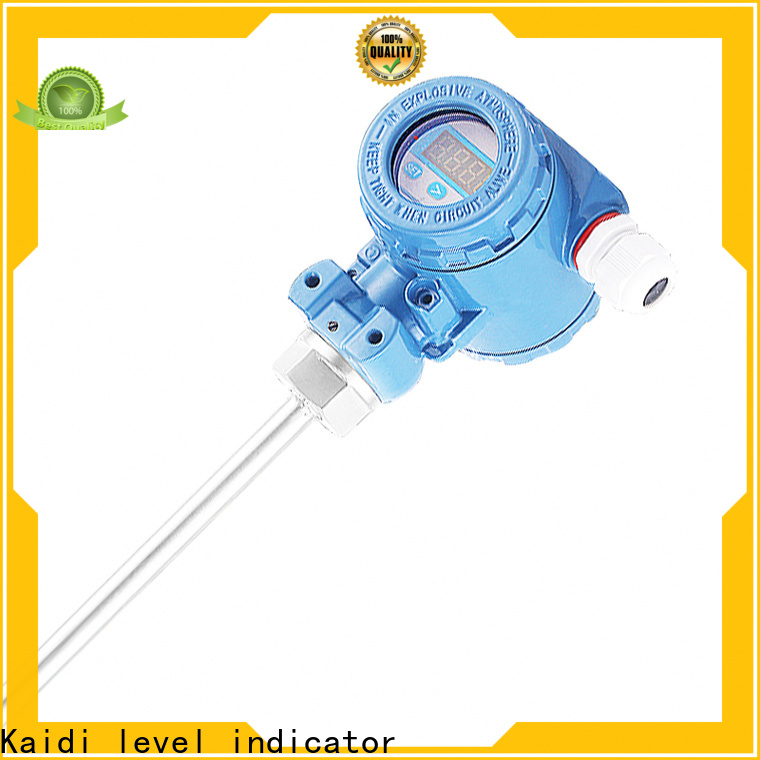

KAIDI temperature transmitter pt100 supply for work

Company Advantages
1. KAIDI has been tested in many aspects, such as user interface options, display options, additional output options, and environmental parameters. With a simple structure, it is perfectly good for demanding industrial applications
2. The product is affordable and efficient that can meet the requirements of customers. This product has a high level of insulation
3. This product is not prone to deformation. Thanks to its perfect cushioning effect, it will not tend to crack or break under repeated impacts. This product is not susceptible to cracks

Platinum resistance thermometers (PRTs) offer excellent accuracy over a wide temperature range (from –200 to +850 °C). Standard sensors are are available from many manufacturers with various accuracy specifications and numerous packaging options to suit most applications. Unlike thermocouples, it is not necessary to use special cables to connect to the sensor.

The principle of operation is to measure the resistance of a platinum element. The most common type (PT100) has a resistance of 100 ohms at 0 °C and 138.4 ohms at 100 °C. There are also PT1000 sensors that have a resistance of 1000 ohms at 0 °C.

The relationship between temperature and resistance is approximately linear over a small temperature range: for example, if you assume that it is linear over the 0 to 100 °C range, the error at 50 °C is 0.4 °C. For precision measurement, it is necessary to linearise the resistance to give an accurate temperature. The most recent definition of the relationship between resistance and temperature is International Temperature Standard 90 (ITS-90).

The linearization equation is:

Rt = R0 * (1 + A* t + B*t2 + C*(t-100)* t3)

Where:

Rt is the resistance at temperature t, R0 is the resistance at 0 °C, and
A= 3.9083 E–3
B = –5.775 E–7
C = –4.183 E–12 (below 0 °C), or
C = 0 (above 0 °C)

For a PT100 sensor, a 1 °C temperature change will cause a 0.384 ohm change in resistance, so even a small error in measurement of the resistance (for example, the resistance of the wires leading to the sensor) can cause a large error in the measurement of the temperature. For precision work, sensors have four wires- two to carry the sense current, and two to measure the voltage across the sensor element. It is also possible to obtain three-wire sensors, although these operate on the (not necessarily valid) assumption that the resistance of each of the three wires is the same.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. has been a renowned manufacturer recognized by the global market. We mainly design and produce temperature transmitter pt100 .
2. Guangdong Kaidi Energy Technology Co., Ltd. provides technical advice and recommends suitable what is temperature transmitter products to customers.
3. Guangdong Kaidi Energy Technology Co., Ltd. exists to bring our customers best temperature transmitter with display and considerate service. Contact us!
