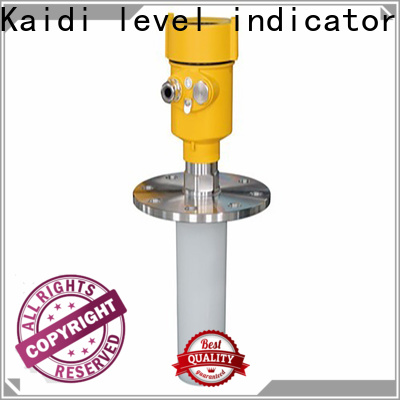

Kaidi Sensors wholesale intelligent radar level meter manufacturers for industrial

Company Advantages
1. intelligent radar level meter Select high-quality raw materials and refine them with fine cutting, polishing, grinding and other processes. The surface is flat and smooth, the texture is hard and firm, the hand feels delicate and thick, durable, and convenient for later cleaning and maintenance.
2. With such a wide range of functions, together with its modern and simple design, it is loved by a majority of people. This product is notable for its strong overload capacity
3. The quality of the product is in tune with industry set standard and has passed the international certificates. This product can repeat the same measurement many times
4. The product complies with international quality standards. This product has the ability to accurately convert a physical parameter into a signal

PRODUCT OVERVIEW

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 10 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.

THE PRODUCT PRINCIPLE

Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).

Datum measurement:  Screw thread bottom or the sealing surface of the flange.

Note: Make sure the radar level meter the highest level cannot enter the measuring blind area (Figure D shown below).

PROTECTION GFEATURES

Ø Small antenna size, easy to install; Non-contact radar, no wear, no pollution.

Ø Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure

changes.

Ø Serious dust environment on the high level meter work has little effect.

Ø A shorter wavelength, the reflection of solid surface inclination is better.

Ø Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.

Ø The measuring range is smaller, for a measurement will yield good results.

Ø High signal-to-noise ratio, the level fluctuation state can obtain better performance.

Ø High frequency, measurement of solid and low dielectric constant of the best choice.

PRODUCT SPECIFICATION

APPEARANCE OF SIZE

TECHNICAL PARAMETERS

INSTALLATION REQUIREMENTS

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. has strong research and development capabilities.
2. Our company is socially responsible for our performance. For example, our overall goal is to achieve the lowest potential CO2 emission.
