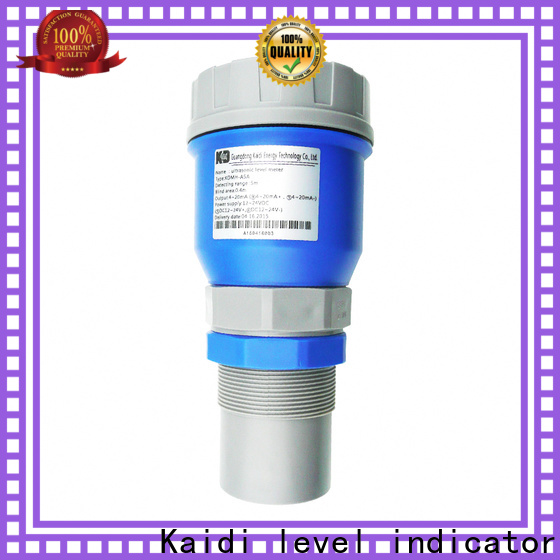

Introduction

It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

Characteristics

DC12-24V wide work voltage
Backup and recovery parameter set
Free adjustment of the range of analog output
Set a filter value to remove
Custom serial port data format
Optional increment/difference distance measurement to measure air space or liquid level
1-15 transmitted pulse intensity depending on working conditions
More choices depend on your requirement, as bellowing:

1. 3 NPN output

2. 2 relay output

3. Voltage output

4. RS485output connect with PC

5. Explosion-proof

III. Specifications

Range: 5. 8. 10. 12. 15m

Blind zone: ＜0.4-0.5m（different for range）

Measure error: 0.3%F.S

Display: OLED

Display resolution: 1mm

Frequency:: 20～350KHz

Power: 12-24VDC

Power consumption: <1.5W

Output (optional):

4～20mA RL>600Ω（standard）

1～5V\1～10V

RS485

2 NPN

2 relays (AC: 5A 250V DC: 10A 24V)

Material: ABS

Dimension: Φ92mm×198mm×M60

Electrical interface: M20X1.5

Installation: M60X2 or ￠61MM

Operating surroundings: normal temperature, normal pressure

Protection degree: IP65 (others optional)

e******s

When it is polished, Kaidi Sensors float level transmitter adopts imported auto-polishing machines. These machines are able to achieve planish, kibble and fine-polishing of this product. It features excellent operation stability and work efficiency

y******w

Kaidi Sensors float level transmitter must go through the necessary tests. It will be tested in terms of insulation resistance, current leakage, and current load. This product can survive complicated and harsh geological and meteorological conditions

h******p

Kaidi Sensors float level transmitter is manufactured complying with international standards. It has been certified under CE, UL, GOST, CCC, which proves that it meets safety requirement for the phone users. Despite a sophisticated mechanical product, it provides a clear operating interface

j******g

The workmanship of Kaidi Sensors float level transmitter requires particular skills of machinists. It has to be welded, stamped, and brazed by professional workers, and its parts are put together and fastened by hands during assembly. It has an anti-abrasion spraying coat, which improves its long term abrasion performance

i******d

The production of Kaidi Sensors float level transmitter meets the mandatory regulations stipulated in the national standards. All of its metal ingredients such as mercury and lead are guaranteed to be controlled in a safe limit. It produces much less noise when compared with its equivalents on the market and thus is suitable for overnight use

v******c

This product can realize many special architectural performance techniques, mainly in the form of styling, diffuse light transmission, and rich color. Its capacity can be customized based on your construction needs
