KAIDI radar level sensor manufacturers for industrial

Company Advantages
1. The filler material of KAIDI may be natural or synthetic. They are well worn and the density varies according to future use. This product is easy to install and use
2. This was a great size. It's not as big as I could have gone but it's just enough! I would like to wear it every day. - Said one of our customers. This product is not susceptible to cracks
3. This product can always maintain a clean surface. The lime and other residues are not easy to build upon its surface over time. It generates only little magnetic interference
4. The product has good washing quality. It is not likely to shrink, distort, or fade after dipped into water and washed. Since it is maintenance-free, this product significantly helps save operation costs

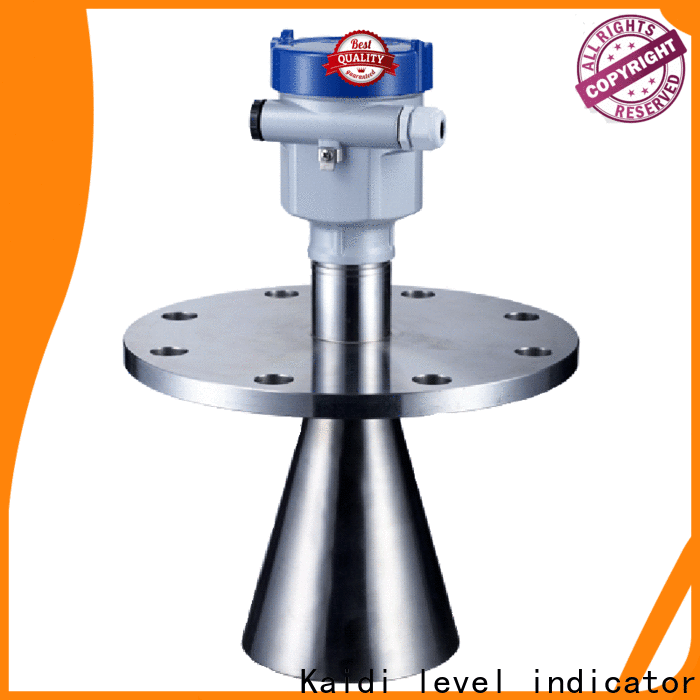

sign: 　 Horn antenna with small beam angle.

Should be used: 　 liquid measurement or short-range solid measurement. Can adapt to the environment with complex process conditions.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　 flange 316L

Antenna material: 　 stainless steel 316L/PTFE

Process temperature: 　-40…200°C

Process pressure: 　-1.0…40bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART



Detailed introduction:

GDRD53

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6) (only aluminum housing is available)

C Intrinsically safe type + marine license (Exia IIC T6) (only stainless steel shell is available)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6) (see "Note" below for optional housing)

Antenna type/material

C Horn antenna 50/stainless steel 316L (only for waveguide installation)*

D Horn antenna 80/stainless steel 316L (only for waveguide installation)*

E Horn antenna 100/Stainless steel 316L

F Horn antenna 150/Stainless steel 316L

G Horn antenna 200/Stainless steel 316L

Antenna extension tube

A None

B 200mm

C 500mm

D 1000mm

E 2000mm

X Special customization

Process connection

FA flange DN50 PN1.6 stainless steel 316L (GB/T9119-2000)

FB flange DN80 PN1.6 stainless steel 316L (GB/T9119-2000)

FC flange DN100 PN1.6 stainless steel 316L (GB/T9119-2000)

FD flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

FE flange DN200 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Sealing/process temperature

2 Viton/-40～+130℃

3 Kalrez/-20～+130℃

4 Viton/-40～+200℃with heat sink (selected when the process temperature is greater than 100℃)

5 Kalrez/-20～+200℃with heat sink (selected when the process temperature is greater than 100℃)

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Purge

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.
