KAIDI latest radar level factory for transportation

Company Advantages
1. KAIDI has passed through a series of tests. It has been tested for insulating material, environmental safety, functional safety, acoustics an noise. Its power ratings can be customized e based on requests
2. The latest technology has been put into production of radar level . This product features very low no-load losses
3. The surface of this product is highly resistant to scratch. It is carefully polished and impervious to any external influence. This product has a high level of IP
4. The product has a reliable electrical system. It will auto stop working when open circuit, short circuit, and electric leakage occurs. This product has a high level of insulation
5. The product features great surface smoothness. All defects such as burrs and cracks are eliminated during the process of forming. The function of this product can be customized to meet the needs of liquids, granules, slurries, solids, and powder

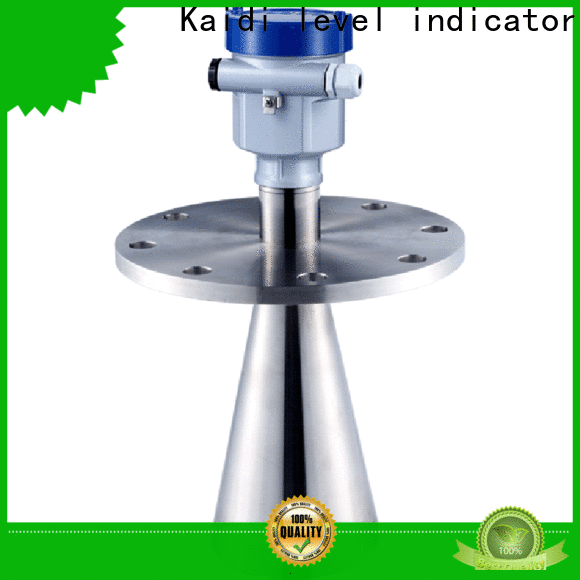

Feature: 　 Horn antenna, the echo signal is stronger.

Should be used: 　 adapt to the environment of various process conditions, can measure small dielectric constant medium.

Maximum range: 　70m

Measurement accuracy: 　±20mm

Process connection: 　 flange 316L

Antenna material: 　 stainless steel 316L/PTFE

Process temperature: 　-40…200°C

Process pressure: 　-1.0…40bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART



Detailed introduction:

GDRD54

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material

F Horn antenna 150/Stainless steel 316L

G Horn antenna 200/Stainless steel 316L

H Horn antenna 200 lengthened/stainless steel 316L

Antenna extension tube

A None

B 200mm

C 500mm

D 1000mm

X Special customization

Process connection

FB flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

FC flange DN200 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Sealing/process temperature

2 Viton/-40～+130℃

3 Kalrez/-20～+130℃

4 Viton/-40～+200℃with heat sink (selected when the process temperature is greater than 100℃)

5 Kalrez/-20～+200℃with heat sink (selected when the process temperature is greater than 100℃)

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Purge

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. Fully committed to the development and production of radar level , Guangdong Kaidi Energy Technology Co., Ltd. is highly regarded among customers. The company is replenished with a team of professionals who have years of experience. They insist on developing innovative products with distinctive functions and more attractive appearance, which helps the company earn the market.
2. We have a number of full and part-time direct production, engineering, management, and support personnel. Those in the direct production area operate three shifts, seven days a week.
3. We have a strong and professional customer service team who are an important part of our company. They have the abilities and strong expertise to provide advice and manage the negative emotion of customers. As a provider of social obligations, we see it as an obligation to effectively handle energy and resources and prevent environmental hazards in all of our regions.
