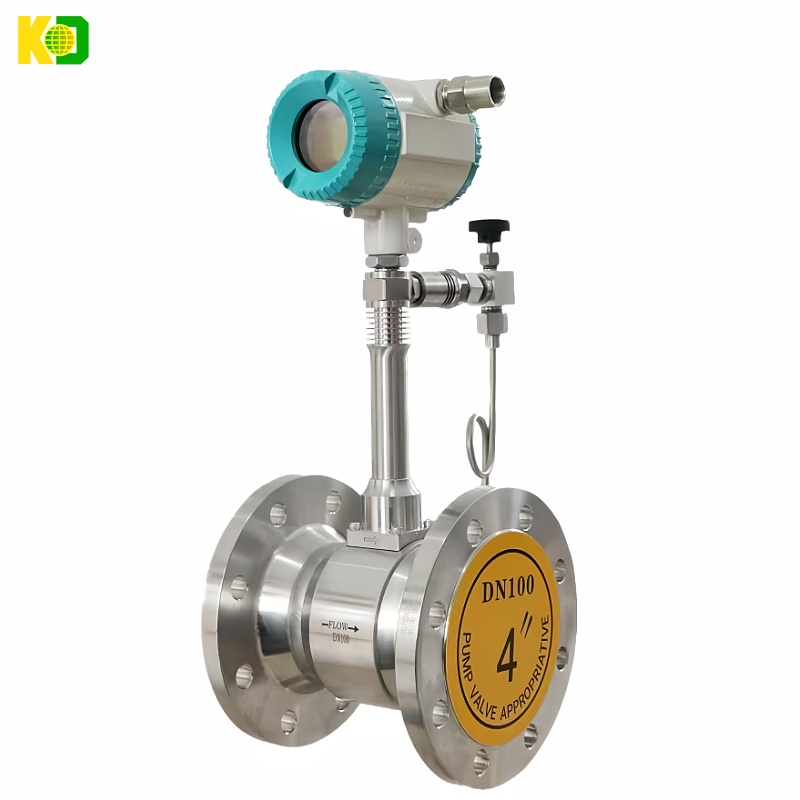

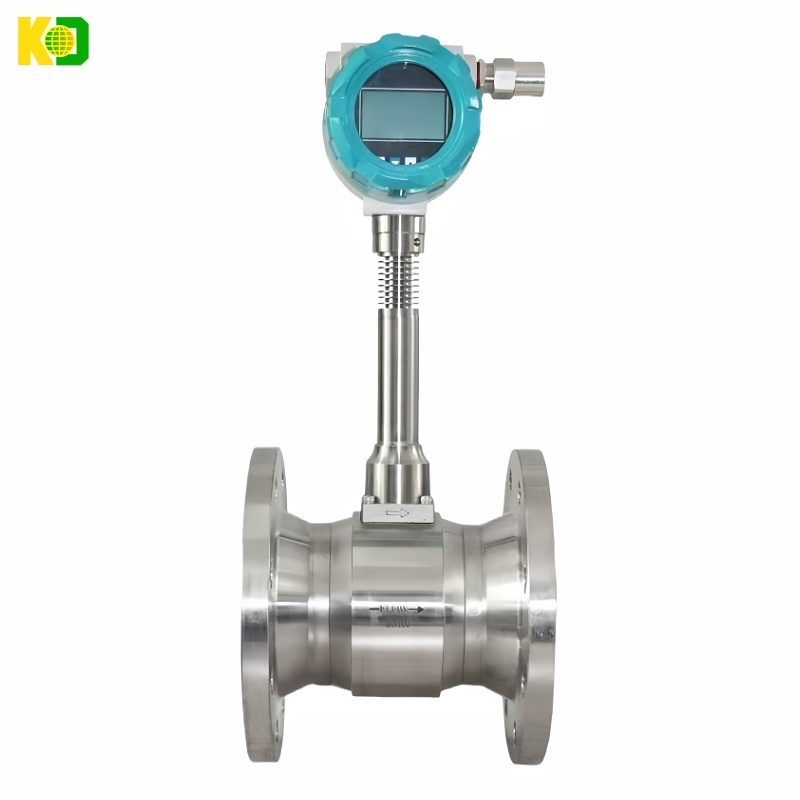

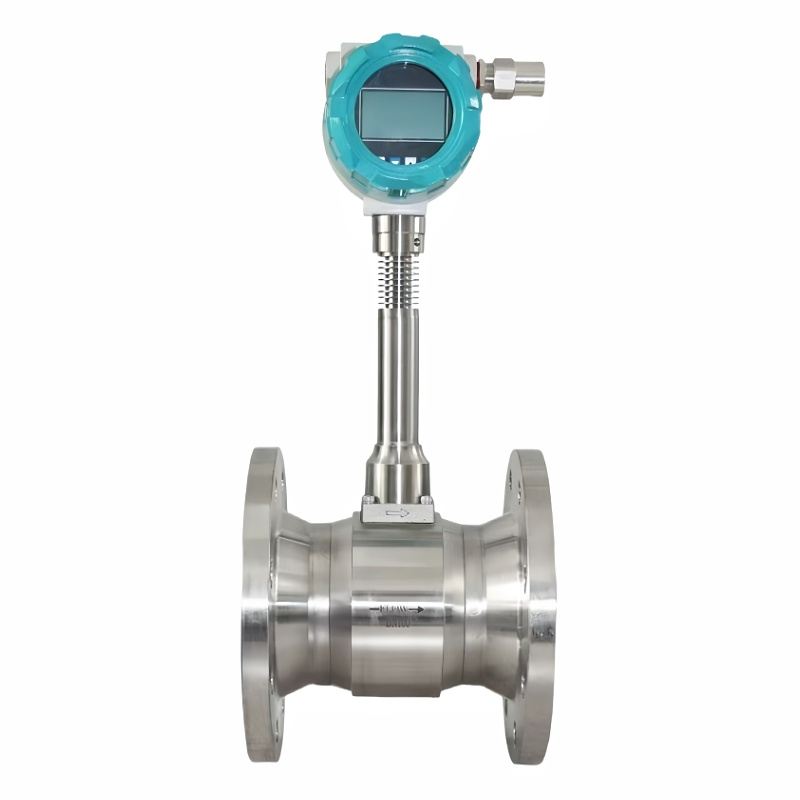

kaidi KD-UGBT type vibration-resistant vortex flowmeter

Product Features

Intelligent chip, optimised algorithms, to provide excellent vibration performance, measurement accuracy of 1%, range ratio of up to 50:1, integrated temperature and pressure compensation, direct display of the mass flow rate can be resistant to 2g vibration interference, the product's highest temperature resistance up to 420 ℃, pressure 25MPa output 4-20mA, optional RS485 or HART protocols

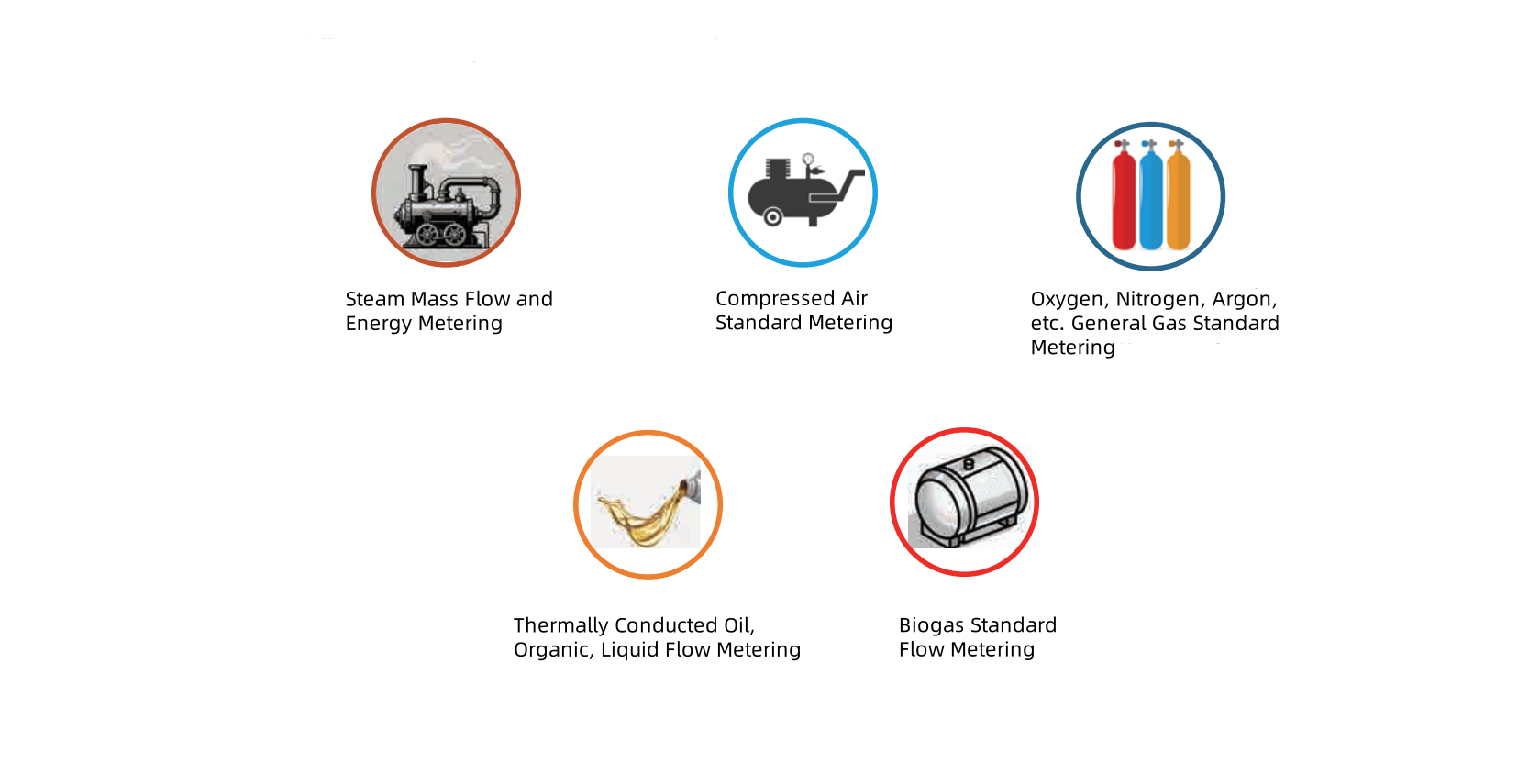

Areas of application

Widely used in petrochemical, pharmaceutical, food, environmental treatment, machinery and equipment, semiconductor and other industries.

4 Advantages of Vibration Resistant Vortex Flow Meters

I. Qualifications

Complete production qualification, guarantee product quality, with more than 50 production qualifications, in strict accordance with the ISO quality system.

II. Wide range

Vibration-resistant vortex flowmeter compared with the traditional vortex flowmeter, wide range ratio vortex through the multi-frequency signal capture technology, technology and adaptive filtering algorithms, the range ratio can be improved to 1:50, part of the calibre of the maximum flow rate can even reach 120m/s.

III. Wireless 4G telemetry data terminal

Vibration-resistant vortex flowmeter can be equipped with 4G wireless remote transmission module to achieve mobile phones and computers to receive cumulative flow, instantaneous flow, temperature, pressure data, greatly facilitating the customer meter reading and energy management.

IV. Easy 2g vibration strength

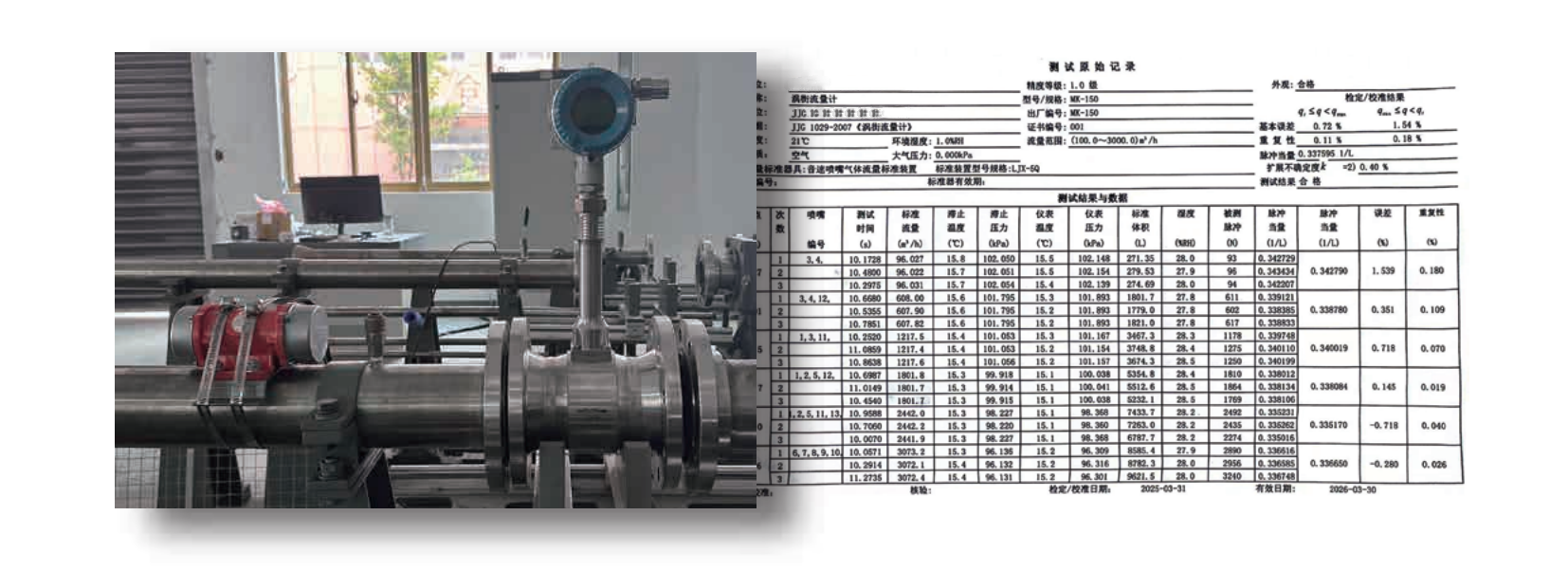

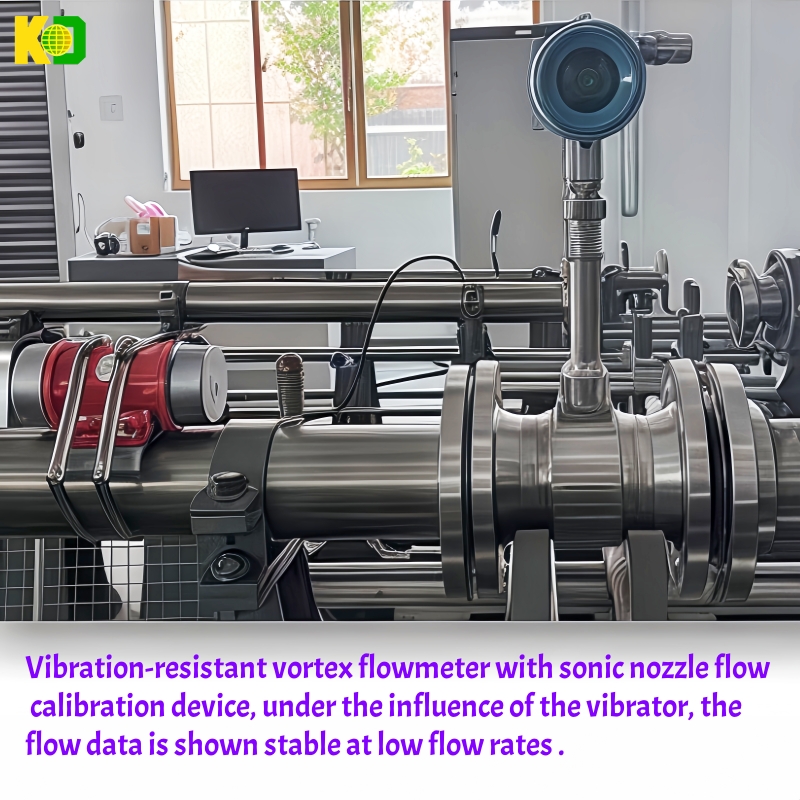

The vibration-resistant vortex flowmeter shows stable flow data at low flow rates under the influence of the vibrator by means of a sonic nozzle flow calibration device.

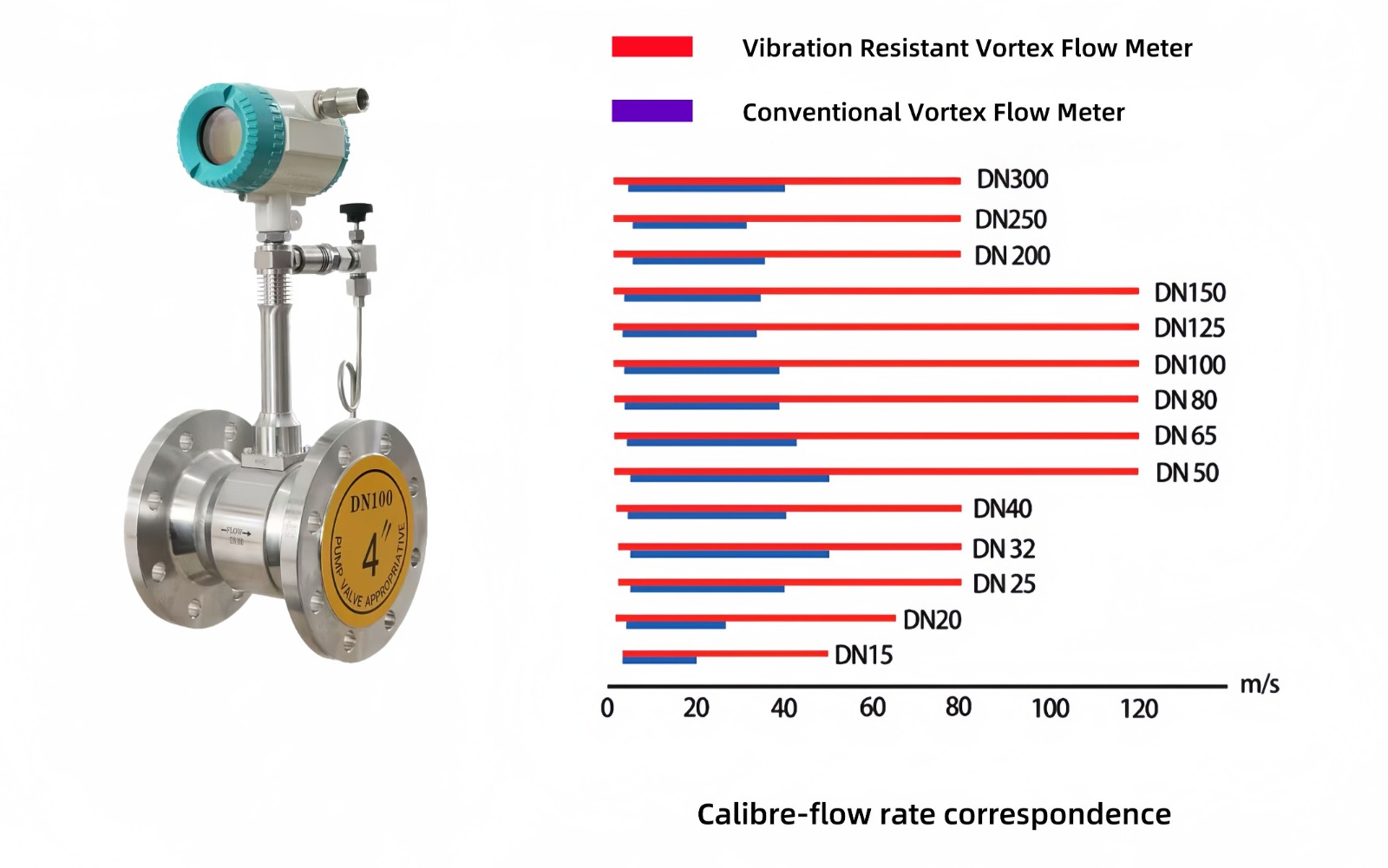

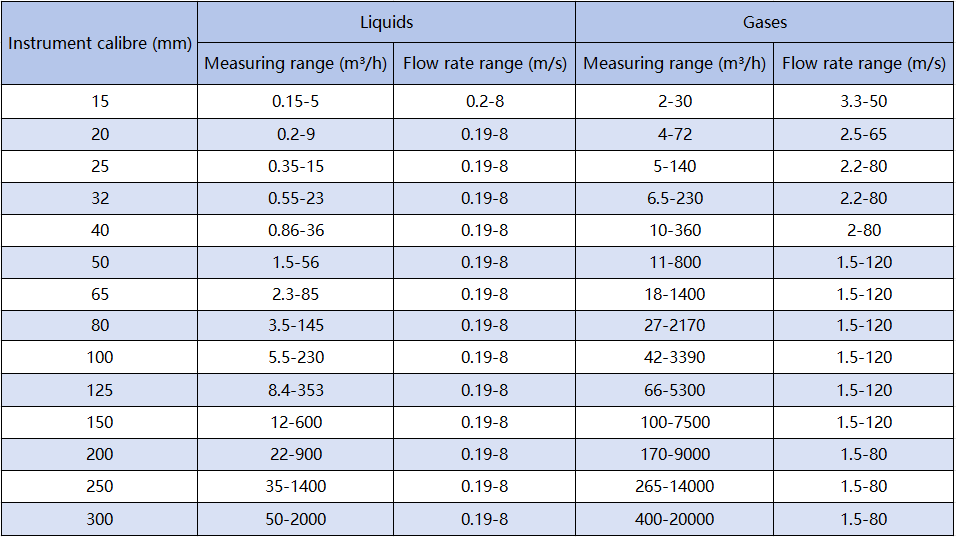

Flow range

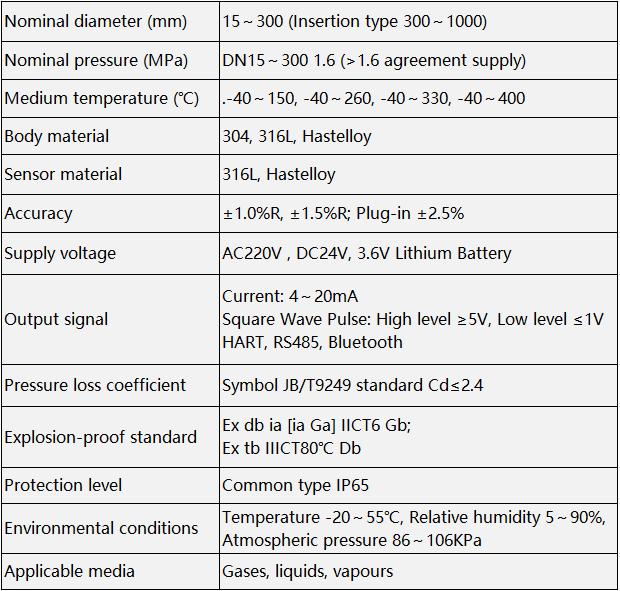

Technical parameters

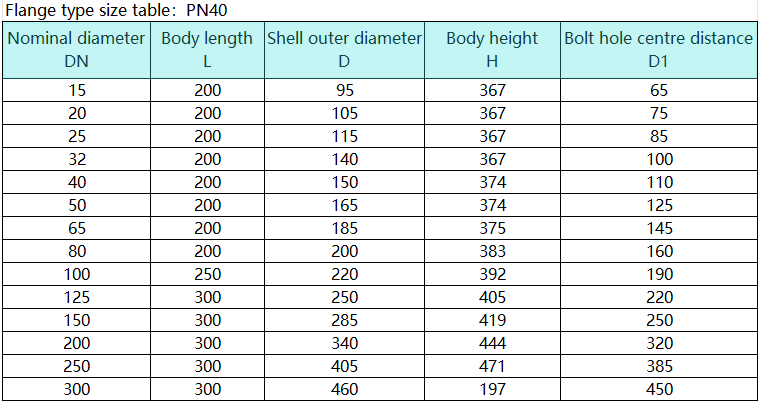

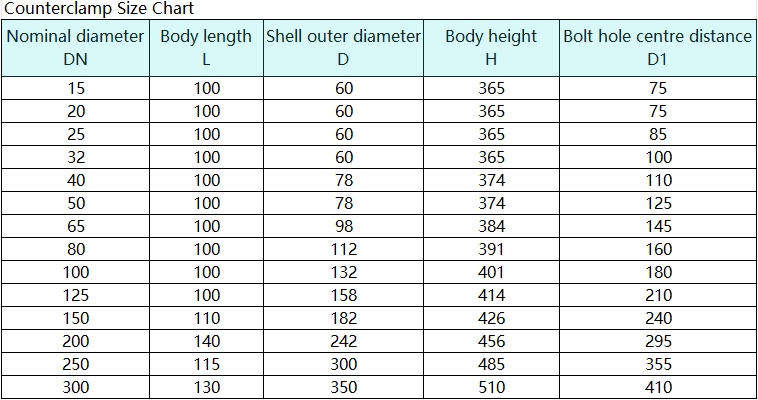

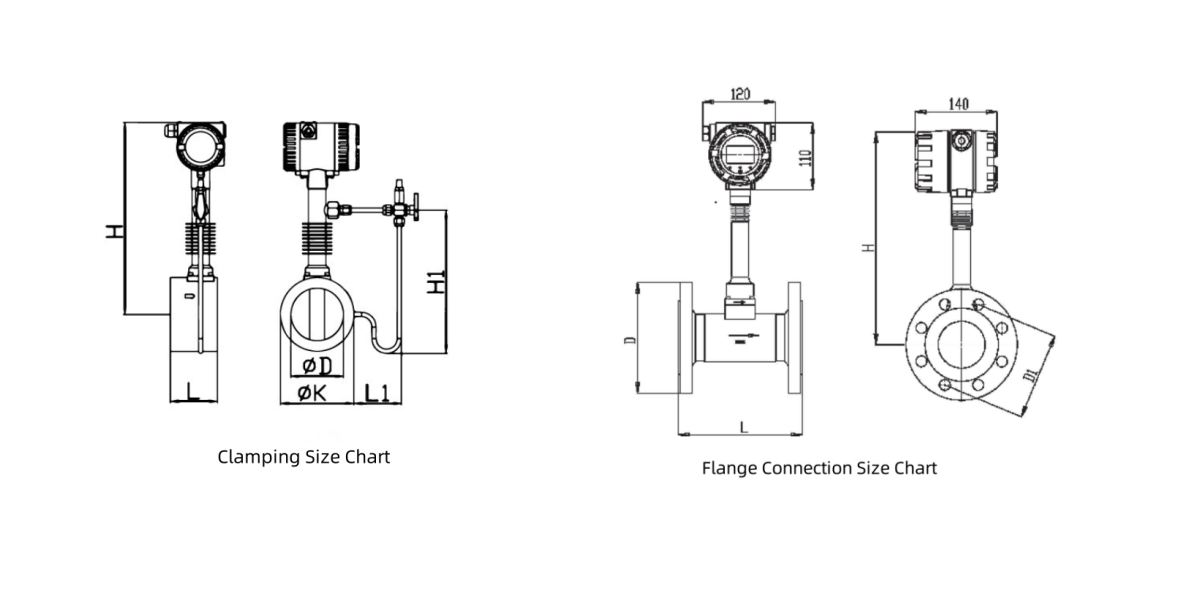

Overall dimensions
