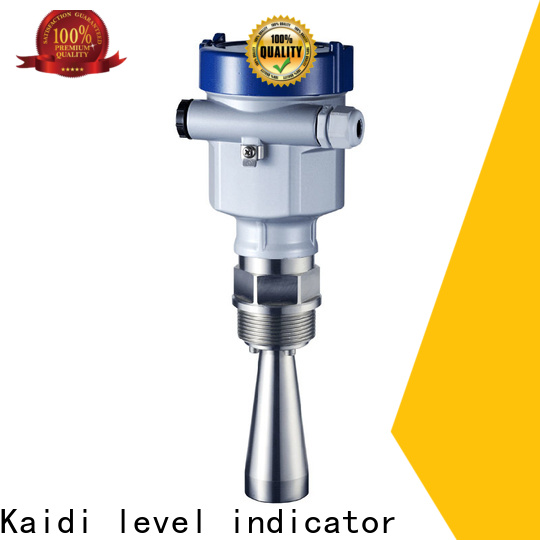

high-quality radar level sensor suppliers for industrial

Feature: 　Various patented antennas, anti-condensation, anti-hanging material, the minimum emission angle is 8 degrees. Solve the blindness of 6G radar in the small tank

　　　　　　 Large area, multiple echo problem.

Should be used: 　 is widely used in the measurement of various liquid levels. Such as: oil tank, etc.

Maximum range: 　30m

Measurement accuracy: 　±3mm

Antenna material: 　(T type) stainless steel 316L horn/PTFE vibrator

　　　　　　(V type) stainless steel 316L/PTFE vibrator

Antenna structure: 　 (T type) pointed cone vibrator, poor anti-condensation

　　　　　　(V type) cone vibrator, anti-condensation

Process temperature: 　(T type)(-40～250)°C

　　　　　　(V type)(-40～200)°C　

Process pressure: 　(T type)(-0.1～4)MPa

　　　　　　(V type)(-0.1～0.3)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　Two-wire system/four-wire system

Detailed introduction:

GDRD56

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Ex ia IIC T1～T6)

Antenna type/material

B (T type) horn antenna Φ48mm/stainless steel 316L

C (T type) horn antenna Φ78mm/stainless steel 316L

H (T type) horn antenna Φ98mm/stainless steel 316L

I (T type) horn antenna Φ98mm (extended)/stainless steel 316L

J (T type) Horn antennaΦ123mm/Stainless steel 316L

M (V type) horn antenna Φ98mm/stainless steel 316L/PFA430 cover

N (V type) horn antenna Φ98mm (extended)/stainless steel 316L/PFA430 cover

P (V type) horn antenna Φ123mm/stainless steel 316L/PFA430 cover

X Special custom seal/process temperature

2 Viton(-60～150)℃

3 Kalrez(-60～250)℃

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC /HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

H stainless steel two-chamber 316L/IP67

Cable entry

M M20x1.5

N ½ NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Ex ia IIC T1～T6) can only use "B" electronic components and "A" "G" type shell

The standard flange size refers to GB/T9119-2000 PN1.6MPa size, and the thickness is 15.

x******v

Alternatives are provided for the types of Kaidi Sensors radar level sensor. Coil, spring, latex, foam, futon, etc. are all choices and each of these has its own varieties. Its aluminum foil is not easy to break

c******a

The design of Kaidi Sensors radar level sensor takes advantage of high-tech. Its parts drawing, assembly drawing, arrangement diagram, schematic diagram, and shaft drawing are all available by the mechanical drawing technologies. The product is popular for its flame-resistant design

e******q

The design of Kaidi Sensors radar level sensor is unique. It follows principles either structurally (shapes of objects/garments) and/or aesthetically (visually or appearance of objects/fabric). The product is highly resistant to high voltage

a******w

A series of tests for Kaidi Sensors radar level sensor have been carried out. It has strictly tested in terms of the performance of the circuit board, plugs, voltage, housing, etc. The product has a perfect insulating property

v******l

Kaidi Sensors radar level sensor is strictly tested. On-site checks are carried out following detailed checklists compiled based on customer requirements, international regulations, safety standards, and our extensive know-how. The electrolyte inside the product is not volatile, which contributes to relieving the pressure in the sealed environment

p******a

radar level sensor The industrial-grade casing is selected, with ergonomic design, comfortable to hold, shock-resistant and drop-resistant, and will not feel tired even after long-term use.
