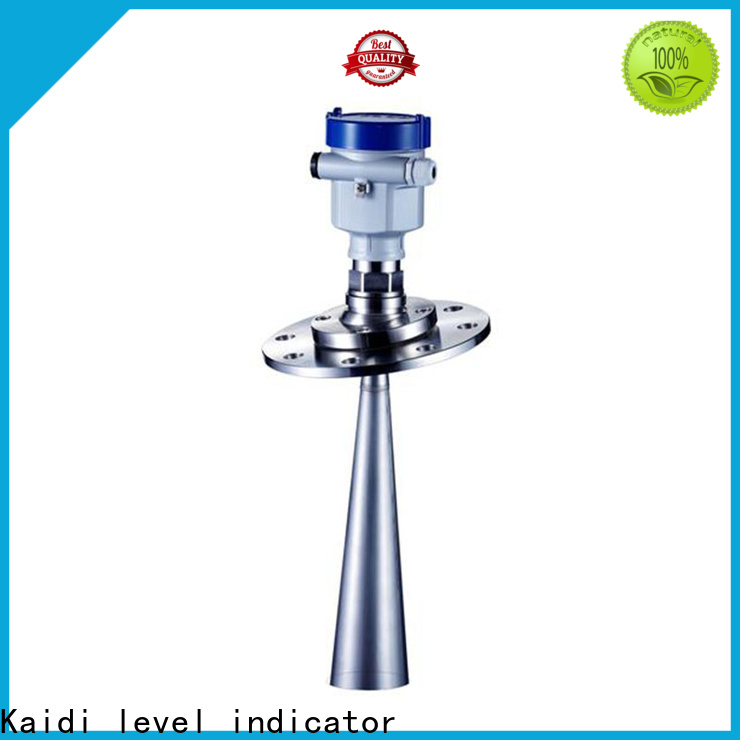

KAIDI custom radar level for business for transportation

Special features: 　Various patented antennas, anti-condensation, crystallization, hanging material, dust, beam concentration.

Should be used: 　 applied to the measurement of solid material level with short range.

Maximum range: 　15m

Measurement accuracy: 　±10mm

Antenna material: 　(T type) stainless steel 316L horn/PTFE vibrator

　　　　　　(V type) stainless steel 316L/PTFE vibrator

　　　　　　(W type) stainless steel 316L/PTFE vibrator

Antenna structure: 　 (T type) pointed cone vibrator, poor anti-condensation

　　　　　　(V type) cone vibrator, anti-condensation

　　　　　　 (W type) parabolic antenna, 4 degree opening angle

Process temperature: 　(T type)(-40～200)°C

　　　　　　(V type)(-40～200)°C

　　　　　　(W type)(-40～200)°C　

Process pressure: 　(T type)(-0.1～4)MPa

　　　　　　(V type)(-0.1～0.3)MPa

　　　　　　(W type)(-0.1～4)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　 four-wire system

Detailed introduction:

GDRD59

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material

K (S type) horn antenna Φ98mm/PP/with PTFE cover

L (S type) horn antenna Φ98mm (extended)/PP/PTFE cover

X Special customization

Process connection/material

GB (G) thread G1½A/PP

GX special customization

Flange matching/material

HA (L)DN100 flange/PP

HD (N)DN100 universal joint flange/PP

GX special customization

Sealing/process temperature

2 Viton(-60～80)℃

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC /HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Exia IIC T6) is limited to "B" electronic components and "A" type casing; intrinsically safe + flameproof type (Exd [ia]ia IIC T6)

Only use "D" electronic components and "D" shell; standard flange size refers to GB/T9119-2000 PN1.6MPa size, thickness is 15.
