KAIDI custom radar level factory for industrial

Company Advantages
1. KAIDI radar level is produced adopted advanced production technology. This product is notable for its strong overload capacity
2. The product directly contributes to improving productivity. Because it can work much faster than human and reduce errors, saving time for production. Since it is maintenance-free, this product significantly helps save operation costs
3. The product is 100% skin friendly and safe. During the production stage, the harmful substances that may cause skin irritation have been totally removed. It works stably under strong impact and vibration conditions

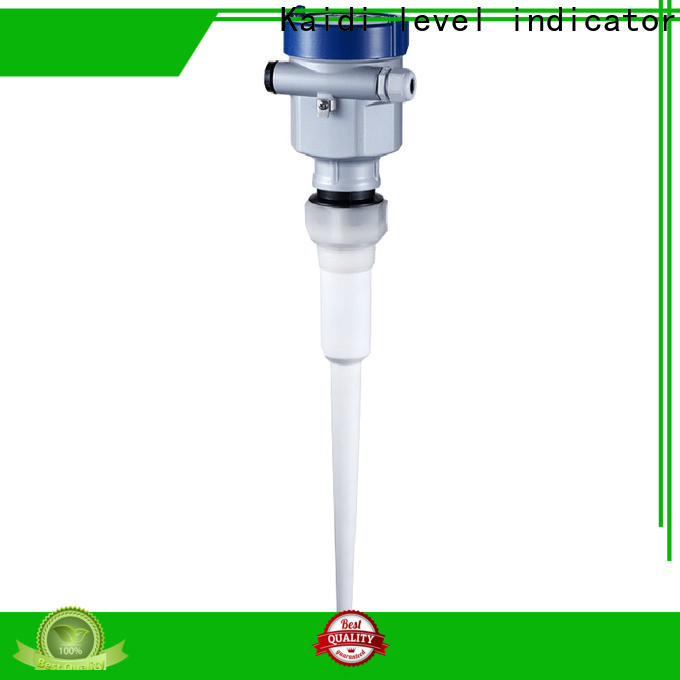

features: 　 Rod antennas made of PP or PTFE have a certain degree of corrosion resistance.

Should be used: 　 liquid measurement under simple process conditions.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　G1½A

Antenna material: 　PP/PTFE

Process temperature: 　-40…120°C

Process pressure: 　-1.0…3bar

Frequency range: 　6GHz　　　　　　

Signal output: 　two-wire system/four-wire system 4…20mA/HART　　　　



Detailed introduction:

GDRD51

license

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material/process temperature

A Plastic rod/PP/-40～+120 ℃



B Plastic rod/PTFE/-40～+120 ℃



Container takeover length

A 50mm

B 100mm

C 150mm

D 200mm

E 250mm

F 300mm

X Special customization

Process connection/material

GP thread G1½A

NP thread 1½NPT

YP Special

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. is an important production base of radar level , especially . KAIDI masters the skills and ensures the quality of radar level transmitter .
2. Guangdong Kaidi Energy Technology Co., Ltd.'s R&D team is composed by experienced engineers.
3. Guangdong Kaidi Energy Technology Co., Ltd. has imported machines and exquisite techniques. With the excellent service, Kaidi level indicator is highly valued by customers at home and abroad. Call now!
