Company Advantages
1. KAIDI level transmitter is provided with the highest standard of durability and quality. Our production team adopts with the RTM technology to create superior product with structural strength. This product is mainly used for the automation process
2. People say the product is totally worth the investment. Its moisture-wicking and cushioning performance enable it to become very popular. This product consumes little energy thanks to its energy-saving technology
3. The product has the advantage of high efficiency. It can produce more work consuming little energy and also less time. This product has the ability to accurately convert a physical parameter into a signal
4. This product absorbs moisture and sweats, and has a very high level of softness. It is also hypoallergenic and pesticide-free. This product has a high level of IP
5. The product has excellent strengths and stiffness. Made of heavy-duty metals that undergo stamping and thermal treating, it is able to withstand large pressure. Its shape can be customized according to needs

Introduction

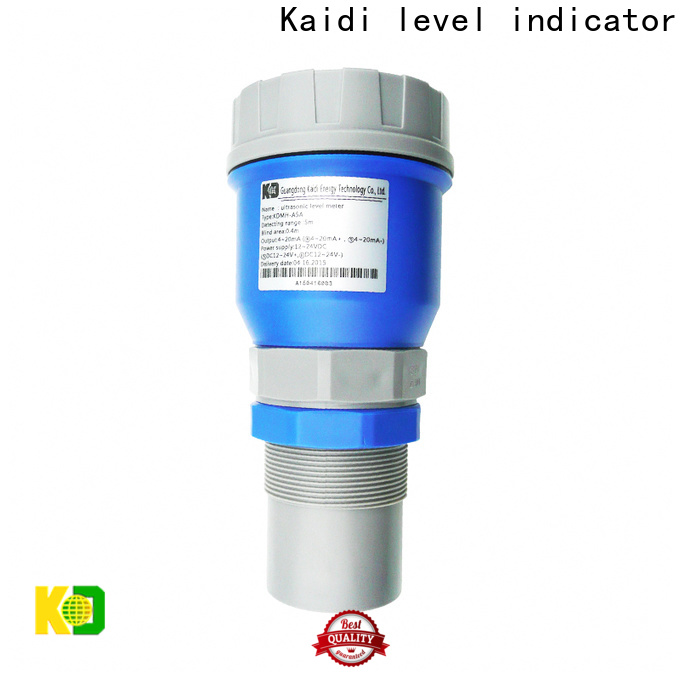

It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

Characteristics

• DC12-24V wide work voltage

• Backup and recovery parameter set

• Free adjustment of the range of analog output

• Set a filter value to remove

• Custom serial port data format

• Optional increment/difference distance measurement to measure air space or liquid level

• 1-15 transmitted pulse intensity depending on working conditions

• More choices depend on your requirement, as bellowing:

1. 3 NPN output

2. 2 relay output

3. Voltage output

4. RS485output connect with PC

5. Explosion-proof



III. Specifications

Range: 5. 8. 10. 12. 15m

Blind zone: ＜0.4-0.5m（different for range）

Measure error:  0.3%F.S

Display:  OLED

Display resolution: 1mm

Frequency:: 20～350KHz

Power: 12-24VDC

Power consumption: <1.5W

Output (optional):

4～20mA RL>600Ω（standard）

              1～5V\1～10V

              RS485

2 NPN

              2 relays (AC: 5A 250V DC: 10A 24V)

Material: ABS

Dimension: Φ92mm×198mm×M60

Electrical interface: M20X1.5

Installation: M60X2 or ￠61MM

Operating surroundings: normal temperature, normal pressure

Protection degree: IP65 (others optional)

Company Features
1. The self-manufacturing base adopts an integrated ISO quality control system, which brings customers high-quality products and reliable partnership.
2. We take "Customer First and Continual Improvement" as the company's tenet. We have established a customer-centric team who specially solve problems, such as responding to customers' feedback, giving advice, knowing their concerns, and communicating with other teams to make the problems be solved.
