wholesale level transmitter company for industrial

Company Advantages
1. KAIDI magnetic float level transmitter adopts the powerless flexible liquid crystal technology, which causes the local liquid crystal to be twisted by the pressure of the pen tip. With a simple structure, it is perfectly good for demanding industrial applications
2. R&D and marketing ability are two fundamental kinds of 'core competence' for Guangdong Kaidi Energy Technology Co., Ltd.. This product is characterized by excellent temperature stability
3. level transmitter are recognized for their merits of magnetic float level transmitter . This product is not susceptible to cracks

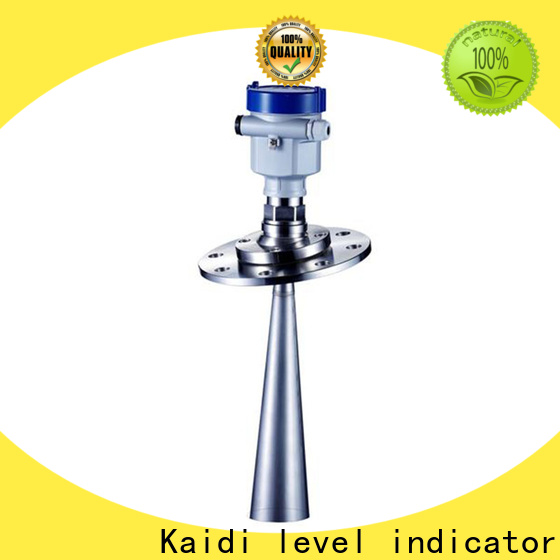

Special features: 　Various patented antennas, anti-condensation, crystallization, hanging material, dust, beam concentration.

Should be used: 　 applied to the measurement of solid material level with short range.

Maximum range: 　15m

Measurement accuracy: 　±10mm

Antenna material: 　(T type) stainless steel 316L horn/PTFE vibrator

　　　　　　(V type) stainless steel 316L/PTFE vibrator

　　　　　　(W type) stainless steel 316L/PTFE vibrator

Antenna structure: 　 (T type) pointed cone vibrator, poor anti-condensation

　　　　　　(V type) cone vibrator, anti-condensation

　　　　　　 (W type) parabolic antenna, 4 degree opening angle

Process temperature: 　(T type)(-40～200)°C

　　　　　　(V type)(-40～200)°C

　　　　　　(W type)(-40～200)°C　

Process pressure: 　(T type)(-0.1～4)MPa

　　　　　　(V type)(-0.1～0.3)MPa

　　　　　　(W type)(-0.1～4)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　 four-wire system



Detailed introduction:

GDRD59

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material

K (S type) horn antenna Φ98mm/PP/with PTFE cover

L (S type) horn antenna Φ98mm (extended)/PP/PTFE cover

X Special customization

Process connection/material

GB (G) thread G1½A/PP

GX special customization

Flange matching/material

HA (L)DN100 flange/PP

HD (N)DN100 universal joint flange/PP

GX special customization

Sealing/process temperature

2 Viton(-60～80)℃

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC /HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Exia IIC T6) is limited to "B" electronic components and "A" type casing; intrinsically safe + flameproof type (Exd [ia]ia IIC T6)

Only use "D" electronic components and "D" shell; standard flange size refers to GB/T9119-2000 PN1.6MPa size, thickness is 15.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. is in a leading position in China's magnetic float level transmitter research and development field. Staff working in Guangdong Kaidi Energy Technology Co., Ltd. are all well-trained.
2. The cutting-edge technology adopted in level transmitter helps us win more and more customers.
3. Our production capacity occupies steadily in the forefront of the radar level transmitter industry. KAIDI hopes to provide the excellent quality and professional service of rosemount level transmitter . Inquire now!
