top liquid level transmitter factory for work

GDRD82

Features: high accuracy; strong anti-interference ability, not subject to temperature

　　　　　 Influence of degree, humidity and wind; installation, adjustment

　　　　　 Trial and easy to use; low power consumption.

Should be used: suitable for highly corrosive liquids, steam, foam

Maximum range: 　30m

Measurement accuracy: 　±2mm

Antenna material: 　 stainless steel 316L/PTFE diaphragm or stainless steel 316L/FEP diaphragm

Antenna structure: 　 pointed cone vibrator

Frequency range: 　80GHz

Signal output: 　4～20mA/HART

                     RS485/MODBUS protocol

Electric source: 　Two-wire single cavity (4～20)mA (12～30)VDC standard type

                                                             (12～30) VDC intrinsic safety type

                     Four-wire single cavity (RS485) (9～27) VDC standard type

                                                             (24±10%) VDC intrinsically safe type

                     Four-wire two-chamber (4～20)mA （18～25）VDC standard type

                     Four-wire two-chamber (4～20)mA 24 VDC standard type

Detailed introduction:

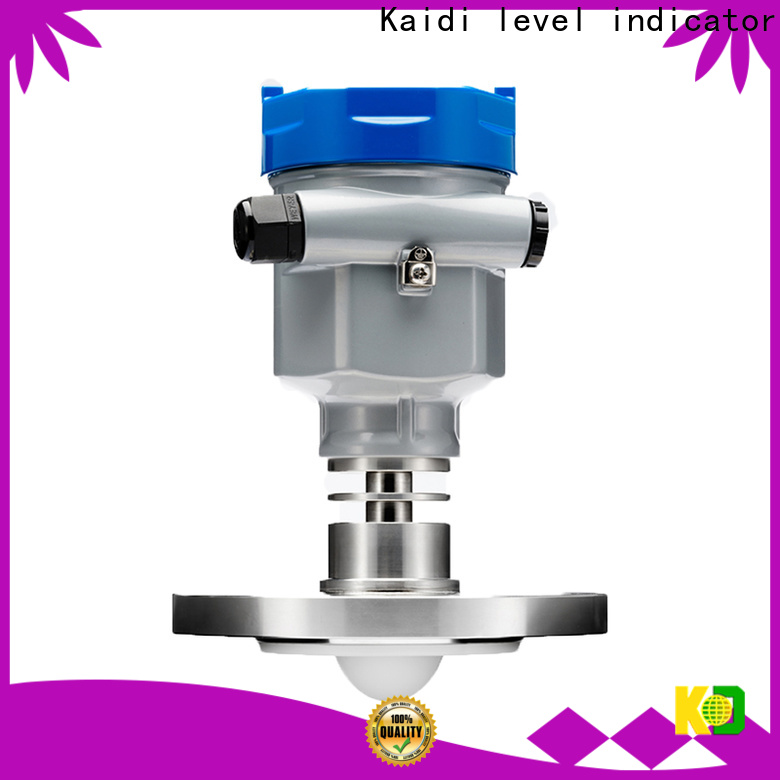

GDRD82

License form

P Standard type (non-explosion-proof)

I Intrinsically safe type (Ex ia ⅡC T2～T6 Ga)

G intrinsic safety + flameproof type (Ex d ia [ia Ga] ⅡC T2～T6 Gb)

※See note 1

Antenna type

DS (-40～150)℃ (-0.1～2.5)MPa 50mm lens diameter single-piece heat dissipation

DQ (-40～200)℃ (-0.1～2.5)MPa 50mm lens diameter multi-piece heat dissipation

ES (-40～150)℃ (-0.1～2.5)MPa 80mm lens diameter single-piece heat dissipation

EQ (-40～200)℃ (-0.1～2.5)MPa 80mm lens diameter multi-piece heat dissipation

※See note 4

Lens material

A PTFE(-40～200)℃

B FEP (-40～150)℃

Installation method

FA flange DN50 PN16 GB/T9119-2000 stainless steel 316L

FB flange DN80 PN16 GB/T9119-2000 stainless steel 316L

FC flange DN100 PN16 GB/T9119-2000 stainless steel 316L

FD flange DN125 PN16 GB/T9119-2000 stainless steel 316L

FE flange DN150 PN16 GB/T9119-2000 stainless steel 316L

FX special customization

※See note 3

Process seal

X None

Electronic components

B (4～20)mA/HART two-wire system (single cavity)

C (4～20)mA/24 VDC/HART four-wire system (two chambers)

C (4～20)mA/（18～25)VDC/HART four-wire system (two chambers)

R RS485/MODBUS protocol (single cavity)

X Special customization

※See note 1

Enclosure rating

B Plastic PBT/IP66

A Aluminum ADC12/IP67

G Stainless steel 316L/IP67

D Aluminum two-chamber ADC12/IP67

H stainless steel two-chamber 316L/IP67

※See note 1

Cable entry

M M20x1.5

N ½NPT

Display/programming

A programmer with Bluetooth

B Programmer without Bluetooth

C Remote display with Bluetooth

D Remote display without Bluetooth

X None

※See note 2

Note:

1. Intrinsically safe instruments (Ex ia IIC T2～T6 Ga) are limited to "B, R" electronic components; "A, B, G" housings.

2. Intrinsically safe + flameproof instrument (Ex d ia [ia Ga] ⅡC T2～T6 Gb) is limited to "C, E" electronic components; "D, H" type housing.

3. Lens diameter 50mm, flange diameter minimum DN50, maximum DN100; lens diameter 80mm, flange diameter minimum DN80, maximum DN150.

4. Antenna form DQ and EQ can only use "A" type lens material.

caveat:

1. Intrinsically safe + explosion-proof instrument, the explosion-proof chamber is strictly forbidden to open the cover;

2. The non-metallic parts of the product casing have potential electrostatic charge to prevent the risk of ignition caused by friction and impact; contact with liquid media is strictly prohibited during installation and use; wipe with a damp cloth when cleaning.

3. When the shell contains aluminum ADC12 or plastic PBT, to prevent the risk of ignition caused by impact or friction.

4. During maintenance, the non-metallic parts of the product casing and antenna should avoid the risk of ignition caused by friction or impact.
