Pressure Transmitter pressure transducer 4-20mA

这里可以自定义设置
Pressure Transmitter pressure transducer 4-20mA

Pressure Transmitter pressure transducer 4-20mA
  • Pressure Transmitter pressure transducer 4-20mA
  • 123.jpg
Pressure Transmitter pressure transducer 4-20mA
B站不支持收货地址
B站不支持库存规格
Lead time
5-10 days
Payment Term
TT, Paypal, Credit card, Western union
MOQ
1 SET
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
这里可以自定义设置

PRODUCT INTRODUCTION



Accuracy

0.25, 0.5

Overload capability

2-3 times of Measuring range

Long-term stability

<0.2%FS/yr, <0.5%FS/yr

Power supply

15 ~ 36 VDC(rated 24VDC)

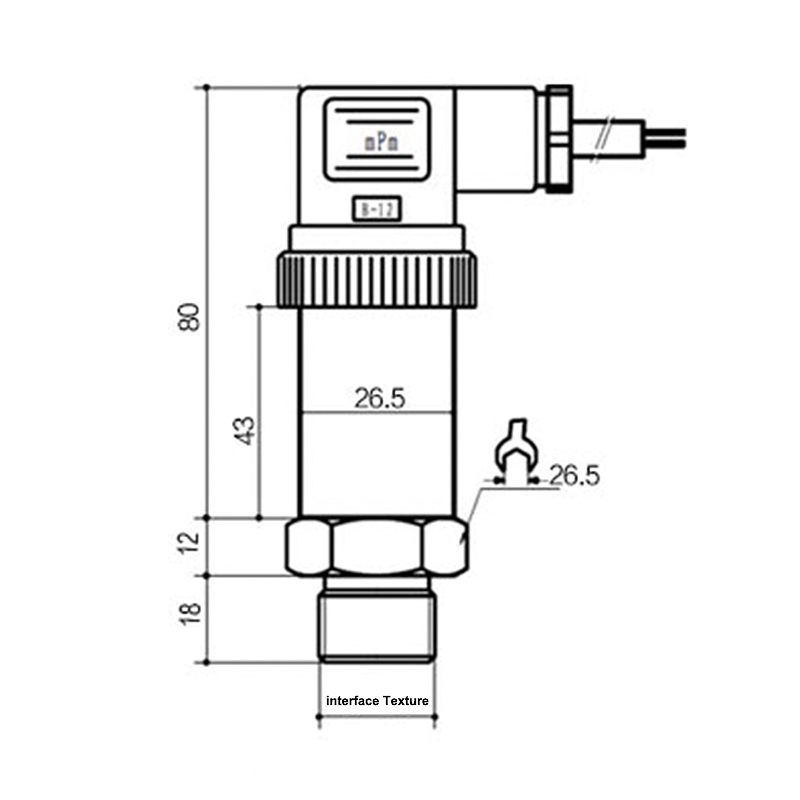

Process connection

M20×1.5or customized

Weather proof

IP65

Optional radiator

Up to 300°C

INSTALLATION SAMPLE

这里可以自定义设置

PRODUCT  INTRODICYION

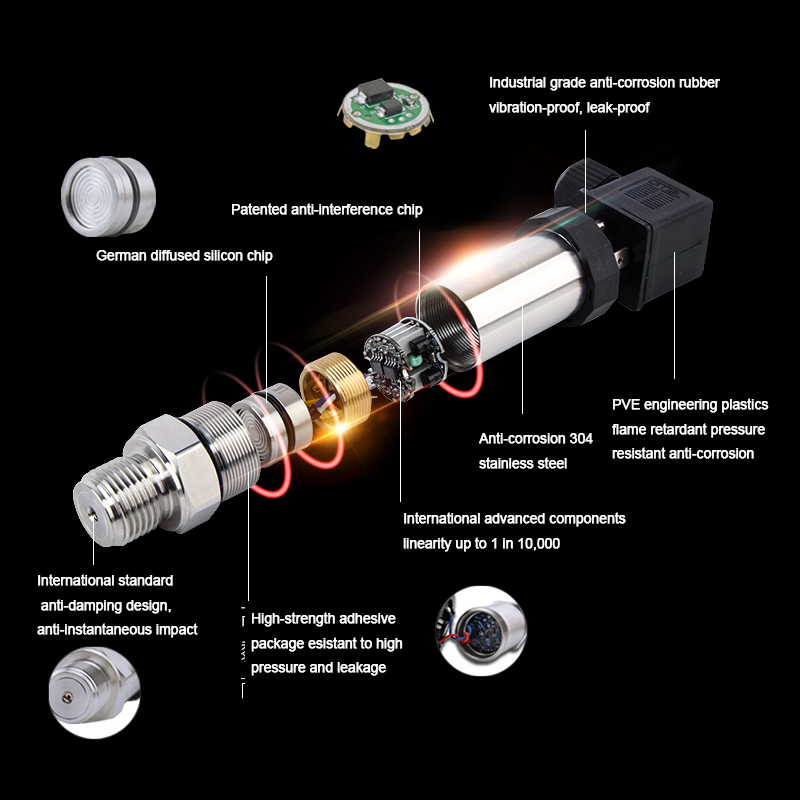

A pressure transducer, often called a pressure transmitter, is a transducer that converts pressure into an analog electrical signal. Although there are various types of pressure transducers, one of the most common is the strain-gage base transducer.


The conversion of pressure into an electrical signal is achieved by the physical deformation of strain gages which are bonded into the diaphragm of the pressure transducer and wired into a wheatstone bridge configuration. Pressure applied to the pressure transducer produces a deflection of the diaphragm which introduces strain to the gages. The strain will produce an electrical resistance change proportional to the pressure.


Our technical team will check your specifications and make a best solution for you.

社媒暂无评论

More  Model available for all appication, different termperture and pressure!
