PRODUCT INTRODUCTION

Pressure transmitter is universal industrial application for gauge, absolute measured with ideal solution for different range measurement, adopts advanced diffusion silicon sensor as sensitive components, digital and stable circuit, precise temperature compensation, excellent sealing and assembly to guarantee the high quality and stability, widely used in various pressure measured industry.

Features

• High accuracy and stability: ±0.1% , ±0.2%

• Gauge, absolute pressure measured

• Range: -100Kpa to 60Mpa

• 4-20mA, 2 wire ,0-10VDC 3 wire output

• Process connection: G1/2’’,1/2’’NPT, 1/4’’NPT, M20x1.5

• With anti- lightning, anti-RF interference

• Digital electrical board, water-proof, dust-proof, anti-interference With reversed polarity protection and instantaneous over current and over cross-voltage protection

• 316L stainless steel diaphragm, stainless steel material

• suitable for various complicated environment

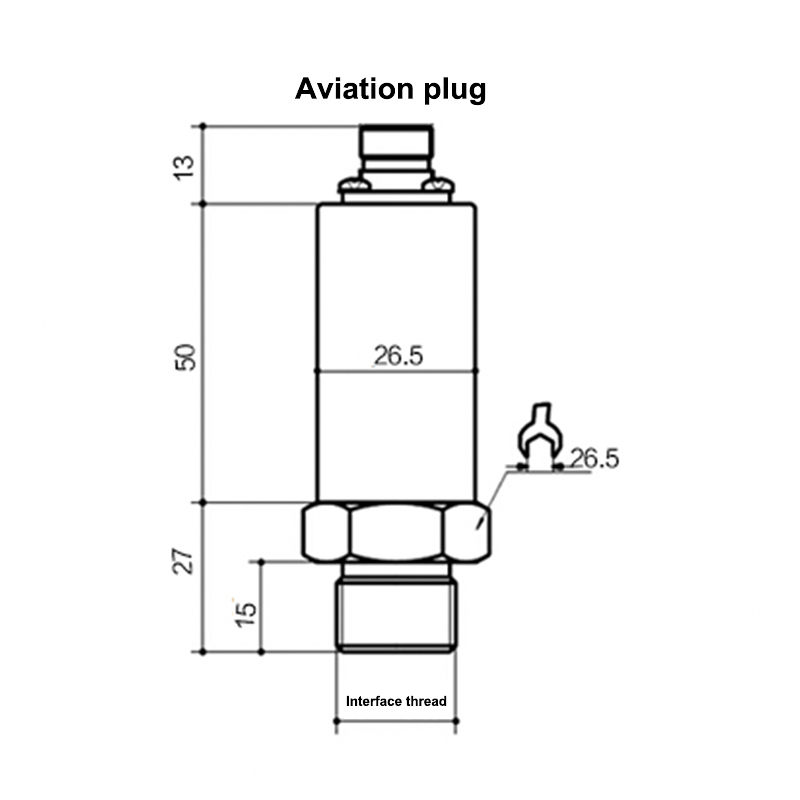

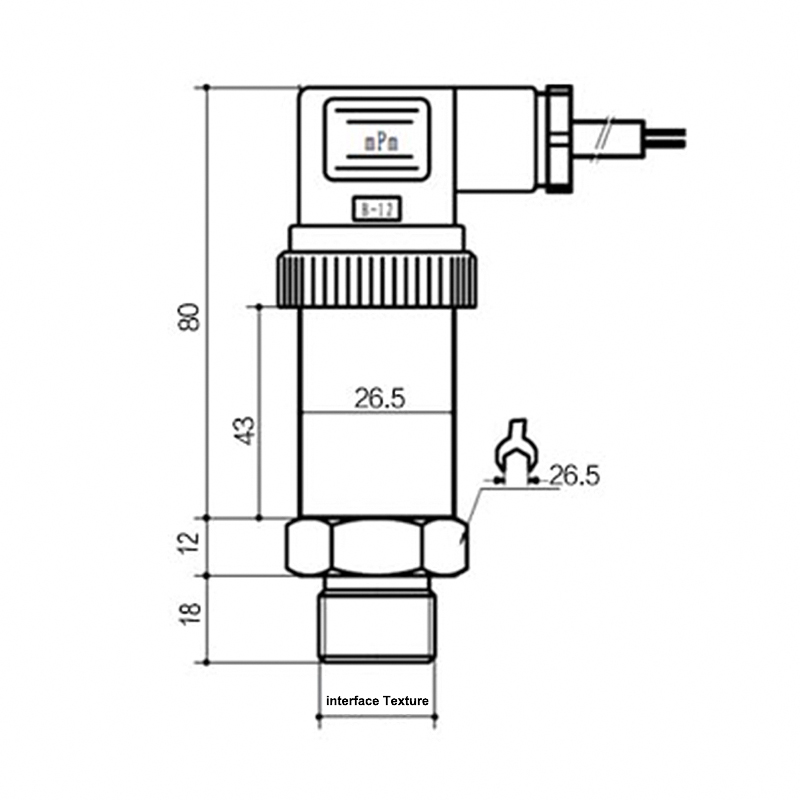

WIRING DIAGRAM & DRAWING

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.

More Model available for all appication, different termperture and pressure!
