Company Advantages
1. top mounted magnetic level gauge is developed with simple construction and reliable design. This product stands out for its high sensitivity
2. top mounted magnetic level gauge products from Guangdong Kaidi Energy Technology Co., Ltd. pursue high quality and low prices. This product has a high level of insulation
3. This product contains no toxic substances. The harmful chemical substances that would be residual have been totally removed during production. It generates only little magnetic interference

Introduction

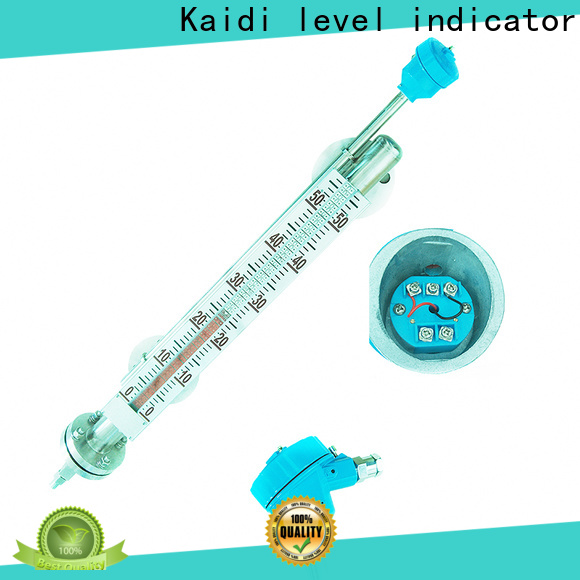

KDMLI is KAIDI’s standard, high performance magnetic level indicator. KDMLI is a single chamber design with either 2", 2.5", or 3" chamber diameter, as required by the application. There are twelve basic configuration styles, including top mount models. KDMLI magnetic level indicators are produced in a wide range of materials of construction, including plastics. KAIDI also offers one of the most complete selections of process connection types and sizes in the industry. KDMLI may be equipped with a variety of level transmitters and switches, as well as, flag and shuttle indicators with or without stainless steel scales. This enables the KDMLI to be a complete level and monitoring control.

Specifications

Medium Density	≥ 0.5Kg / L
Medium pressure	≤ 5.0Mpa
Medium temperature	-40 ~ 130 °C / 200 °C
Measuring range	300-6000mm
Accuracy	± 8mm
Measuring tube material	SUS304/SUS316L/PP/PVDF
Float material	SUS304/SUS316L
Connection	Flange connection (Customizable)
Top Connection	Dome + race header (Customizable)
Limit switch	Customizable
Whether the remote	Customizable
Whether the explosion	Customizable
