latest high precision radar level meter manufacturers for transportation

Company Advantages
1. The well-designed high precision radar level meter makes it more special than other similar products. This product has the feature of explosion-proof
2. Guangdong Kaidi Energy Technology Co., Ltd.'s operating business awareness has continued to rise. Its power ratings can be customized e based on requests
3. The product has been inspected to strict quality standards. There is little variation between its measuring values
4. The product excels in performance, durability and usability. The function of this product can be customized to meet the needs of liquids, granules, slurries, solids, and powder
5. The quality inspection of the product is carried out by the QC team. The inspection is not only in line with international standards but meets the requirements of the customers. Due to its corrosive coatings, this product is highly rust-proof

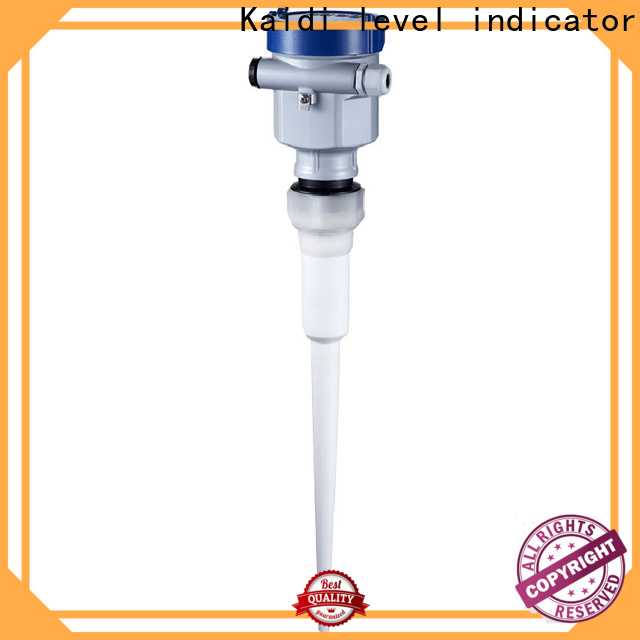

features: 　 Rod antennas made of PP or PTFE have a certain degree of corrosion resistance.

Should be used: 　 liquid measurement under simple process conditions.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　G1½A

Antenna material: 　PP/PTFE

Process temperature: 　-40…120°C

Process pressure: 　-1.0…3bar

Frequency range: 　6GHz　　　　　　

Signal output: 　two-wire system/four-wire system 4…20mA/HART　　　　



Detailed introduction:

GDRD51

license

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material/process temperature

A Plastic rod/PP/-40～+120 ℃



B Plastic rod/PTFE/-40～+120 ℃



Container takeover length

A 50mm

B 100mm

C 150mm

D 200mm

E 250mm

F 300mm

X Special customization

Process connection/material

GP thread G1½A

NP thread 1½NPT

YP Special

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.

Company Features
1. Improving the quality awareness of employees also contributes to the good quality of high precision radar level meter .
2. Guangdong Kaidi Energy Technology Co., Ltd. adheres to the concept of customer first. Inquire now!
