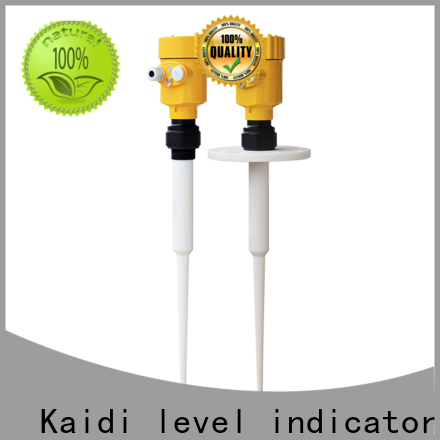

KAIDI wholesale radar transmitter supply for industrial

Company Advantages
1. radar transmitter is exquisite in craftsmanship. This product can repeat the same measurement many times
2. Our QC team monitor procedure as per quality system requirements. This product has a high level of IP
3. This product has the desired safety and security. Not only the housing is made of high insulation materials, but also the metals electric parts are professionally encapsulated to prevent any leakage. This product has the ability to accurately convert a physical parameter into a signal
4. The product is highly resistant to wear and tear. Made of textile fibers which feature high breaking strength and fastness to rubbing, it has long durability. This product is characterized by excellent temperature stability
5. The product is highly resistant to bacteria. As the surface is non-porous. it doesn't allow any dirt or spills to sit and serve as a breeding site for germs. This product consumes little energy thanks to its energy-saving technology

Application :

6GHz radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.

The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

1.   Dimensions  of  Instruments



2. The  Electrical  Connection

l  The power supply voltage:

 l  Explosion Proof Connection

The intrinsic safety version sensors (Exia IIc T6) use Alu-die casting housing and filling Silicone rubber sealants internal structure aimed to prevent sparks resulted from circuit failure from leaking out. It is applicable for the continuous level measurement of flammable medium under Exia IIc T6.

A safety barrier FBS-2 must be used together with the intrinsic safety instrument. It is an associated device to this product for the power supply of this product. The main specification is intrinsic safety: Exia IIC, voltage of power supply: 24V DC±5%, short-circuit current: 135mA, operating current: 4...20mA.

All cables must be shielded. The max length is 500m for the cable from the barrier to the sensor. Stray capacitor≤0.1μF/Km, stray inductance 1mH/Km. Instrument must be connected to the ground potential. Any unapproved associated device is not allowed to be used.



3.  Protection Grade :

 This instrument meets the protection class IP66/67 requirements, please ensure the waterproof cable sealing head. The following diagram:



 How to install to meet the requirements of IP67:

Please make sure that the sealing head is not damaged.

Please make sure that the cable is not damaged.

Please make sure that the cable for use with electrical connection specification.

Cable into the electrical interface before its curved downward, ensure that the water will not flow into the shell, see the①

Tighten the cable seal head, see the②

Please electrical interface will not use blind plug tight, see the③



4.  Technival Parameters:

Company Features
1. Every piece of radar transmitter has to go through material checking, double QC checking and etc.
2. The goal of Guangdong Kaidi Energy Technology Co., Ltd. would be the leader among the international brands. Ask!
