KAIDI turbine flow meter supply for industrial

Company Advantages
1. Strict defects and defects inspection of raw materials such as fabrics and accessories of KAIDI are performed to ensure the high quality of finished products. This product stands out for its high sensitivity
2. turbine flow meter has got customer's favorable comment. It is able to quickly and effectively detect and respond to some types of input
3. The product is fireproof. The material used for the cover is double PVC coated fabric, which meets the fire retardant standards like B1/M2. This product is notable for its strong overload capacity
4. The product is safe to use. Because if the blower is suddenly cut off, the product will deflate slowly instead of coming down all at once. This product features very low no-load losses

Brief Introduction

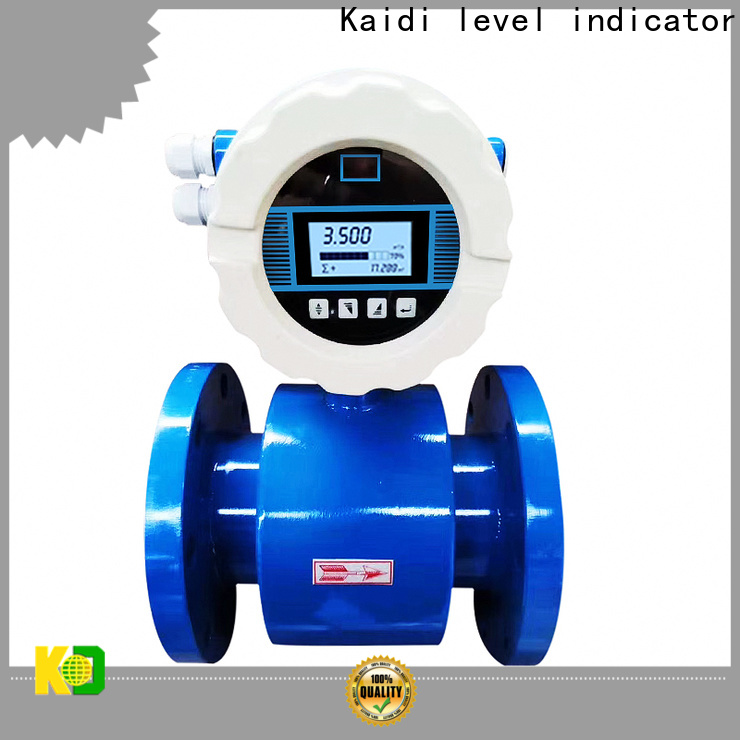

KFL-DG series electromagnetic flowmeters follow the Faraday law of electromagnetic induction. They can be used to accurately measure the flow rate of liquids which are electrical conducting, caustic, and mixed with liquids and solids. They are widely used throughout industries of petroleum, chemical engineering, pharmacology, papermaking, electric power, environmental protection and so forth. Their antiknock level is ExdIIBT4.the feature of Kaflon High Quality& Accuracy Low Cost Electromagnetic Flow meter is 1- zero pressure losing; 2- High accuracy, Stable performance, high level of anti-vibration and anti-jamming, wide measuring dimensions. 3- Corrosion protection, abrasion resistant;4.life long time.

Features

1)No Moving Parts, Virtually No Pressure Loss;

2)Corrosion protection, abrasion resistant;

3)High accuracy, Stable performance;

4)High level of anti-vibration and anti-jamming, wide measuring dimensions.

5)Multi-Output Interface4~20mA, Pulse, Alarm Outputs, RS-485 and Modbus Communication

Operating Principle

Faradays Laws of Induction form the basis for the electromagnetic flowmeters. It states that a voltage is induced in a conductor as it moves through a magnetic field.

This principle is applied to a conductive fluid which flows through a magnetic field generated perpendicular to the flow direction (see Schematic).

The voltage induced in the fluid is measured at two electrodes, installed diametrically opposed. This signal voltage U_E is proportional to the magnetic induction B, the electrode spacing D and the average flow velocity v. Noting that the magnetic induction B and the electrode spacing D are constants, a proportionality exists between the signal voltage UE and the average flow velocity v. The equation for the volume flow shows that the signal voltage UE is linear and proportional to the volume flowrate. The induced signal voltage is processed in the converter into scaled, analog and digital signals.

Specifications

- Size: DN10~DN600 (PTFE) ; DN40~DN1200 (NBR)

- Standard pressure: PN1.0MPa~40MPa;

- Accuracy: ±0.5%~±1.0%;

- Supply power: 85 to 250VAC (45 to 63Hz), 16 to 36VDC;

- Signal output: Current Output: 4~20mA;

- Frequency Output: 0~5000Hz with photoelectric isolation;

- Pulse Output: 0.001~1.000m3/cp, 0.001~1.000 Ltr/cp, 0.001~1.000USG/cp,0.001~1.000 UKG/cp;

- Alarm Output: Upper Alarm-ALMH, Lower Alarm-ALML with photoelectric isolation;

- Communications: RS-232 without galvanic isolation, RS-485 with Galvanic isolation;

- Ambient temperature: -10~60;

- Relative humidity: ≤85%RH;

- Atmospheric pressure: 86KPa~106KPa;

- Applicable Fluid: electrically conducting liquid;

- Fluid temperature:-25~ +65 and -25~ +180;

- Electrical conductivity: 5us/cm.

Company Features
1. As a China-based company, Guangdong Kaidi Energy Technology Co., Ltd. specializes in designing and manufacturing turbine flow meter with years of experience in the marketplace. Our products and service are highly recognized by customers all over the country. Products have been extensively exported to Southeast Asia, Middle East, Europe, the United States, and other countries.
2. We have entered the global market many years ago. Currently, we have earned a relatively large foreign market share mainly due to our strong R&D and manufacturing abilities.
3. So far, we take pride in that we have covered our sales network around the world. We have enhanced and optimized our marketing channels to more efficiently provide more products to our customers. We are widely appraised for our professional service for electromagnetic flow meter . Call now!
