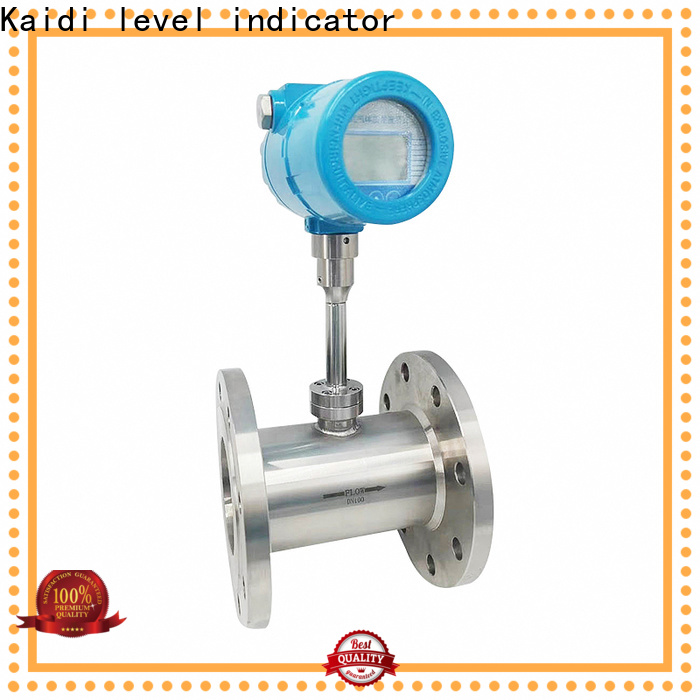

KAIDI top turbine flow meter supply for transportation

Company Advantages
1. The quality control of KAIDI is considered to be sophisticated. The control limits are established for a certain process such as temperature. Its shape can be customized according to needs
2. Many homeowners or business owners have embraced this product in a bid to save money as well as conserve energy and the environment. With a simple structure, it is perfectly good for demanding industrial applications
3. The product is hard-wearing. The highly wearing resistant materials enable it to endure daily friction or harsh wearing conditions. Due to its corrosive coatings, this product is highly rust-proof
4. This product features the desired durability. It can endure daily pressure or resist the damage of fingernails and sharp objects. This product has a high level of IP

A magnetic flow meter (mag meter, electromagnetic flow meter) is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube.

If the magnetic field direction were constant, electrochemical and other effects at the electrodes would make the potential difference difficult to distinguish from the fluid flow induced potential difference. To mitigate this in modern magnetic flowmeters, the magnetic field is constantly reversed, cancelling out the electrochemical potential difference, which does not change direction with the magnetic field. This however prevents the use of permanent magnets for magnetic flowmeters.

Specifications

- Size: DN10~DN600 (PTFE) ; DN40~DN1200 (NBR)

- Standard pressure: PN1.0MPa~40MPa;

- Accuracy: ±0.5%~±1.0%;

- Supply power: 85 to 250VAC (45 to 63Hz), 16 to 36VDC;

- Signal output: Current Output: 4~20mA;

- Frequency Output: 0~5000Hz with photoelectric isolation;

- Pulse Output: 0.001~1.000m3/cp, 0.001~1.000 Ltr/cp, 0.001~1.000USG/cp,0.001~1.000 UKG/cp;

- Alarm Output: Upper Alarm-ALMH, Lower Alarm-ALML with photoelectric isolation;

- Communications: RS-232 without galvanic isolation, RS-485 with Galvanic isolation;

- Ambient temperature: -10~60;

- Relative humidity: ≤85%RH;

- Atmospheric pressure: 86KPa~106KPa;

- Applicable Fluid: electrically conducting liquid;

- Fluid temperature:-25~ +65 and -25~ +180;

- Electrical conductivity: 5us/cm.

Company Features
1. Lots of people choose KAIDI for turbine flow meter , which owns to Guangdong Kaidi Energy Technology Co., Ltd.'s leading status in global market.
2. technology helps KAIDI to manufacture air mass flow meter .
3. Guangdong Kaidi Energy Technology Co., Ltd. would like to achieve win-win situation with our customers. Please contact us!
