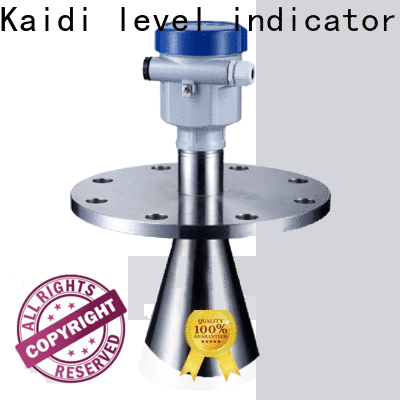

KAIDI top radar level transmitter company for work

sign: 　 Horn antenna with small beam angle.

Should be used: 　 liquid measurement or short-range solid measurement. Can adapt to the environment with complex process conditions.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　 flange 316L

Antenna material: 　 stainless steel 316L/PTFE

Process temperature: 　-40…200°C

Process pressure: 　-1.0…40bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART

Detailed introduction:

GDRD53

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6) (only aluminum housing is available)

C Intrinsically safe type + marine license (Exia IIC T6) (only stainless steel shell is available)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6) (see "Note" below for optional housing)

Antenna type/material

C Horn antenna 50/stainless steel 316L (only for waveguide installation)*

D Horn antenna 80/stainless steel 316L (only for waveguide installation)*

E Horn antenna 100/Stainless steel 316L

F Horn antenna 150/Stainless steel 316L

G Horn antenna 200/Stainless steel 316L

Antenna extension tube

A None

B 200mm

C 500mm

D 1000mm

E 2000mm

X Special customization

Process connection

FA flange DN50 PN1.6 stainless steel 316L (GB/T9119-2000)

FB flange DN80 PN1.6 stainless steel 316L (GB/T9119-2000)

FC flange DN100 PN1.6 stainless steel 316L (GB/T9119-2000)

FD flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

FE flange DN200 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Sealing/process temperature

2 Viton/-40～+130℃

3 Kalrez/-20～+130℃

4 Viton/-40～+200℃with heat sink (selected when the process temperature is greater than 100℃)

5 Kalrez/-20～+200℃with heat sink (selected when the process temperature is greater than 100℃)

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Purge

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.
