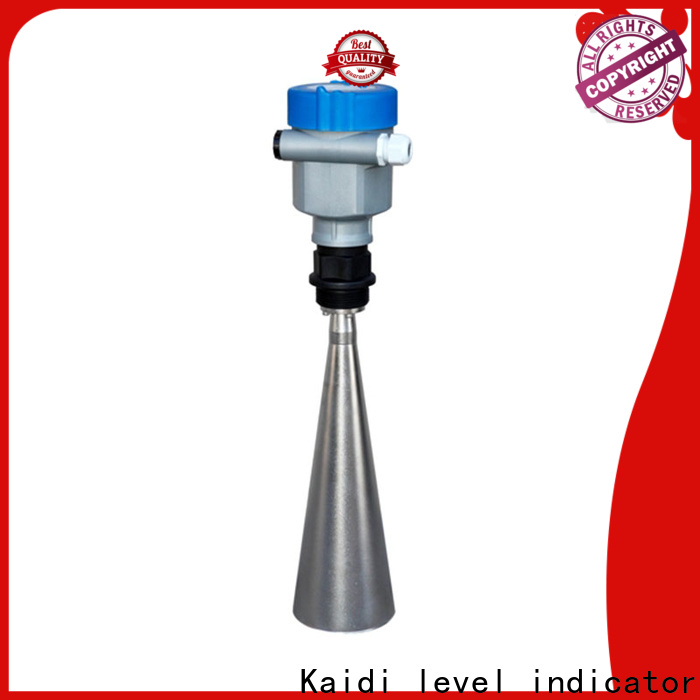

latest radar transmitter for business for detecting

Features: high accuracy; strong anti-interference ability, not subject to temperature
　　　　　 Influence of degree, humidity and wind; installation, adjustment
　　　　　 Trial and easy to use; low power consumption.
Should be used: applicable to lakes, rivers, reservoirs, open channels,
　　　　　Tide water level and other water level monitoring.

Maximum range: 　70m
Measurement accuracy: 　±3mm
Antenna material: 　 stainless steel 316L horn/PTFE vibrator
Antenna structure: 　 pointed cone vibrator
Frequency range: 　26GHz
Signal output: 　RS485/MODBUS protocol
Power source: 　 (6~26) V DC
Detailed introduction:
GDRD56
Permit
P Standard type (range 30m)
L Intrinsically safe type (range 70m)
Antenna type/material
B (T type) horn antenna Φ48mm/stainless steel 316L
C (T type) horn antenna Φ78mm/stainless steel 316L
H (T type) horn antenna Φ98mm/stainless steel 316L
X Special customization
Process connection/material
GB thread G1½A/PP
GX special customization
Flange matching/material
F0 not selected
FA DN50/PP
GA DN80/PP
HA DN100/PP
FX special customization
Sealing/process temperature
2 Viton(-60～150)℃
Electronic components
R RS485/MODBUS protocol
X Special customization
Enclosure rating
A Aluminum/IP67
B Plastic/IP66
D Aluminum two-chamber/IP67
Cable entry
M M20x1.5
N ½NPT
On-site display/programming
A belt
X without
Note: RS485 interface: baud rate 9.6KBPS, data format 8N1
Related MODBUS protocol

p******z

Kaidi Sensors radar transmitter is developed by the experienced in-house R&D team. Various parameters relating to the performance of battery have been taken into consideration by our technicians, including discharge, open-circuit voltage, capacity, and internal resistance.

g******d

The individual production steps of Kaidi Sensors radar transmitter are performed in cleanroom classes 100,000 to 100. This prevents unwanted particles from entering the air and allows us to ensure consistent conditions at all times.

e******i

The quality tests for Kaidi Sensors radar transmitter mainly include seven aspects: its allowable deviation, finish appearance, seam limit, paint quality, water content, formaldehyde emission, and harmful substance content.

a******h

Kaidi Sensors radar transmitter has passed the required tests. These tests cover materials insulation testing, vibration testing, flame retardant testing, water ingress (IP) testing, etc.

v******r

The quality of Kaidi Sensors radar transmitter is guaranteed through a series of performance tests. Chemical tests, colorfastness, tensile strength, etc. are some of the common tests that are done on this product and materials used in it.

o******j

The product is impervious to the ultra harmonics in the power grid. It is built with a resistor for suppression surge which lowers the harmonics to the minimum limit.
