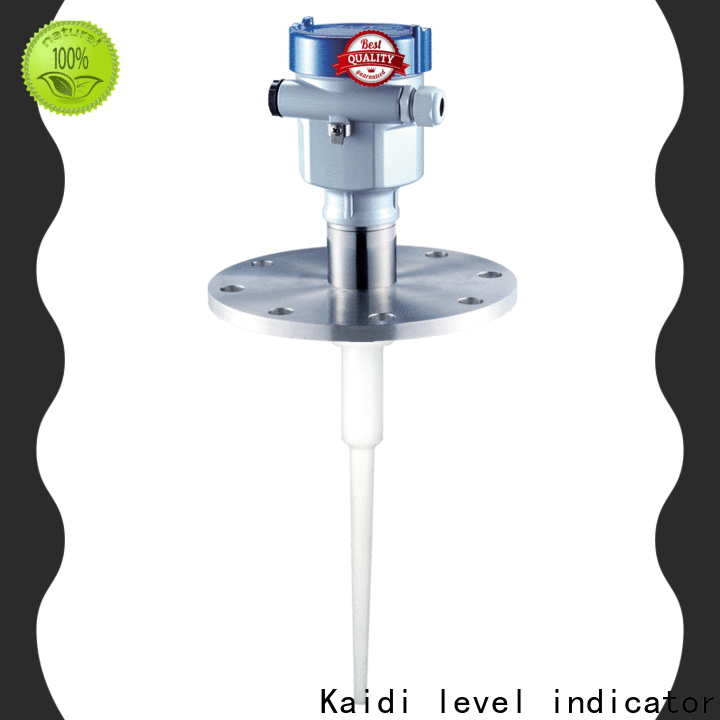

KAIDI new liquid level meter supply for transportation

Company Advantages
1. KAIDI liquid level transmitter goes through rigorous inspections. These checks include the overall shape and balance check, fabrics used in construction test, and colorfastness check. It is able to quickly and effectively detect and respond to some types of input
2. A professional service during the purchase is guaranteed in Guangdong Kaidi Energy Technology Co., Ltd.. Since it is maintenance-free, this product significantly helps save operation costs
3. The product features stable mechanical properties. The properties of the materials have been changed by heat treating and cooling treating. This product has the advantage of high accuracy

Special 　　 sign: 　All PTFE antenna, strong corrosion resistance, no sanitary corners.

Should be used: 　 Suitable for highly corrosive environment and sanitary environment, simple process liquid measurement.

Maximum range: 　30m

Measurement accuracy: 　±10mm

Process connection: 　PTFE flange flange

Antenna material: 　PTFE

Process temperature: 　-40…150°C

Process pressure: 　-1.0…16bar

Frequency range: 　6GHz

Signal output: 　Two-wire system/four-wire system 4…20mA/HART



Detailed introduction:

GDRD52

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (Exia IIC T6)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material/process temperature

B Plastic rod/PTFE/-40～+150℃

Container takeover length

A 50mm

B 100mm

C 150mm

D 200mm

E 250mm

F 300mm

X Special customization

Process connection

FC PTFE flange flange DN50 PN1.6 stainless steel 316L (GB/T9119-2000)

FD PTFE flange flange DN80 PN1.6 stainless steel 316L (GB/T9119-2000)

FE PTFE flange flange DN100 PN1.6 stainless steel 316L (GB/T9119-2000)

FK PTFE flange flange DN150 PN1.6 stainless steel 316L (GB/T9119-2000)

YP Special

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC/HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe + marine license (Exia IIC T6) is limited to "A" or "B" electronic components and "G" type enclosure; intrinsically safe + flameproof type (Exd [ia]ia IIC T6) is limited to use "D" shell.
