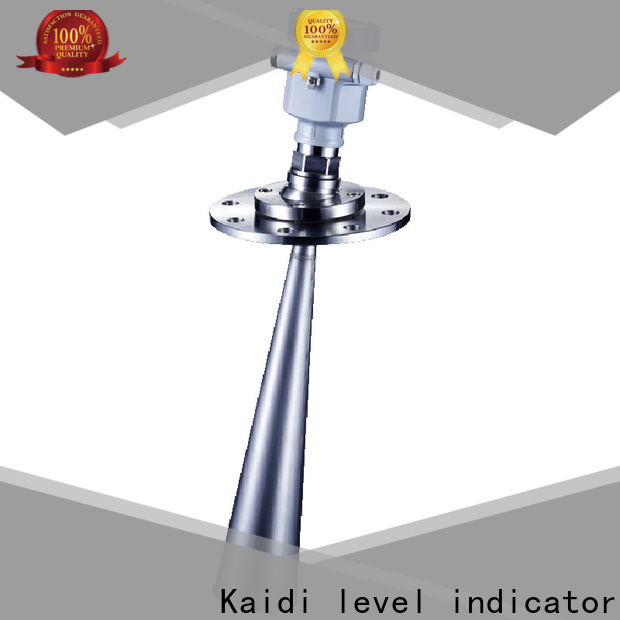

KAIDI level transmitter suppliers for work

Company Advantages
1. The design of KAIDI level transmitter involves several stages. This includes bag trend research, fabrics and fittings research, CAD prototyping, and sample making. This product is notable for its strong overload capacity
2. This product works as a foundation for a good’s night sleep. People can use it to give a bed a fluffy, inviting look and feel. This product features very low no-load losses
3. This product is antimicrobial. The type of materials used and the dense structure of the comfort layer and the support layer discourages dust mites more effectively. Due to its corrosive coatings, this product is highly rust-proof
4. This product yields best-in-class thermal performance. The fiber-reinforced materials used with innovative designs carry improved thermal performance of this product. This product has a high level of insulation

Features: 　Various patented antennas, anti-condensation, crystallization, hanging material, dust, beam concentration. Overcome 6G radar antenna, easy to block,

　　　　　　 has the disadvantages of large size, large emission angle, inaccurate measurement and short measurement distance.

Should be used: 　 the best choice for bulk level measurement, suitable for large range, high dust, high

　　　　　　Measurement of temperature and low dielectric constant medium.

Maximum range: 　70m

Measurement accuracy: 　±15mm

Antenna material: 　(T type) stainless steel 316L horn/PTFE vibrator

　　　　　　(V type) stainless steel 316L/PTFE vibrator

　　　　　　(W type) stainless steel 316L/PTFE vibrator

Antenna structure: 　 (T type) pointed cone vibrator, poor anti-condensation

　　　　　　(V type) cone vibrator, anti-condensation

　　　　　　 (W type) parabolic antenna, 4 degree opening angle

Process temperature: 　(T type)(-40～200)°C

　　　　　　(V type)(-40～200)°C

　　　　　　(W type)(-40～200)°C　

Process pressure: 　(T type)(-0.1～4)MPa

　　　　　　(V type)(-0.1～0.3)MPa

　　　　　　(W type)(-0.1～4)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　Two-wire system/four-wire system



Detailed introduction:

GDRD58

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Exia IIC T6)

C Intrinsically safe type + marine license (in preparation)

G Intrinsically safe type + flameproof type (Exd [ia]ia IIC T6)

Antenna type/material

B (T type) horn antenna Φ48mm/stainless steel 316L

C (T type) horn antenna Φ78mm/stainless steel 316L

H (T type) horn antenna Φ98mm/stainless steel 316L

I (T type) horn antenna Φ98mm (extended)/stainless steel 316L

J (T type) Horn antennaΦ123mm/Stainless steel 316L

K (S type) horn antenna Φ98mm/PP/with PTFE cover

L (S type) horn antenna Φ98mm (extended)/PP/PTFE cover

M (V type) horn antenna Φ98mm/stainless steel 316L/PTFE cover

N (V type) horn antenna Φ98mm (extended)/stainless steel 316L/PTFE cover

P (V type) horn antenna Φ123mm/stainless steel 316L/PTFE cover

Q (W type) parabolic antenna Φ195mm/stainless steel 316L

R (W type) parabolic antenna Φ246mm/stainless steel 316L

X Special customization

Process connection/material

GP (H) thread G1½A/Stainless steel 316L

GA (H) thread 1½NPT/stainless steel 316L

GB (G) thread G1½A/PP

GC (J) thread G1½A/stainless steel 316L/temperature (-60～250)℃

GD (K) thread G1½A/stainless steel 316L/temperature (-60～400)℃, pressure 40MPa

GE (I) thread G1½A/stainless steel 316L (with purge)

GX special customization

Sealing/process temperature

2 Viton(-60～150)℃

3 Kalrez(-60～250)℃

4 Graphite (-60～400)℃

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC /HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

Cable entry

M M20x1.5

N ½NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Exia IIC T6) can only use "B" electronic components and "A" type shell; intrinsic safety + marine license (Exia IIC T6)

    Only use "B" electronic components and "G" shell; intrinsically safe + flameproof (Exd [ia]ia IIC T6) only use "C" "D"

    Electronic components and "D" shell; Standard flange size refers to GB/T9119-2000 PN1.6MPa size, thickness is 15.

Company Features
1. After years of development, Guangdong Kaidi Energy Technology Co., Ltd. has become a well-known brand in China's level transmitter industry. Guangdong Kaidi Energy Technology Co., Ltd. is equipped with advanced machines and equipment.
2. rosemount level transmitter has attracted international attention for its high quality magnetrol level transmitter .
3. Guangdong Kaidi Energy Technology Co., Ltd. has strong technical force, modern production equipment and scientific manufacturing process. We have made a feasible goal: to increase the profit margin through product innovation. Except for the development of new products, we will improve the performance of the existing products based on customers' needs.
