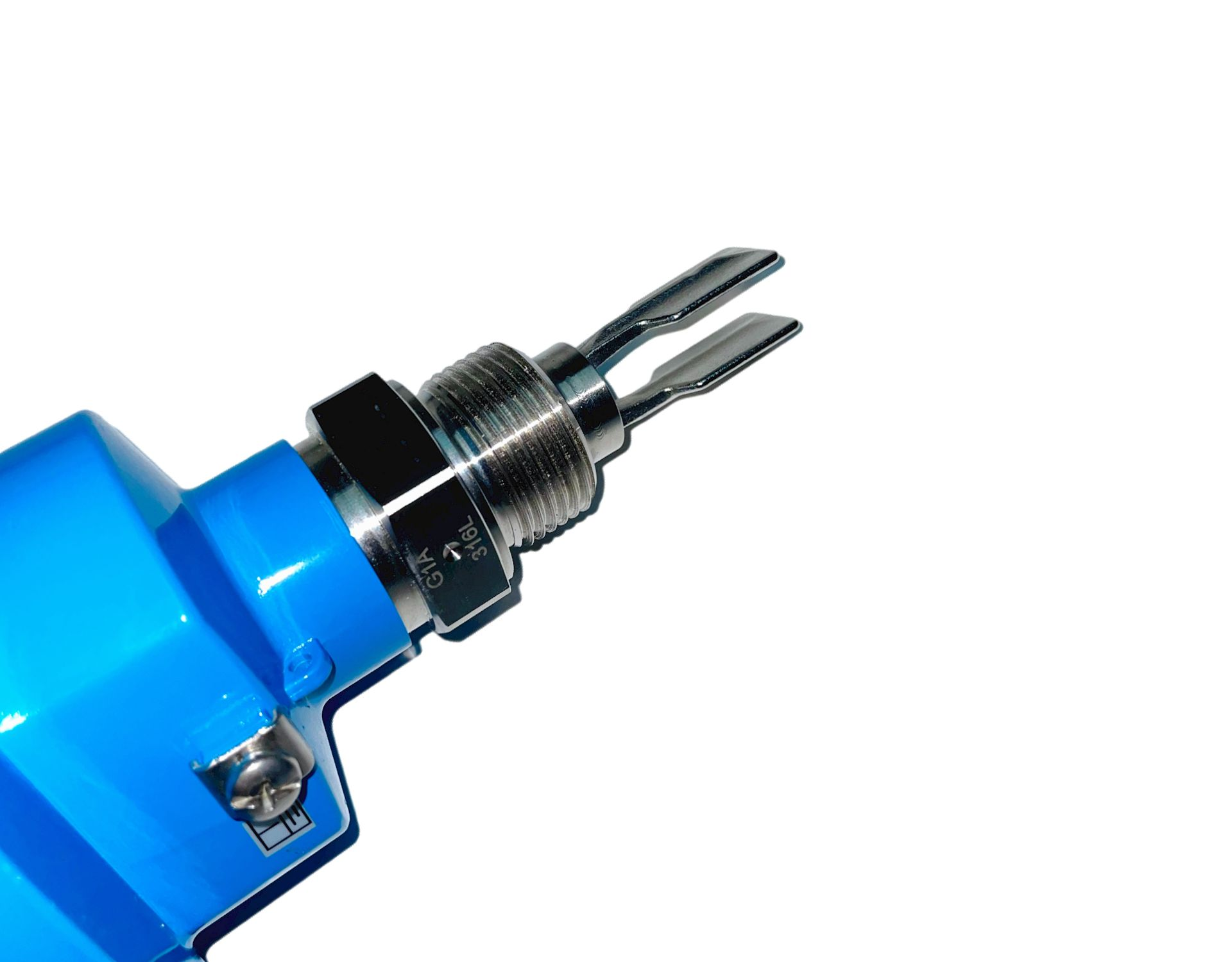

Kaidi KD YH300B Vibrating Fork Level Switch for Chemical Plastics

这里可以自定义设置
Kaidi KD YH300B Vibrating Fork Level Switch for Chemical Plastics

Kaidi KD YH300B Vibrating Fork Level Switch for Chemical Plastics
  • Kaidi KD YH300B Vibrating Fork Level Switch for Chemical Plastics
  • Customized-Length-24VDC-220VAC-SPDT-Relay-Tuning-Fork-Level-Switch.webp (1).jpg
  • Customized-Length-24VDC-220VAC-SPDT-Relay-Tuning-Fork-Level-Switch.webp.jpg
  • Customized-Length-24VDC-220VAC-SPDT-Relay-Tuning-Fork-Level-Switch.webp (3).jpg
  • 44124·4235.jpg
Kaidi KD YH300B Vibrating Fork Level Switch for Chemical Plastics
B站不支持收货地址
B站不支持库存规格
Application:
chemical plastics, pharmaceuticals, feed, environmental protection, water treatment, cement and chemical fertilizers, food powder
Process Pressure:
-1~40bar
Process Temperature:
-40~70℃
Process Connection:
G1-1/2〃, insert, flange
Outer Covering:
aluminum alloy
MOQ
1 SET
Payments:
TT, Paypal, Credit card, Western union
Shipping ways:
Express(DHL,Fedex,TNT,EMS,UPS)/Air/Sea
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
PRODUCT ONTRODUCTION


The vibrating fork level switch is designed using the principle of the damping effect of the medium on the vibrating fork vibration and the piezoelectric effect. The sensing part for detecting the material (liquid) level is composed of the vibrating fork, which has a fixed vibration frequency and amplitude vibration. When the tuning fork is subjected to medium damping, the vibrating fork stops vibrating, and the control circuit drives the relay to send out a switch signal.


The product can adapt to the harsh working conditions and work reliably. It is the most widely used product in the material (liquid) level switch instrument.


THE CHARACTERISTICS OF THE TUNING FORK


With automatic learning function, through the button, without calibration, you can learn different medium densities;


All metal structure, sturdy and durable;


The fork body has a large vibration amplitude, which can reach more than 10mm, which can shake off the low-viscosity local hanging material on the induction rod to prevent misoperation;


The super bright red LED light provides a more convenient and instant warning function for the material level monitoring of the on-site personnel;


Wide AC and DC power input can not only effectively reduce inventory, but also have a wider range of applications;


It is suitable for level monitoring of liquid, granular and thick substances.


PRODUCT USAGE


Vibrating fork level switch is suitable for chemical plastics, pharmaceuticals, feed, environmental protection, water treatment, cement and chemical fertilizers, food powder and other manufacturing and processing industries.


PRINCIPLE


The piezoelectric crystal element is used to generate vibration waves. When the measured medium contacts the fork body, the amplitude and amplitude of the vibrating fork are changed. The intelligent control circuit detects this change and converts it into the corresponding output switch signal, such as: Relay, NPN , PNP.


TECHNICAL PARAMETER


Connection port specification: G1-1/2


Wire inlet specification: M20×P1.5


 Measuring medium: liquid/powder/solid


Application scope: through the learning function, any powder, granule and liquid can be used


 Power supply voltage: 2060VDC 20250VAC 50/60Hz


 Switching time: 3s


 Ambient temperature: -4070℃


 Storage temperature: -4085℃


 Medium temperature: -40150℃


Operating pressure: -140bar


Connection method: G1-1/2, insert, flange


Shell material: aluminum alloy


Fork body material: stainless steel 304/stainless steel 316 relay output, load AC250V/4A, DC60V/4A


Output mode: open collector (NPN) output, load 400mA open collector (PNP) output,Load 400mA


Power consumption: 3W Max when DC power supply. 5W Max when AC power supply.


Standard shaft specification length: 240 300MAX, 400V 700MAX, 2000V 125.5


INSTALLATION



YH300B WIRING DIAGRAM




Relay Output
NPN/PNP Output
power supply

20250VAC 50-60Hz

1960VDC

power supply2060VDC
Signal output

4A/250VAC Max

4A/60VDC Max

Signal output400mA Max


该产品后台详情无内容

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.

社媒暂无评论

More  Model available for all appication, different termperture and pressure!
