kaidi KD Rotary resistance level switch

这里可以自定义设置
kaidi KD Rotary resistance level switch

kaidi KD Rotary resistance level switch
  • kaidi KD Rotary resistance level switch
kaidi KD Rotary resistance level switch
NL series
Application:
powder, block, granular, gel
Protection Grade:
IP65
Process Temperature:
-10℃-80℃ (up to 400℃)
MOQ
1 SET
Payments:
TT, Paypal, Credit card, Western union
Shipping ways:
Express(DHL,Fedex,TNT,EMS,UPS)/Air/Sea
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享
PRODUCT INTRODUCTION

Rotary resistance switch is a level controller for solid materials (including powder, block, granular, gel, etc.). It has the characteristics of good sealing, strong overload capacity, light weight and easy installation, and large output contact capacity. For materials with different specific gravities, it can be realized by adjusting the tension of the spring, and the parts in contact with the materials are all stainless steel materials. Rotary resistance switches have been widely used in the chemical, plastic, cement, pharmaceutical, feed, and food industries.


WORKING PRINCIPLE

The motor drives the blade to rotate. When the measured medium reaches the position of the blade, the blade is blocked and stops rotating, thereby triggering the micro switch behind to output a switch signal. When the measured medium drops away from the blade, the blade returns to its original position and continues to rotate under the action of the spring. . The tension of the spring can be adjusted according to the specific gravity of the measured medium. The spring is adjusted to the strongest when the material has a high specific gravity, and vice versa.


PRODUCT FEATURES

(1) American small hopper professional technology, supported by three bearings, more reliable operation;

(2)The original sealing design can prevent the infiltration of dust (patent actual);

(3)The torque is stable and reliable and the torque can be adjusted;

(4)The blade is under heavy load, and the clutch automatically slips to protect the motor from damage;

(5)Electromechanical separation structure, the whole is free of disassembly and easy maintenance;

(6)The junction box has an IP65 protection level, good airtightness, and can be used outdoors;

(7) Special blades can be used for low-density materials;

(8)It can be used in a wide range of applications such as steel, cement, electricity, feed, chemical plastics, chemical fertilizers, etc.;


TECHNICAL PARAMETER

(1)Power supply: 220VAC /110VAC/24VAC/24VDC

(2)Contact capacity: 250VAC/10A SPDT (single pole double throw)

(3)Power: 4W

(4)Blade speed: 1RPM (revolutions per minute)

(5) Torque: 1.0kg×cm

(6)The proportion of materials: ≥0.5g/cm3

(7) Working temperature: -10℃-80℃ (up to 400℃)

(8) Insulation resistance: ≥100MΩ

(9)Dielectric strength: 1500V*1min

(10) Protection level: IP65

(11)Blade material: SUS304




SELECTION STANDARD PRODUCT

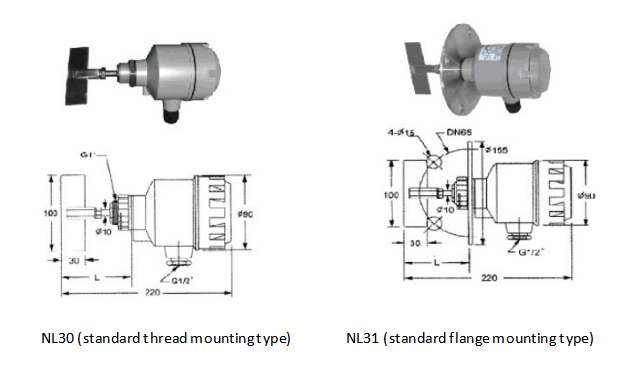

L=90mm (NL30, NL31, NL33, NL34); L=240mm (NL32, NL35); L=650mm (NL36, NL38) Length L can be customized according to customer requirements






SELECTION GUIDE

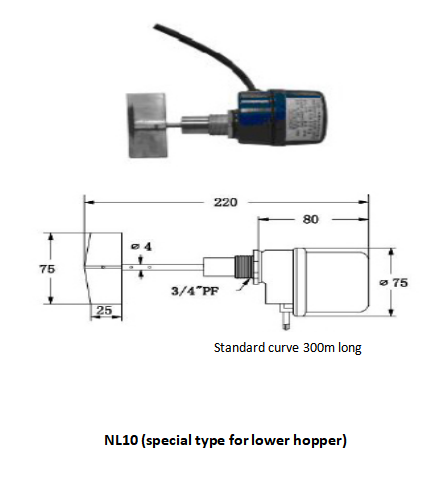

ModeNL10 (Special for small hopper)
Coupling method
0Standard thread mounting type
1Standard flange mounting type
2Shaft protection tube type
3High temperature thread type
4High temperature flange type
5High temperature protection tube type
Leaf form
A85*35
DSickle type
power supply
1220VAC
224VDC


ModelNL-3
Coupling method
0Standard thread mounting type
1Standard flange mounting type
2Shaft protection tube type
3High temperature thread type
4High temperature flange type
5High temperature protection tube type
6Adjustable shaft length

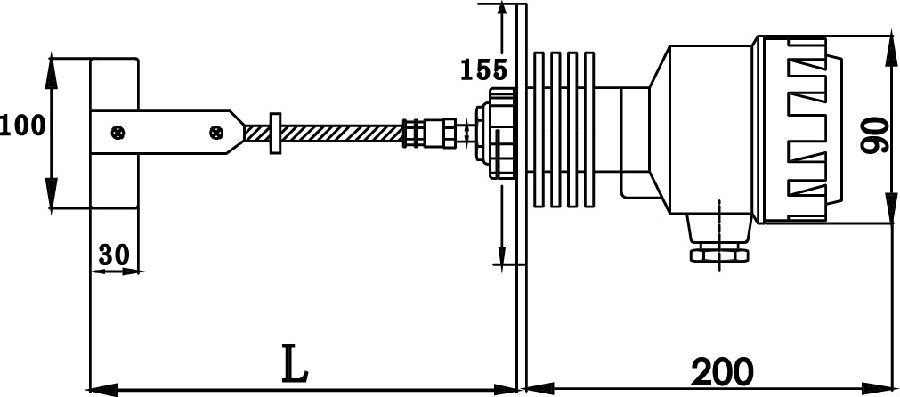

7Steel cable type
Leaf form
A100*30(WXH)
B65*80(WXH)
C50*30(WXH)
DSickle type
power supply
1220VAC
2110VAC
324VAC
424VDC

Remarks: blade form



该产品后台详情无内容

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.

社媒暂无评论

More  Model available for all appication, different termperture and pressure!
