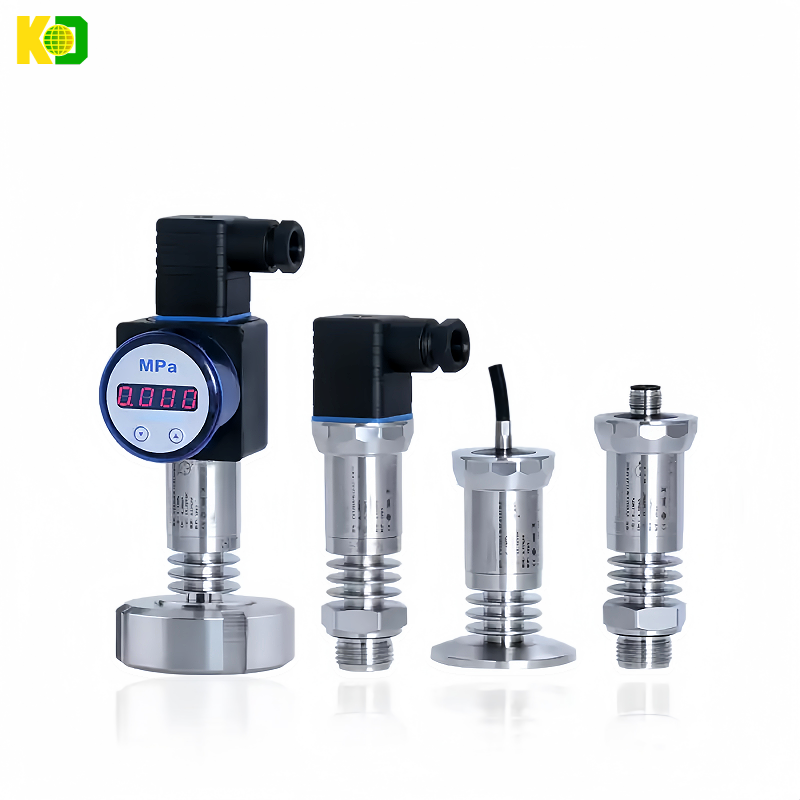

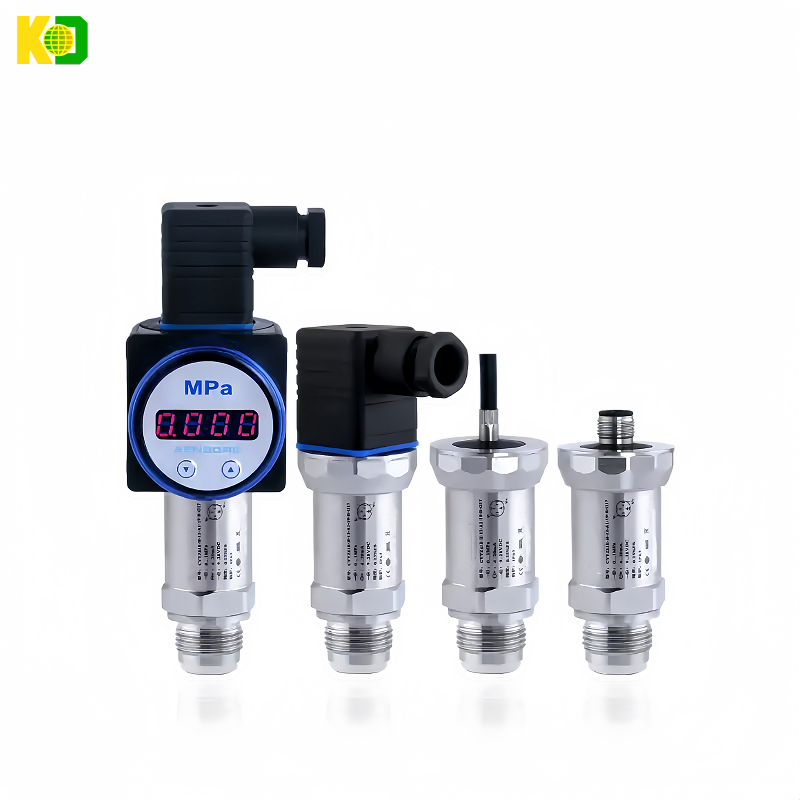

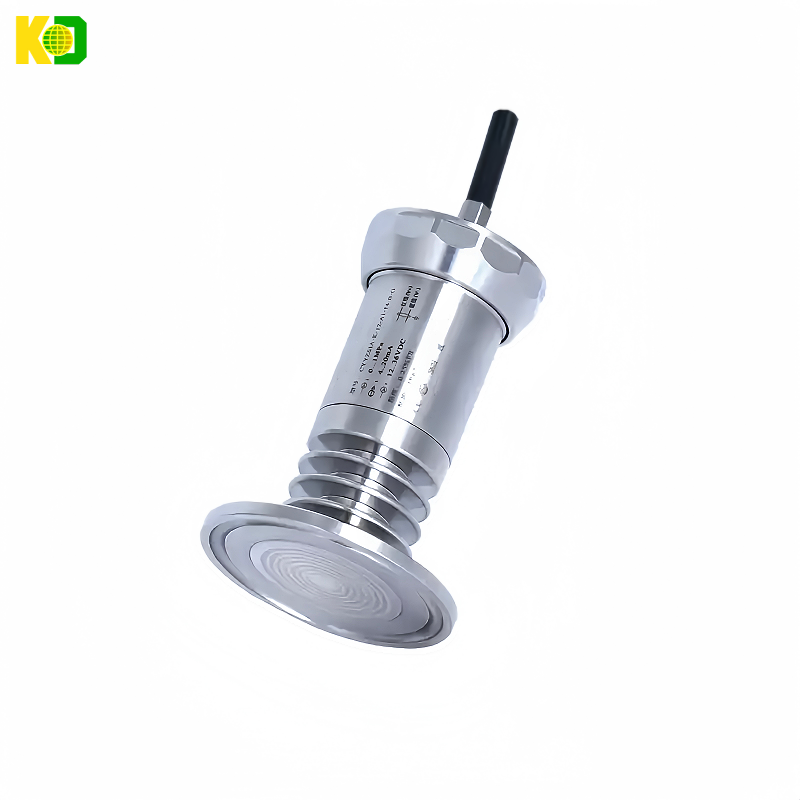

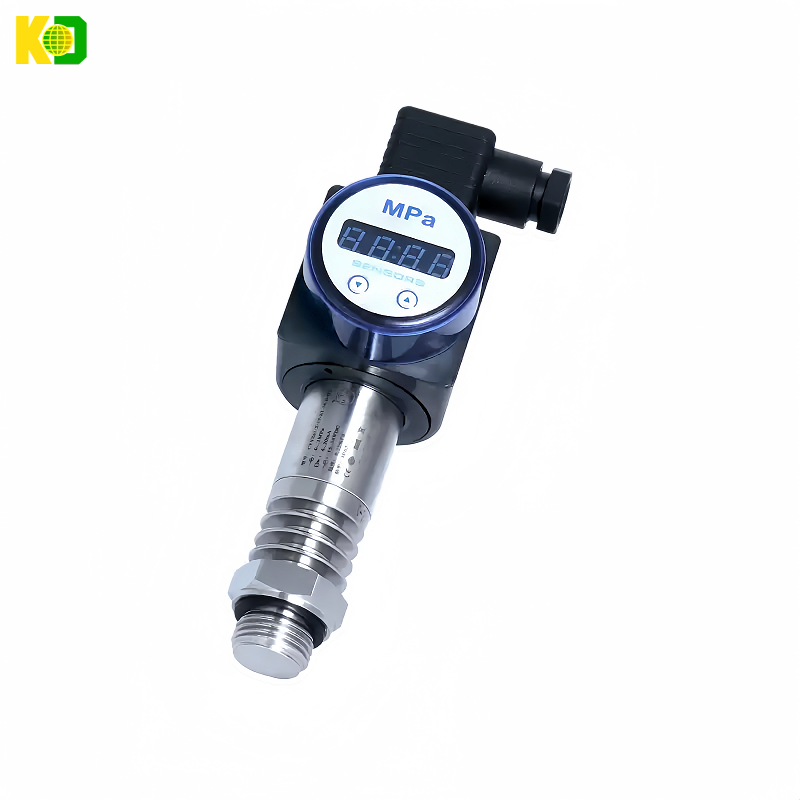

Kaidi KD-CYYZ61 Hygienic Pressure Transmitter For Medical Technology IP65 Without Displat IP54 With Display

这里可以自定义设置
Kaidi KD-CYYZ61 Hygienic Pressure Transmitter For Medical Technology IP65 Without Displat IP54 With Display

Kaidi KD-CYYZ61 Hygienic Pressure Transmitter For Medical Technology IP65 Without Displat IP54 With Display
  • Kaidi KD-CYYZ61 Hygienic Pressure Transmitter For Medical Technology IP65 Without Displat IP54 With Display
  • D1.png
  • 0abd39c24632a780558f2cbd7b6652b.jpg
  • 90a3dea00028d17750e4d31e395b76a.jpg
Kaidi KD-CYYZ61 Hygienic Pressure Transmitter For Medical Technology IP65 Without Displat IP54 With Display
B站不支持收货地址
B站不支持库存规格
Application:
Medical technology;Pharmaceutical Industry;Food and beverage industry
Protection Grade:
IP65(without display) IP54(with display)
Accuracy:
0.1%FS;0.25%FS;0.5%FS
Process Pressure:
0~10KPa~4MPa
Process Temperature:
-40 〜85°C
Outer Covering:
316L stainless steel
Signal output
4~20mA RS485(Standard Modbus-RTU protocol) 0~10VDC/0~5VDC/1~5VDC/0.5~2.5VDC customize
MOQ
1 SET
Payments:
TT, Paypal, Credit card, Western union
Shipping ways:
Express(DHL,Fedex,TNT,EMS,UPS)/Air/Sea
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
PRODUCT INTRODUCTION


CYYZ61 series pressure transmitter products use OEM pressure sensor with stainless steel isolation diaphragm as signal measuring element, and after automatic computer testing, the zero point and sensitivity temperature compensation in a wide temperature range is carried out by laser resistance trimming process. The amplifying circuit is located in the stainless steel shell, which converts the sensor signal into a standard output signal, which gives full play to the technical advantages of the sensor and makes the CYYZ61 series pressure transmitter have excellent performance. It is easy to clean, anti-interference, small temperature drift and high stability. With high measurement accuracy, it is an ideal pressure measuring instrument in pharmaceutical, food and other industries.

TYPICAL APPLICATION


▲Medical technology


▲Pharmaceutical Industry


▲Food and beverage industry


PRODUCT FEATURE


a) Using diaphragm isolation technology


b) Integrated chip, wide voltage power supply


c) Overall waterproof, easy installation


d) Cut-off frequency design, strong anti-interference ability, lightning protection


e) Current limiting, voltage limiting, reverse polarity protection (current limiting output)


f) High precision, good stability, fast response


TECHNICAL PARAMETER


DIMENSION

Please Send Us your Application details

Measuring range , medium, Installation method (flange, thread), Pressure range, Remote transmitter, Level alarm switch

Our technical team will check your specifications and make a best solution for you.
