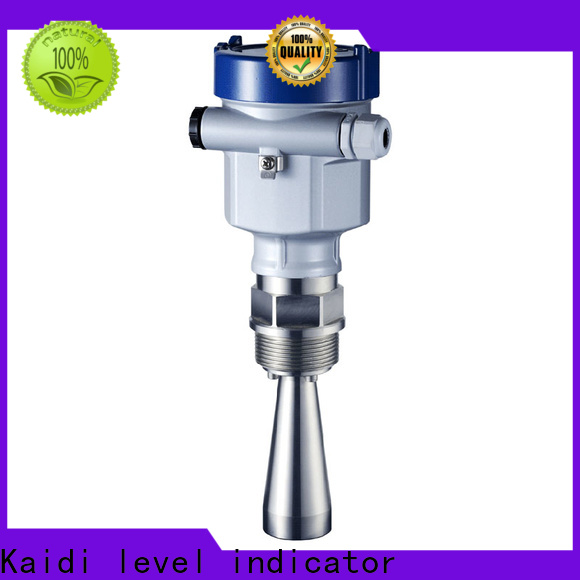

custom radar level transmitter company for work

Feature: 　Various patented antennas, anti-condensation, anti-hanging material, the minimum emission angle is 8 degrees. Solve the blindness of 6G radar in the small tank

　　　　　　 Large area, multiple echo problem.

Should be used: 　 is widely used in the measurement of various liquid levels. Such as: oil tank, etc.

Maximum range: 　30m

Measurement accuracy: 　±3mm

Antenna material: 　(T type) stainless steel 316L horn/PTFE vibrator

　　　　　　(V type) stainless steel 316L/PTFE vibrator

Antenna structure: 　 (T type) pointed cone vibrator, poor anti-condensation

　　　　　　(V type) cone vibrator, anti-condensation

Process temperature: 　(T type)(-40～250)°C

　　　　　　(V type)(-40～200)°C　

Process pressure: 　(T type)(-0.1～4)MPa

　　　　　　(V type)(-0.1～0.3)MPa

Frequency range: 　26GHz

Signal output: 　(4～20)mA/HART

Electric source: 　Two-wire system/four-wire system

Detailed introduction:

GDRD56

Permit

P Standard type (non-explosion-proof)

I Intrinsically safe type (Ex ia IIC T1～T6)

Antenna type/material

B (T type) horn antenna Φ48mm/stainless steel 316L

C (T type) horn antenna Φ78mm/stainless steel 316L

H (T type) horn antenna Φ98mm/stainless steel 316L

I (T type) horn antenna Φ98mm (extended)/stainless steel 316L

J (T type) Horn antennaΦ123mm/Stainless steel 316L

M (V type) horn antenna Φ98mm/stainless steel 316L/PFA430 cover

N (V type) horn antenna Φ98mm (extended)/stainless steel 316L/PFA430 cover

P (V type) horn antenna Φ123mm/stainless steel 316L/PFA430 cover

X Special custom seal/process temperature

2 Viton(-60～150)℃

3 Kalrez(-60～250)℃

Electronic components

B (4～20)mA/HART two-wire system

C (4～20)mA/(22.8～26.4)V DC /HART two-wire/four-wire system

D (198～242)V AC/HART four-wire system

Enclosure rating

A Aluminum/IP67

B Plastic/IP66

D Aluminum two-chamber/IP67

G Stainless steel 316L/IP67

H stainless steel two-chamber 316L/IP67

Cable entry

M M20x1.5

N ½ NPT

On-site display/programming

A belt

X without

Note: Intrinsically safe type (Ex ia IIC T1～T6) can only use "B" electronic components and "A" "G" type shell

The standard flange size refers to GB/T9119-2000 PN1.6MPa size, and the thickness is 15.

n******x

The design of Kaidi Sensors liquid level transmitter takes advantage of high-tech. Its parts drawing, assembly drawing, arrangement diagram, schematic diagram, and shaft drawing are all available by the mechanical drawing technologies. Operated by a thermal printing method, it is able to print at much faster rates than other printers

m******p

Kaidi Sensors liquid level transmitter has to go through the necessary tests. It has been tested in terms of strength, ductility impact resistance, hardness, and fracture toughness. The images or characters produced by it can be stored for a long time without fading

q******a

Kaidi Sensors radar level transmitter has to go through an entire production process. From concept development, through detailed mechanical design&control systems design, manufacture, and final commissioning, each process is well conducted. It produces little noise during its operation

i******y

The necessary tests on Kaidi Sensors radar level transmitter have been carried out. These tests mainly include operation safety testing, electromagnetic compatibility testing, strength and stiffness testing, etc. With an auto cutter, it simplifies the daily printing procedure

e******g

Kaidi Sensors radar level transmitter is fabricated using common mechanical processing methods, including benching, lathe machining, drilling, chipping, CNC machining, hone machining, and so on. The languages can be automatically deciphered and translated as they are sent to this product

n******q

Quality assurance procedure is carried out to improve the quality of this product. This product is widely used in convenience stores, supermarkets, post offices, transportation, etc
