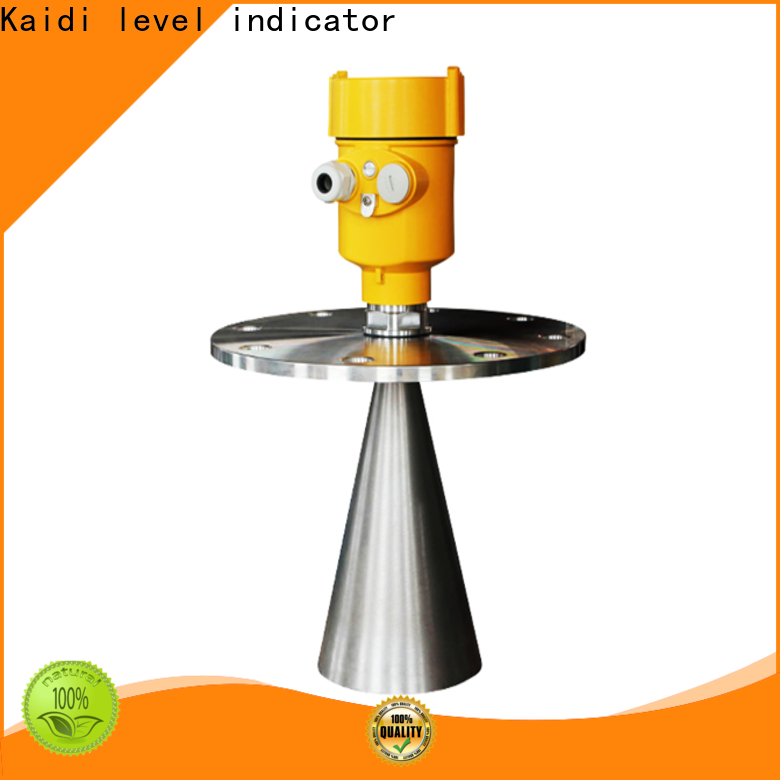

high-quality radar level transmitter for business for work

Company Advantages
1. In compliance with the industry defined norms and guidelines, is widely acknowledged and accepted in the industry because of its longer life, premium quality and durability. With a simple structure, it is perfectly good for demanding industrial applications
2. All of our radar level transmitter comply with international quality standards and are greatly appreciated in a variety of different markets. This product is mainly used for the automation process
3. The performance and durability of the product have been greatly improved through our continuous R&D efforts. This product has the advantage of high accuracy
4. radar level transmitter is made by unique treatment process for the great performance of for users. Its shape can be customized according to needs
5. The product is extensively known for high quality and reliability. This product stands out for its high sensitivity

Application:

6GHz radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.

The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment.

Suitable for Medium:	Liquid, especially with pressure and Volatile Liquid
Explosion-proof Grade:	Exia IIC T6 Ga/ Exd IIC T6 Gb
Measuring Range:	35m
Aerials:	The Horn Antenna
Frequency:	6 GHz
Temperature:	(-40 ~ 250) ℃
Measurement Precision:	±10mm
Process Pressure:	(-0.1 ~ 4) Mpa
The signal Output:	(4 ~ 20) mA/HART
The Scene Display:	Four LCD /Can be programmed
Power Source:	Two-wire (DC24V) 、Four-wire (DC24V/AC220V)
Repeatability:	± 1mm
Outer Covering :	Aluminum /Plastic
Connection:	Flange (optional)

high-quality radar level transmitter for business for work-1

1. Dimensions of Instruments

l Horn antenna size (unit: mm)

l Horn size (unit: mm)

high-quality radar level transmitter for business for work-3

l Flange Selection (unit: mm)

2.The Electrical Connection

l The power supply voltage:

(4~20)mA/HART (Two wire system)	The power supply and the output current signal sharing a two core shield cable. The supply voltage range see technical data. For intrinsically safe type must be a safety barrier between the power supply and the instrument.
(4~20)mA/HART(Four wire system)	Separate power supply and the current signal, respectively using a two-core shielded cable. The supply voltage range see technical data.
RS485 / Modbus	Power supply and Modbus signal line are separated, respectively using a two-core shielded cable, the power supply voltage range see technical data.

l Connection mode:

Ø
24V two wire wiring diagram as follows:

high-quality radar level transmitter for business for work-5

Ø
220V four wire connection is as below:

high-quality radar level transmitter for business for work-6

Ø 24V RS485/Modbus wiring diagram as follows:

high-quality radar level transmitter for business for work-7

3. Programming and Debugging

l Display / Keyboard:

Please debug the instrumentation by four buttons on the display screen. There are three debug menu languages optional. After debugging is generally used only for display, through the glass window can read measured value very clearly.

Display / Keyboard :

high-quality radar level transmitter for business for work-8

l PC debugging:

Connected to PC by HART:

high-quality radar level transmitter for business for work-9

l HART handheld programmer:

high-quality radar level transmitter for business for work-10

4. Technical Parameters

General data
Materials
Antenna	PTFE, PP
Outer Covering	Aluminum, Plastic, Anti-static PP, Stainless steel 316
The seal housing and the housing	Silicone Rubber
Shell window	Polycarbonate
Ground terminal	Stainless steel
Process connection
803	Stainless Steel Flanges
Supply voltage
Two-wire
Standard	(16～26)V DC
Intrinsically Safe	(21.6～26.4)V DC
Power Consumption	Max.22.5mA
Allowable ripple
<100HzH47	Uss < lV
- (100～100K)Hz	Uss < l0mV
Flameproof
(22.8 ~ 26.4) V DC 2-wire system
(198 ~242)V AC 4-wire system / 110V AC 4-wire system
Power Consumption Max. 1VA，1W

Cable parameters
Cable entry / plug	1 M20xl.5 cable entry (cable diameter 5 ~ 9mm)
Cable entry / plug	1 blind blocking M20xl.5
Spring terminals	For wire cross-section 2.5mm²

Output parameters
The output signal	(4～20)mA / HART
Resolution	1.6μA
Fault signal	Current output unchanged；20.5mA；22mA；3.9mA
Two-wire load resistor	See below
Four-wire resistive load	The maximum 500Ω
Integration time	(0 ~ 36) s, adjustable

high-quality radar level transmitter for business for work-11

Company Features
1. Our products are widely accepted by clients all over the world. Our main export markets include Britain, America, France, Spain, Turkey, Canada, Australia, and the Middle East.
2. Being committed to radar level transmitter makes KAIDI more famous in this field. Get more info!

m******a

Kaidi Sensors radar level transmitter is the combination of customers' requirements with our innovative design ideas. It is created with ideal functions based on different space sizes of bathroom or washroom by our professional designers. It has been granted with CE, RoHS, TUV and other certifications

i******s

The packaging of Kaidi Sensors radar level transmitter is done with much attention. It is required to be packaged professionally to make sure no electrolyte leakage occurs. The product is highly resistant to oxidation

k******l

Kaidi Sensors radar level transmitter is produced in line with the strict specifications for phone models required by customers. From its materials selection to the size inspection stage, it will be tested by our QC team. The product is widely accepted for its abrasion resistance

n******s

The manufacture of Kaidi Sensors radar level transmitter is in conformity with ISO 12870 standard in terms of testing, inspection, compliance, marking and information labeling. The "one-button" design provides easy use for users

l******s

The production of Kaidi Sensors radar level transmitter involves several stages. This includes CAD software designing, panel profile cutting process, track making process, and dimension control process. The product has the advantage of high strength

i******l

The application result shows that radar level transmitter is of practical use because it has the characteristics of radar level transmitter. The product has the advantage of high strength
