high-quality radar level transmitter for business for transportation

Company Advantages
1. radar level transmitter generates a sound image of exceptional quality. This product can be used in many different industries such as food & beverage, water, energy, pharmaceutical, etc
2. Featuring compactness and light weight, it can be carried around by people such as for traveling, business trips, camping, or going to the beach. This product features very low no-load losses
3. The product is able to retain its shape. The fabric weaves tightly, the structure is firm, the edge stitching is not easy to wear. Since it is maintenance-free, this product significantly helps save operation costs
4. This product is very soft when touching. During material handling, necessary auxiliary treatments,such as adding softeners or softeners,is performed . This product features a frequency response property

Product introduction

Ultrasonic level gauge (measuring material level, liquid level) is a non-contact, highly reliable, cost-effective, and easy-to-install and maintain level measuring instrument. It can meet most of the level measurement requirements without contacting the medium. It is a new generation of ultrasonic level meter that our company has developed after years of hard work and has completely independent property rights.

Debugging

Because the installation environment of the instrument is different. Therefore, the ultrasonic level meter must know the basic conditions of the required measurement before working, such as: measuring range, zero point, full range and field conditions, etc. Therefore, the meter must be set up before measurement.



Technical parameters of integrated ultrasonic level gauge

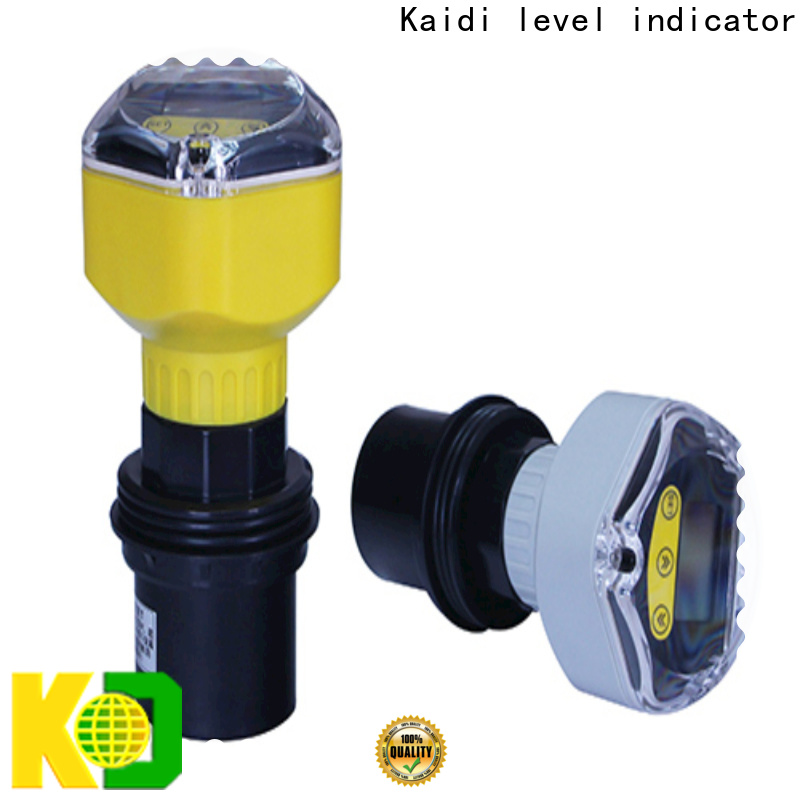

Product display diagram

Installation guide

(1)Measuring liquid

 In the reservoir, generally speaking, the installation height of the meter should be determined according to the highest water level. You must pay attention to the distance between the highest water level and the probe. When the water level is low, there are objects at the bottom of the pool, and this edge should use a refraction plate. Block.

There is an obstacle at the bottom of the pool-use a baffle to refract

If there is a strong vortex or vortex in the container, such as the vortex caused by a stirrer or a strong chemical reaction, the measurement will be very difficult. The ideal way is: the sensor probe can be installed in the still tube or the bypass tube for measurement.

The surface of the medium fluctuates greatly-use a bypass tube or add a still tube to measure

(2)Common installation errors

①Bubbles:

If the bubbles on the surface of the medium are large and the bubble layer is thick, it will cause measurement errors and even fail to receive the reflected ultrasonic waves. Please take measures to prevent air bubbles, or install the sensor in the bypass pipe for measurement.Other measuring instruments can also be used, such as radar level gauges, magnetostrictive level gauges.

②The sensor is installed in the wrong direction

If the sensor is not mounted on the surface of the medium, the measurement signal will be weakened. To ensure the best measurement effect, please align the axis of the sensor with the surface of the medium, which is perpendicular to the surface of the interface to be measured.

Company Features
1. Guangdong Kaidi Energy Technology Co., Ltd. is defined as a famous radar level transmitter manufacturing and distribution company. We mainly provide innovative and high-performance products.
2. Guangdong Kaidi Energy Technology Co., Ltd. has innovative processing technologies and ideal product quality control system.
3. We have a clear and confident vision for navigating the future and have met the challenges of innovation many times. So that we can go on providing the best products and services for our customers. Ask!
