In industrial production and warehouse management, the precise selection of liquid tank level transmitters directly impacts measurement accuracy, system safety, and operational efficiency. Improper selection can lead to measurement errors, instrument damage, or even production accidents. With the advancement of automation technology, radar level transmitters have emerged as the preferred solution for liquid tank level measurement due to their non-contact measurement capabilities and strong environmental adaptability. This article will outline the core logic behind selecting liquid tank level transmitters, with a focus on the key considerations for radar level transmitters, to help enterprises precisely match their operational requirements.

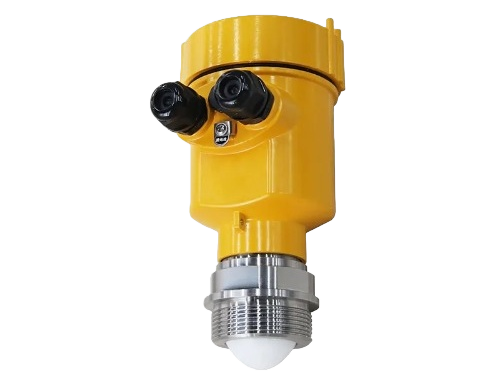

The selection of liquid level transmitters for storage tanks must be based on a comprehensive understanding of the operating conditions, with the core considerations centered on five key dimensions: medium characteristics, measurement range, accuracy requirements, environmental conditions, and industry standards. Among these, medium characteristics are the primary prerequisite for selection, as different media impose distinct requirements on the material and structural design of the level transmitter. For highly corrosive media such as hydrochloric acid and strong alkalis, highly corrosion-resistant materials must be selected. In such cases, radar level transmitters with PTFE-coated or 316L stainless steel antennas can effectively withstand media erosion. The Kaidi KD series of corrosion-resistant radar level transmitters employs this type of corrosion-resistant design, making them suitable for measuring various acid and alkali storage tanks. For viscous media or those containing solid particles, such as syrup or slurry, traditional float-type level transmitters are prone to jamming issues. The non-contact measurement method of radar level transmitters perfectly addresses this challenge. Their high-frequency electromagnetic waves offer strong penetration and are unaffected by medium viscosity or concentration, resulting in superior measurement stability.

The measurement range and accuracy requirements directly determine the selection of a liquid level gauge for a tank. For small measurement ranges (0–1 meter), glass tube level gauges can be selected, while for medium to large ranges (1–10 meters and above), high-precision equipment such as radar level gauges is recommended. The Kaidi KD series radar level gauges utilize 26 GHz/80 GHz high-frequency pulse technology with a beam angle as small as 3°, achieving a measurement accuracy of ±3 mm. They provide precise coverage for both medium and large petrochemical storage tanks as well as small food ingredient tanks. For industries with extremely high accuracy requirements (within ±1%), such as fine chemicals and pharmaceuticals, high-precision radar level transmitters utilize phase measurement technology and intelligent signal processing algorithms to achieve stable, high-precision measurements, meeting the stringent demands of process control.

Environmental conditions and industry standards are key factors in selecting liquid level transmitters for storage tanks. In high-temperature (-40 to 200°C), high-pressure (4 MPa), or highly dusty environments, the advantages of radar level transmitters are particularly evident. Their sealed structure and high-temperature/high-pressure design ensure stable operation. Kaidi’s explosion-proof radar level transmitters (Ex d IIC T6) are also suitable for flammable and explosive conditions and meet SIL 2 safety requirements. From an industry standards perspective, standards such as SH/T 3007-2014 require storage tanks for flammable and explosive media to use level measurement instruments based on two different principles. The combination of radar level transmitters and servo level transmitters has become a common compliance solution. Kaidi can provide standard-compliant redundant measurement solutions to ensure the effective implementation of system safety interlock functions.

When selecting a radar level transmitter, it is also important to consider equipment compatibility and service support. As modern industrial systems place increasing demands on data exchange, radar level transmitters must support mainstream communication protocols such as HART and Modbus to seamlessly integrate with DCS/PLC systems. Kaidi radar level transmitters feature a modular design, with the sensor and transmitter separated to facilitate remote commissioning. They also include cloud-based diagnostic capabilities, enabling remote monitoring of equipment status and early fault warnings. Furthermore, companies should select suppliers capable of providing full-cycle service support. Kaidi’s 24-hour response service system offers end-to-end support—from selection consultation and customized solution design to installation, commissioning, and post-installation maintenance—thereby reducing operational and maintenance costs for enterprises.

In summary, selecting a liquid level transmitter for storage tanks requires a comprehensive evaluation of multiple operational parameters. The advantages of radar level transmitters in terms of adaptability to complex operating conditions, measurement accuracy, and safety compliance make them an ideal choice for liquid level measurement in storage tanks across various industries. When selecting a solution, companies should prioritize compatibility and the supplier’s service capabilities. Leveraging its technological innovation and service strengths, Kaidi can provide tailored radar level transmitter solutions to help companies achieve efficient and safe level management.
