A tuning fork level switch (sometimes referred to as a “tuning fork level sensor”) is a device widely used in industrial liquid level measurement that detects the presence of liquid based on changes in vibration frequency. In contrast, a tuning fork density meter utilizes the principle of vibration to measure the density of liquids or slurries and is typically used for density control in industries such as chemicals and petroleum. Although both employ tuning fork vibration technology, there are significant differences in their functions, applications, and operating principles. This article will explore in detail the key differences between tuning fork level switches and tuning fork density meters.

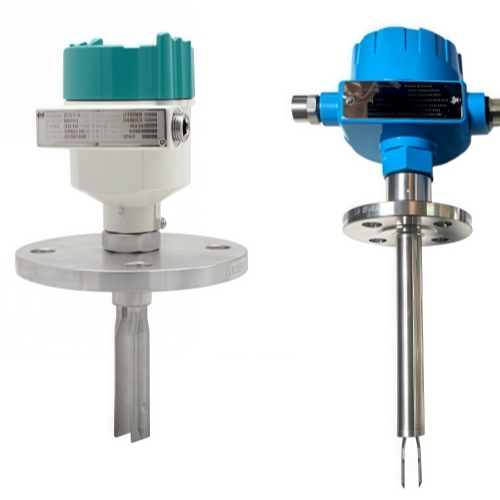

I. Overview of Tuning Fork Level Switches

The primary principle of tuning fork level switches is to detect the presence of a liquid medium by monitoring changes in vibration frequency. When the tuning fork is suspended in air, its vibration frequency is high; when submerged in liquid, the frequency decreases, thereby triggering a liquid level alarm or control system. These switches are widely used to prevent tank overflow, ensure minimum liquid levels in tanks, and for other process control applications.

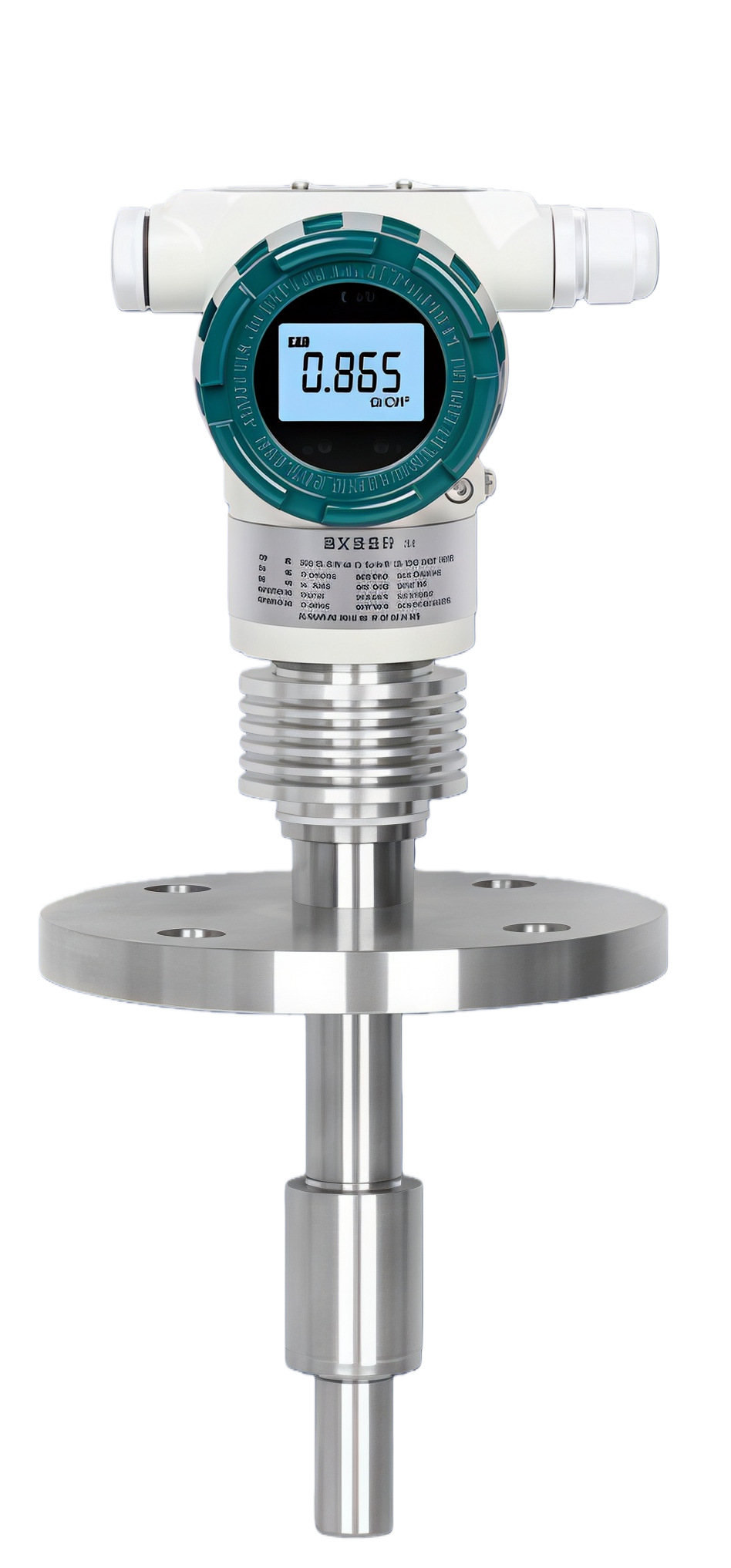

II. Overview of Tuning Fork Density Meters

Tuning fork density meters operate on a similar principle of vibration, but their primary function is to measure the density of a medium. These devices calculate the density of liquids or slurries by detecting the degree of vibration attenuation and changes in vibration frequency as the tuning fork vibrates within the medium. Due to their high measurement accuracy, they are widely used in industrial processes—such as those in the chemical, petroleum, and pharmaceutical industries—where real-time density control is required.

III. Key Differences in Operating Principles

Vibrating Fork Level Switch: The primary function of a vibrating fork level switch is to detect the presence of liquid by monitoring the vibration frequency. When the fork comes into contact with the liquid, the vibration frequency drops significantly, triggering a signal. This device features a simple design and is suitable for high/low level alarms or switch control.

Vibrating Fork Density Meters: In contrast, vibrating fork density meters not only monitor changes in vibration frequency but also track vibration attenuation. This attenuation is directly related to the density of the medium; the electronic system analyzes the vibration signal to calculate an accurate density value. Vibrating fork density meters are suitable for applications requiring precise monitoring of material density, such as the processing of industrial slurries and high-viscosity liquids.

IV. Differences in Application Areas

Tuning-fork level switches: Primarily used for monitoring liquid levels, these switches are suitable for high- and low-level alarms in containers across industries such as petroleum, chemicals, and water treatment. For example, in oil tanks, tuning-fork level switches can be used to monitor oil levels and ensure that the system does not overflow.

Vibrating fork density meters: Widely used in industrial processes requiring precise density control, such as online monitoring of liquid density in chemical plants. They are suitable for handling viscous liquids and slurries; density control can effectively improve production efficiency and quality, particularly in slurry concentration measurement in petroleum refining and mining.

Tuning-fork level switches: Primarily used for monitoring liquid levels, these switches are suitable for high- and low-level alarms in containers across industries such as petroleum, chemicals, and water treatment. For example, in oil tanks, tuning-fork level switches can be used to monitor oil levels and ensure that the system does not overflow.

Vibrating fork density meters: Widely used in industrial processes requiring precise density control, such as online monitoring of liquid density in chemical plants. They are suitable for handling viscous liquids and slurries; density control can effectively improve production efficiency and quality, particularly in slurry concentration measurement in petroleum refining and mining.

V. Comparison of Technical Requirements

1. Accuracy and Sensitivity: Tuning fork density meters have higher accuracy requirements; they must precisely calculate the density of the medium based on changes in vibration amplitude and frequency, making them suitable for fine chemical manufacturing and production quality control. Tuning fork level switches, on the other hand, are primarily used to detect the presence or absence of liquid; they have relatively lower accuracy requirements, and their main purpose is to provide reliable high- and low-level alarm functions.

2. Maintenance and Calibration: Because tuning fork density meters have high accuracy requirements, they must be calibrated regularly to ensure the accuracy of their measurements. In contrast, tuning fork level switches have a relatively simple design and require minimal maintenance, making them suitable for long-term operation in harsh conditions, such as high-temperature, high-pressure, or corrosive environments.

VI. Conclusion

Although fork-type level switches and fork-type density meters are both based on the same vibrational technology, they differ significantly in terms of functionality, application scenarios, and technical complexity. Fork-type level switches are widely used in liquid level control systems due to their reliability and maintenance-free operation, while fork-type density meters are employed in industrial settings that require precise density control. Selecting the appropriate instrument type based on specific application requirements can improve production efficiency and control accuracy.
