Tank level gauges serve as the “eyes” of industrial safety. If their parameters are set incorrectly, these “eyes” may “go blind” or even “lie.” In industries such as petrochemicals, energy storage and transportation, and food and pharmaceuticals, incorrect level gauge settings can result in measurement inaccuracies and reduced production efficiency at best, and trigger catastrophic accidents such as tank overflows, leaks, and explosions at worst. Statistics show that more than 60% of tank level anomalies are not caused by hardware failures but by human error during the parameter configuration process. This article will provide an in-depth analysis of five typical manifestations of incorrect level gauge parameter settings and offer practical solutions.

I. Systematic Measurement Offset: Incorrect Empty Tank Reference Setting

This is the most common and dangerous type of error. When all readings displayed by the level gauge show a consistent deviation from the actual liquid level, the problem usually lies in the “empty tank height” or “zero point” parameter.

Symptoms: When the actual liquid level is 5 meters, the instrument consistently displays 7 meters; or when the actual liquid level drops, the displayed value remains unchanged until the level change exceeds a fixed threshold, at which point the display begins to track the actual level. This error can completely distort inventory management, potentially causing the pump to run dry during discharge and making overflow during filling highly likely.

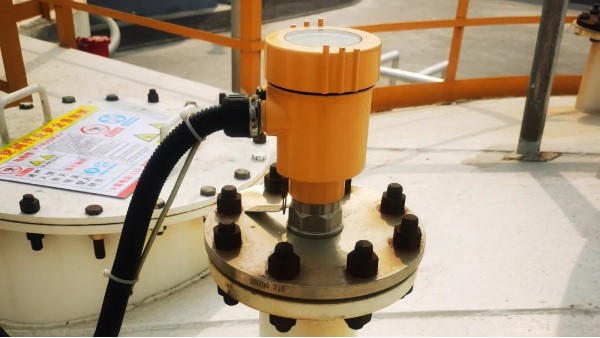

Root Cause Analysis: The empty tank height serves as the reference point for all calculations performed by the level gauge. This parameter refers to the actual physical distance from the flange face where the probe is mounted to the tank bottom. Any measurement or input error will cause a linear shift across the entire measurement range. Many operators rely on drawing data or rough estimates, overlooking the effects of tank settlement, foundation deformation, or installation deviations.

Solution: Only after the tank has been completely emptied and safety has been ensured should the vertical distance from the flange face to the tank bottom be measured using a calibrated steel tape measure and manually entered with precision. Estimation is strictly prohibited for this step, which should be treated as a mandatory verification procedure following equipment commissioning or maintenance.

II. Safety Measures Are Effectively Useless: Incorrect Range and Alarm Value Settings

Incorrect range settings can directly compromise the tank’s safety interlock system, rendering safety features such as high-level and low-level alarms and emergency shut-off valves ineffective.

Specific Manifestations: The actual liquid level in the tank has reached 90% of the safe volume, but the control room display shows only 60%; or the level transmitter’s output current has reached the full-scale value of 20 mA, but the engineering value received by the host computer does not synchronize, resulting in the high-level alarm never being triggered.

Root Cause Analysis: The range defines the physical height range corresponding to the instrument’s 4–20 mA output signal. If the range setting is smaller than the tank’s actual height, the instrument will stop changing once it reaches its preset “full scale,” creating the illusion of “false stability.” Furthermore, even if the level gauge’s range is correct, if the range and alarm setpoints in the DCS or SIS system are not synchronized with it, the entire safety instrumented system will experience misjudgment.

Solution: First, the range setting should be equal to or slightly greater than the tank’s maximum safe filling height. Second, a strict “double-check” mechanism must be established: immediately after configuration on the instrument, verify the range conversion factor in the control system, and use local indication devices such as magnetic flip-flap gauges or manual level checks to cross-verify at multiple liquid level points (especially high and low levels) to ensure consistency throughout the data chain.

III. Sudden Data Fluctuations and False Alarms: Improper Filtering and Response Parameter Settings

When level data fluctuates violently, resembling an “ECG,” the issue is typically not excessive interference, but rather that the instrument’s “stabilizer”—the filtering parameters—is set too weakly.

Specific Symptoms: The displayed value fluctuates rapidly every second, with the amplitude of the fluctuations far exceeding the physical fluctuations of the medium itself. Operators are unable to discern the true trend and may either disable the alarm due to frequent false alarms or mistakenly dismiss a genuine alarm as interference.

Root Cause Analysis: The damping time parameter is the time constant the instrument uses to smooth input signals and suppress random interference. In operating conditions involving agitation, feed shocks, or slight foaming, if the damping time is set too short (e.g., the default 1–2 seconds), the instrument will faithfully reflect every minor disturbance in the liquid surface. Additionally, setting the signal gain too high will amplify electrical noise and faint reflection signals from fixed structures inside the tank.

Solution: For operating conditions with disturbances, the damping time should be appropriately increased. It is recommended to start from the default value and gradually increase it to 5–15 seconds until the display curve becomes stable and accurately reflects the trend of process changes. At the same time, the signal gain threshold should be set reasonably in conjunction with the echo curve diagram to ensure that only valid echoes representing the true liquid level are captured, while noise is filtered out.

IV. “Ghost” Signals Causing False Liquid Levels: Incorrect Training and Failure to Suppress Interference Echoes

Fixed structures inside the tank, such as ladders, heating coils, and agitator supports, reflect the measurement wave, creating fixed “ghost” echoes. If these are not identified and suppressed, they will be interpreted as liquid level signals.

Specific Manifestations: The liquid level display may repeatedly fluctuate at one or several fixed height values. This is particularly evident when the tank is empty or at low liquid levels, where the instrument may display a “liquid level” that does not actually exist. Alternatively, when the true liquid level rises and passes a specific interference source, the displayed value may undergo an abrupt step change.

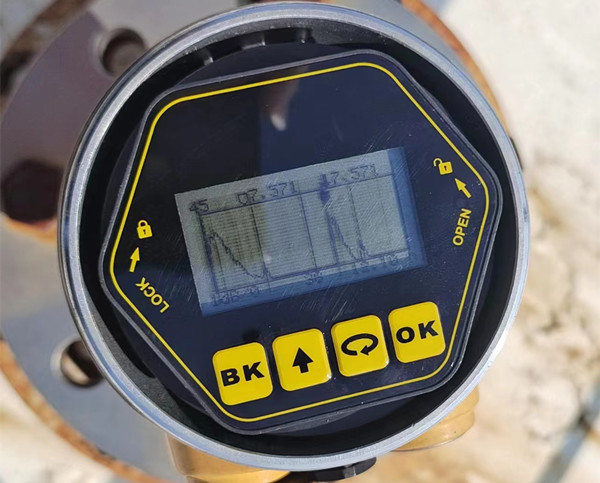

Root Cause Analysis: Waveguide-type level transmitters, such as radar and ultrasonic devices, cannot automatically distinguish between true echoes from the liquid surface and false echoes from fixed structures when transmitting signals. Although modern smart level transmitters feature a “false echo learning” function, this must be performed with the tank completely empty to accurately record the positions and intensities of all fixed interference sources. Many maintenance personnel overlook this critical step or attempt the learning process while residual media remains in the tank, resulting in learning failure.

Solution: Establish strict commissioning procedures to ensure that the instrument’s “false echo suppression learning” function is performed only when the tank is completely empty and its internal structure is clearly visible. Subsequently, this learning process must be repeated whenever any modifications or repairs are made to the tank’s internal structure, or whenever the instrument is reinstalled.

V. The “Blind Spot Under the Lamp”: Excessively Large or Improperly Installed Blind Zones

The blind zone refers to the shortest distance below the probe where effective measurement is not possible. Improper configuration can cause the liquid level at the near end to “disappear.”

Specific Symptoms: When the liquid level falls below a certain height (e.g., 1 meter), the instrument displays zero or “No Signal”; when the liquid level rises above that height, the display suddenly jumps to a value. This results in a monitoring blind spot in the low-level range, preventing the provision of continuous level data.

Root Cause Analysis: The blind zone is determined by the antenna’s transmission characteristics and signal processing time. A common mistake is setting the dead zone value too large to “save trouble” or avoid near-end interference. Another scenario involves improper installation; for example, on a dome-top tank, if the probe is mounted too high above the tank bottom, its inherent physical dead zone may already cover the critical low-level monitoring area.

Solution: The dead zone setting should follow the minimum recommended value in the equipment manual, typically 0.1–0.3 meters, and must never be arbitrarily increased. During the installation design phase, the maximum allowable installation height of the probe must be calculated based on the minimum required measurement level, ensuring that the entire process measurement range falls within the instrument’s valid range.

In summary, the parameter configuration of a level gauge is by no means a simple, one-time task, but rather a systematic engineering process deeply tied to specific operating conditions, tank structure, and safety requirements. Establishing standardized procedures covering installation, commissioning, and periodic calibration, while documenting and double-checking every parameter modification, is the cornerstone for preventing such errors and ensuring the safe and stable operation of storage tanks. The accuracy of parameter settings directly determines the reliability of the measurement system, which is often the first and most critical line of defense in safeguarding safe production.
