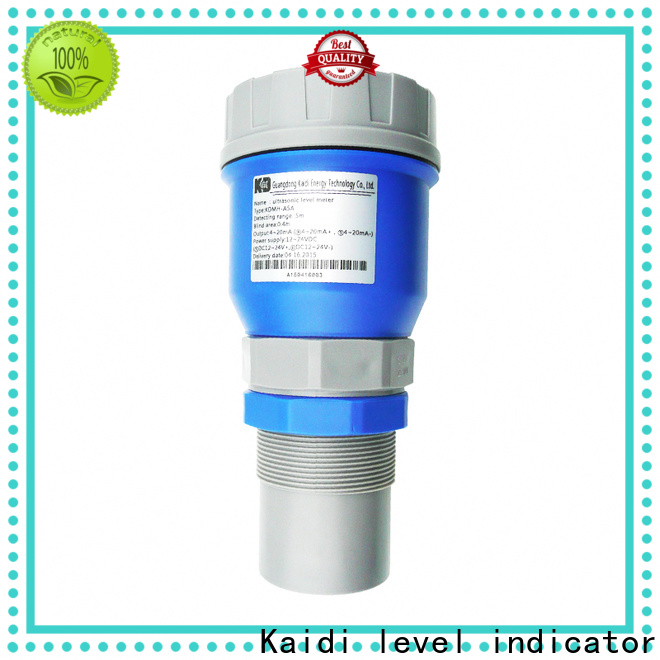

Introduction

It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

Characteristics

DC12-24V wide work voltage
Backup and recovery parameter set
Free adjustment of the range of analog output
Set a filter value to remove
Custom serial port data format
Optional increment/difference distance measurement to measure air space or liquid level
1-15 transmitted pulse intensity depending on working conditions
More choices depend on your requirement, as bellowing:

1. 3 NPN output

2. 2 relay output

3. Voltage output

4. RS485output connect with PC

5. Explosion-proof

III. Specifications

Range: 5. 8. 10. 12. 15m

Blind zone: ＜0.4-0.5m（different for range）

Measure error: 0.3%F.S

Display: OLED

Display resolution: 1mm

Frequency:: 20～350KHz

Power: 12-24VDC

Power consumption: <1.5W

Output (optional):

4～20mA RL>600Ω（standard）

1～5V\1～10V

RS485

2 NPN

2 relays (AC: 5A 250V DC: 10A 24V)

Material: ABS

Dimension: Φ92mm×198mm×M60

Electrical interface: M20X1.5

Installation: M60X2 or ￠61MM

Operating surroundings: normal temperature, normal pressure

Protection degree: IP65 (others optional)

q******w

The manufacture of Kaidi Sensors liquid level transmitter covers a few major steps. They include 3D graphic design, 3D printing, sample making, CNC milling, grinding, and so on. This product is marine degradable and compostable

q******k

During the design of Kaidi Sensors liquid level transmitter, several elements have been pondered over. They are the anatomy and movement of the foot, arch support, pressure distribution, various foot shapes, etc. The diameters and lengths of this product are customizable

s******o

Kaidi Sensors liquid level transmitter is of flexible design. It can be designed for front or back projection, the more common being front projection systems, which have the image source situated on the same side of the screen as the audience. Using this product can reduce the amount of plastic in the environment dramatically

i******g

The design of Kaidi Sensors liquid level transmitter is conceived after market research. This kind of research provides the theme that inspires the color, texture, image, and styles of the design of this product. It is made solely from kraft paper, containing no recycled content

i******z

Our liquid level transmitter has high control precision, good safety performance, and long service life. The surface of the processed metal tube is smooth and burr-free, and does not require secondary processing. It is deeply loved by customers in the market.

v******k

It is created according to strict performance standards. It is tested against other comparable products on the market and goes through real-world stimulation before going to the market. It is odor-free and will not impart any unpleasant flavor to food
